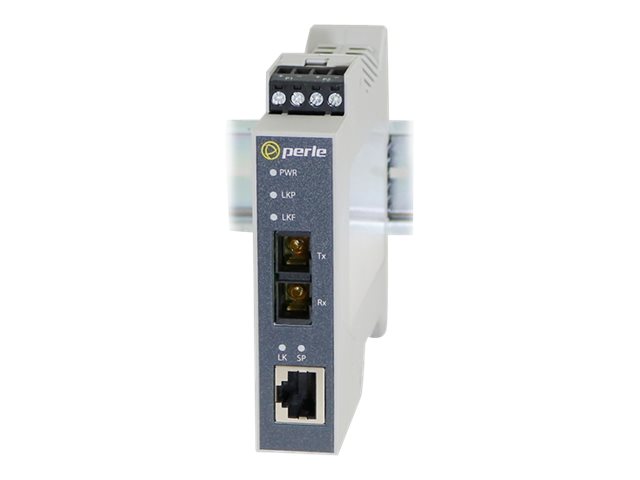

Perle SRS-1110-GSC10
MSRP$1,230.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Perle SRS-1110-GSC10
- Fiber media converter
- 1GbE
- 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX, 1000Base-LH
- RJ-45 / SC single-mode
- up to 10 km
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,230.00 |
| Mfr Part #: | 05092110 |
| SHI Part #: | 36823570 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Perle SRS-1110-GSC10 - Fiber media converter - 1GbE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX, 1000Base-LH - RJ-45 / SC single-mode - up to 10 km - 1310 nm |
| Manufacturer | Perle Systems |
| MSRP | $1,230.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10 cm |
| Dimensions & Weight / Height | 11.6 cm |
| Dimensions & Weight / Weight | 120 g |
| Dimensions & Weight / Width | 2.25 cm |
| Header / Brand | Perle |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | DIN rail mountable |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 10 cm |
| Height | 11.6 cm |
| Weight | 120 g |
| Width | 2.25 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 10.5 cm |
| Shipping Height | 3 cm |
| Shipping Weight | 170 g |
| Shipping Width | 14.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | DIN rail mountable |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | IEC 61850-3, IEEE 1613, EN 61000-4-16, ATEX Class 1 Zone 2, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, FCC CFR47 Part 15 A, EN 55032 Class A, CISPR 32 Class A, EN 55011, CISPR 11, ICES-003, EN 61000-6-4, CISPR 32:2015 Class A, EN 55032:2015 Class A, CISPR 24:2010, EN 55024:2010, EN 61000-3-2, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11, IEC/EN 61000-6-2, UL 61010-1, UL 61010-2-201, CB, EN 62368-1, UL 62368-1, CAN/CSA-C22.2 No. 62368-1-14, EN 60825-1:2007, FDA, CDRH, 21 CFR 1040.10, 21 CFR 1040.11, REACH, RoHS, WEEE, IP20, IEC 62368-1 Second Edition, EN 62368-1:2014 |
| MTBF | 577,432 hours |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-LX, 1000Base-LH |
| Compliant Standards | IEEE 802.3, IEEE 802.3xy |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Smart Link Pass-Through, Far End Fault (FEF), auto-uplink (auto MDI/MDI-X), auto-negotiation, full duplex mode, 10 KB Jumbo Frame, VLAN support, Loopback, 1.5 KV Magnetic Isolation, MAC address filtering, 1000KB packet buffer, plastic housing |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Power, test mode, link/activity, link pass-through, port transmission speed |
| Power | |
| Power Consumption Operational | 2.16 Watt |
| Voltage Required | DC 12/24/48 V |
