Advantech EKI-2541SL
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

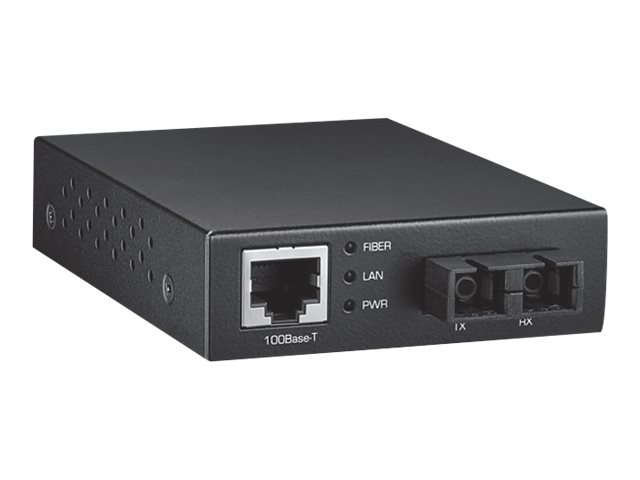

Advantech EKI-2541SL
- Fiber media converter
- 100Mb LAN
- 10Base-T, 100Base-FX, 100Base-TX
- RJ-45 / SC single-mode
- up to 40 km
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | EKI-2541SL-EU-AE |
| SHI Part #: | 36024049 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Advantech EKI-2541SL - Fiber media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-TX - RJ-45 / SC single-mode - up to 40 km - 1310 nm |
| Manufacturer | Advantech |
| MSRP | $96.40 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.12 cm |
| Dimensions & Weight / Height | 2.26 cm |
| Dimensions & Weight / Weight | 213 g |
| Dimensions & Weight / Width | 7.5 cm |
| Header / Brand | Advantech |
| Header / Country Kits | Europe |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 2-year warranty |
| Dimensions & Weight | |
| Depth | 10.12 cm |
| Height | 2.26 cm |
| Weight | 213 g |
| Width | 7.5 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Localization | Europe |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Miscellaneous | |
| Compliant Standards | EN55024, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC, RoHS, EN 61000-4-8, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 B Class A, LVD, IP30, EN 55032 Class A |
| MTBF | 1,776,203 hours |
| Networking | |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, reverse polarity protection |
| Max Transfer Distance | 40 km |
| Optical Wave Length | 1310 nm |
| Status Indicators | Power, LAN, fiber |
| Power | |
| Power Consumption Operational | 1.6 Watt |
| Power Device | External power adapter |
