Advantech EKI-2725FI
MSRP$305.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|

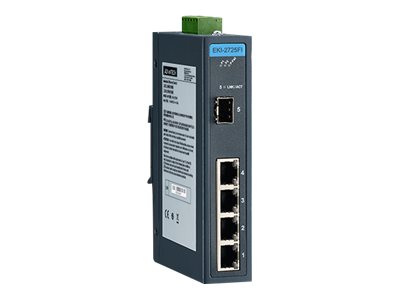

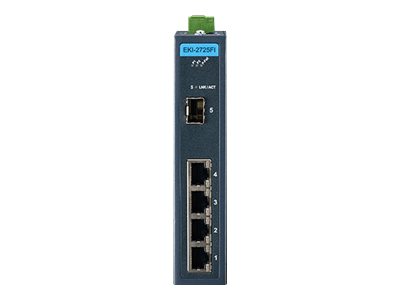

Advantech EKI-2725FI
- Switch
- unmanaged
- 4 x 10/100/1000 + 1 x Gigabit SFP
- DIN rail mountable, wall-mountable
- DC power
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $305.00 |
| Mfr Part #: | EKI-2725FI-AE |
| SHI Part #: | 35926983 |
| Category: | Switch matrixes |
| UNSPSC: | 43222612 |
| Manufacturer: | Advantech |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Switch matrixes |
| Description | Advantech EKI-2725FI - Switch - unmanaged - 4 x 10/100/1000 + 1 x Gigabit SFP - DIN rail mountable, wall-mountable - DC power |
| Manufacturer | Advantech |
| MSRP | $305.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.5 cm |
| Dimensions & Weight / Height | 14 cm |
| Dimensions & Weight / Weight | 450 g |
| Dimensions & Weight / Width | 3 cm |
| Header / Brand | Advantech |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor |
|
| Networking / Ports Qty | 5 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 9.5 cm |
| Height | 14 cm |
| Weight | 450 g |
| Width | 3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Max Storage Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity | Packet buffer size: 1 Mbit |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x |
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), broadcast storm protection, metal housing, power failure relay |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 2K entries |
| Performance | Switch fabric speed: 10 Gbps |
| Ports | 4 x 10/100/1000 + 1 x Gigabit SFP |
| Status Indicators | Collision status, port transmission speed, port duplex mode, alarm, link/activity |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, UL 60950, EN 61000-6-2, RoHS, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, cULus, IP30 |
| MTBF | 1,868,330 hours |
| Power | |
| Features | Power Polarity Reverse Protect, Overload Current Resetable Fuse |
| Power Consumption Operational | 2.5 Watt |
| Power Redundancy | Yes |
| Voltage Required | DC 12 - 48 V |
