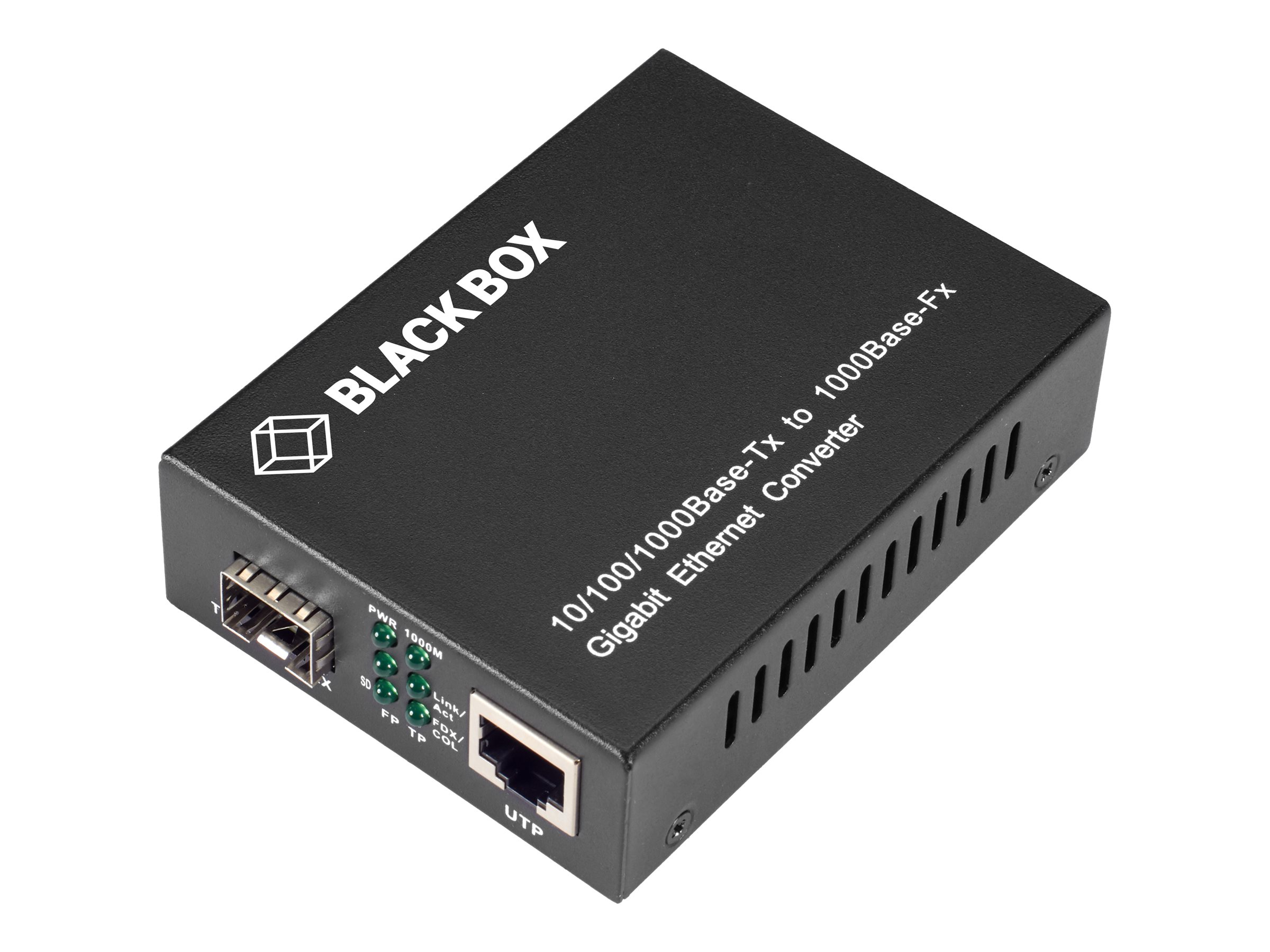

Black Box Pure Networking 1000BASE-TX Media Converter
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Black Box Pure Networking 1000BASE-TX Media Converter
- Fiber media converter
- 1GbE
- 10Base-T, 1000Base-TX, 100Base-TX, 1000Base-X
- RJ-45 / SFP (mini-GBIC)
- up to 120 km
| Additional Details | |
|---|---|
| Mfr Part #: | LGC210A |
| SHI Part #: | 35745113 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Black Box Pure Networking 1000BASE-TX Media Converter - Fiber media converter - 1GbE - 10Base-T, 1000Base-TX, 100Base-TX, 1000Base-X - RJ-45 / SFP (mini-GBIC) - up to 120 km |
| Manufacturer | Black Box |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9.3 cm |
| Dimensions & Weight / Height | 2.5 cm |
| Dimensions & Weight / Weight | 300 g |
| Dimensions & Weight / Width | 6.8 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 9.3 cm |
| Height | 2.5 cm |
| Weight | 300 g |
| Width | 6.8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, RoHS |
| Networking | |
| Cabling Type | 10Base-T, 1000Base-TX, 100Base-TX, 1000Base-X |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Full duplex capability |
| Max Transfer Distance | 120 km |

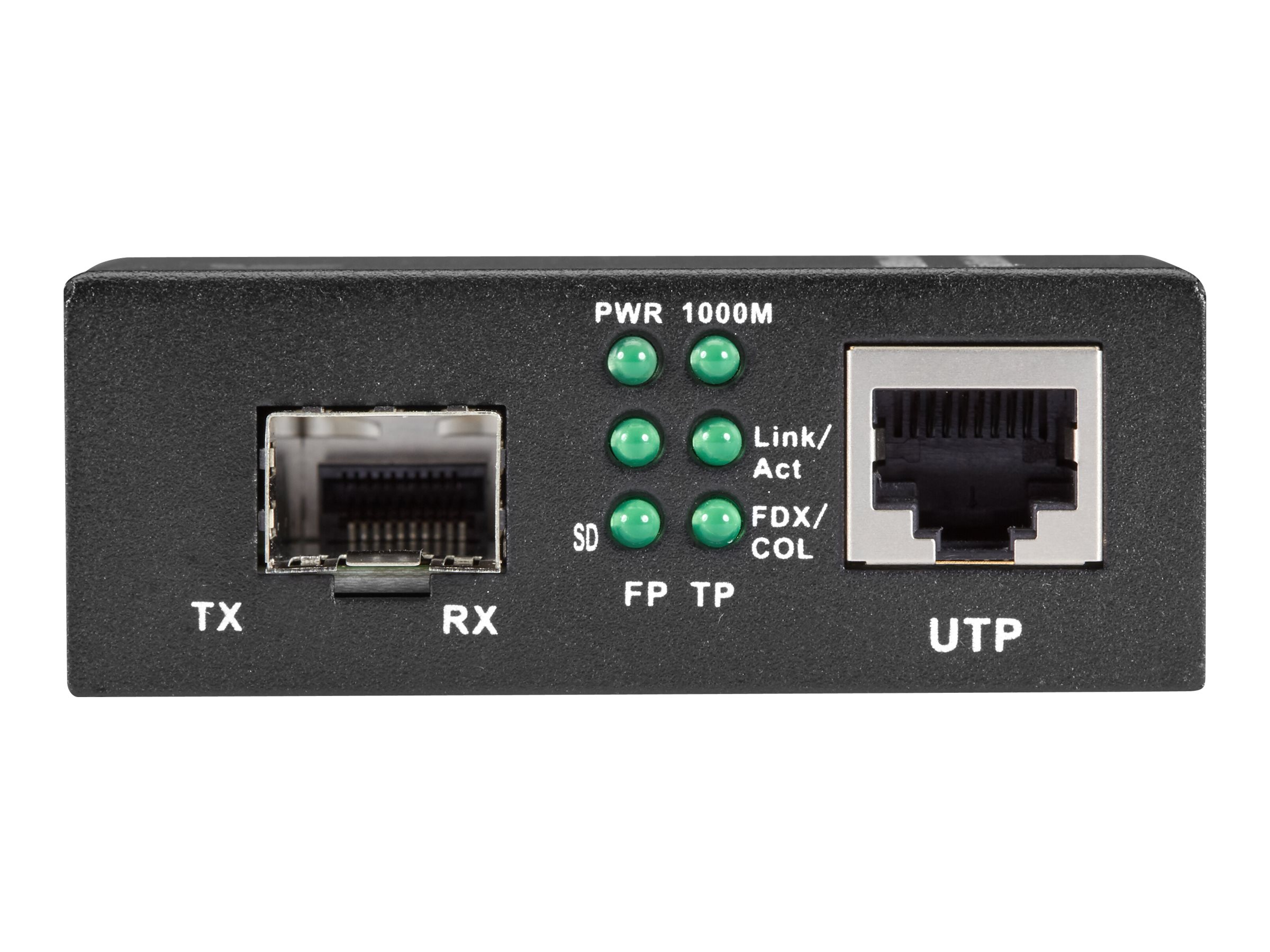

| Status Indicators | Power, 1000M device connected, link/activity |
| Power | |
| Power Device | External power adapter |
