SonicWall NSa 6600 - Advanced Edition
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

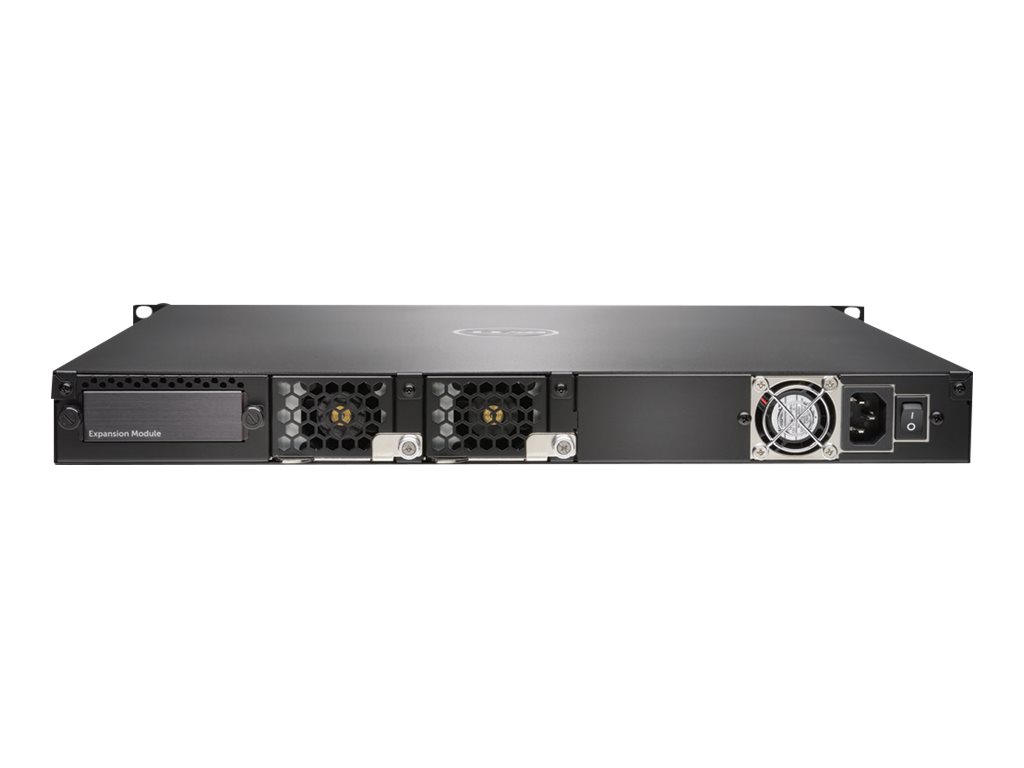

SonicWall NSa 6600 - Advanced Edition
- security appliance
- with 3 years TotalSecure
- 10GbE
- 1U
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | 02-SSC-0407 |
| SHI Part #: | 35670800 |
| Category: | Firewall appliances |
| UNSPSC: | 43222501 |
| Manufacturer: | SonicWall |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Firewall appliances |
| Description | SonicWall NSa 6600 - Advanced Edition - security appliance - with 3 years TotalSecure - 10GbE - 1U - rack-mountable |
| Manufacturer | SonicWall |
| UNSPSC | 43222501 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43 cm |
| Dimensions & Weight / Height | 4.5 cm |
| Dimensions & Weight / Weight | 6.77 kg |
| Dimensions & Weight / Width | 48.5 cm |
| Header / Brand | SonicWALL |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Security appliance |
| Packaged Quantity | 1 |
| Communications | |
| Supported Flash Memory Cards | SD Memory Card |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 11.85 kg |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces |
|
| General | |
| Bundled Services | 3 years TotalSecure |
| Depth | 43 cm |
| Device Type | Security appliance |
| Height | 4.5 cm |
| Height (Rack Units) | 1U |
| Weight | 6.77 kg |
| Width | 48.5 cm |
| IP Telephony | |
| IP Telephony Features | VoIP gatekeeper support, VoIP outbound bandwidth management |
| VoIP Protocols | SIP, H.323 v3, H.323 v4, H.323 v1, H.323 v2, H.323 v5 |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, UL, TUV GS, C-Tick, BSMI, cUL, CB, EMC, RoHS, WEEE, ANATEL, REACH, KCC Class A, LVD, VCCI Class A, MSIP Class A, CoC, CU |
| MTBF | 13.3 years |
| Networking | |
| Authentication Method | RADIUS, internal user database, XAUTH authentication |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.1p |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Encryption Algorithm | DES, Triple DES, MD5, SHA-1, 128-bit AES, 192-bit AES, 256-bit AES |
| Features | NAT support, VPN support, load balancing, Stateful Packet Inspection (SPI), DoS attack prevention, Intrusion Prevention System (IPS), URL filtering, Deep Packet Inspection (DPI), DDos attack prevention, Stateful switchover (SSO), anti-spam protection, anti-malware protection, Quality of Service (QoS), RADIUS support, DHCP server, DNS proxy, DHCP relay, NetFlow, IPFIX, 2 fans |
| Form Factor | Rack-mountable |
| Network / Transport Protocol | TCP/IP, PPTP, UDP/IP, L2TP, ICMP/IP, IPSec, PPPoE, DHCP |
| Performance |
|
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, HTTPS, CLI |
| Routing Protocol | OSPF, RIP-1, RIP-2, BGP, static IP routing, policy-based routing (PBR) |
| Power | |
| Installed Qty | 1 |
| Max Supported Qty | 1 |
| Power Consumption Operational | 113.1 Watt |
| Power Device | Internal power supply |
| Power Provided | 250 Watt |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Software / System Requirements | |
| OS Provided | SonicOS 6.5 |
