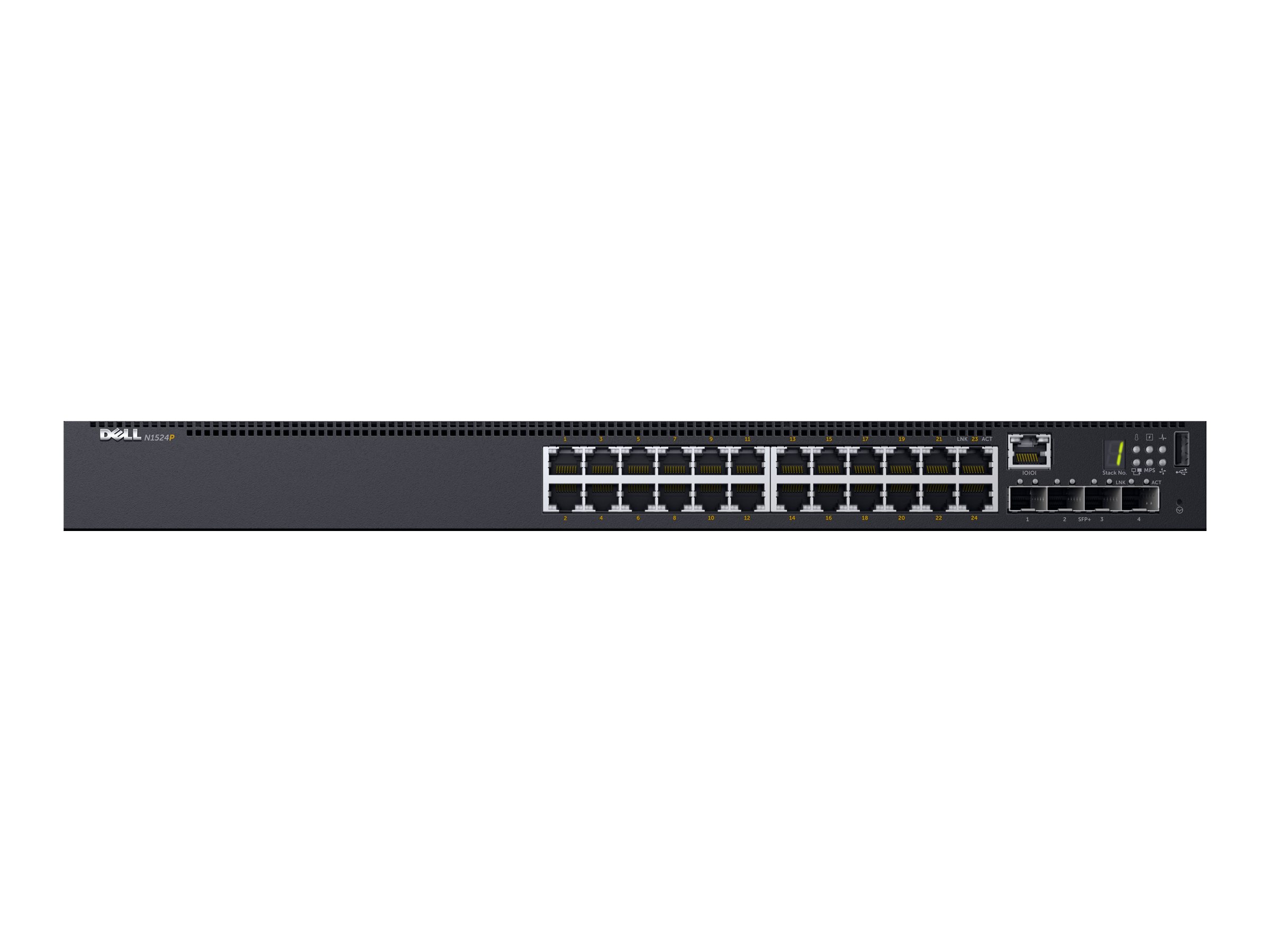

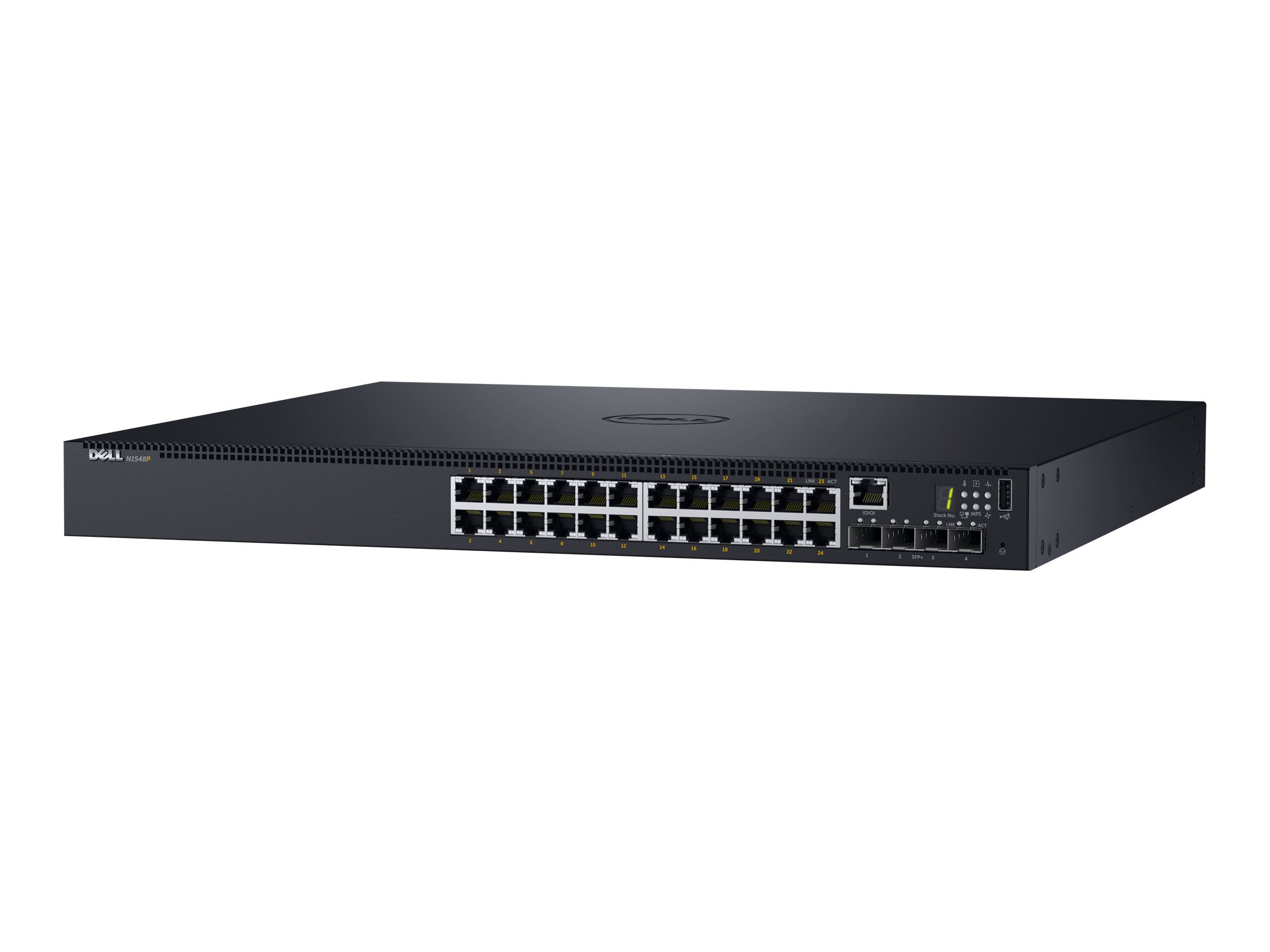

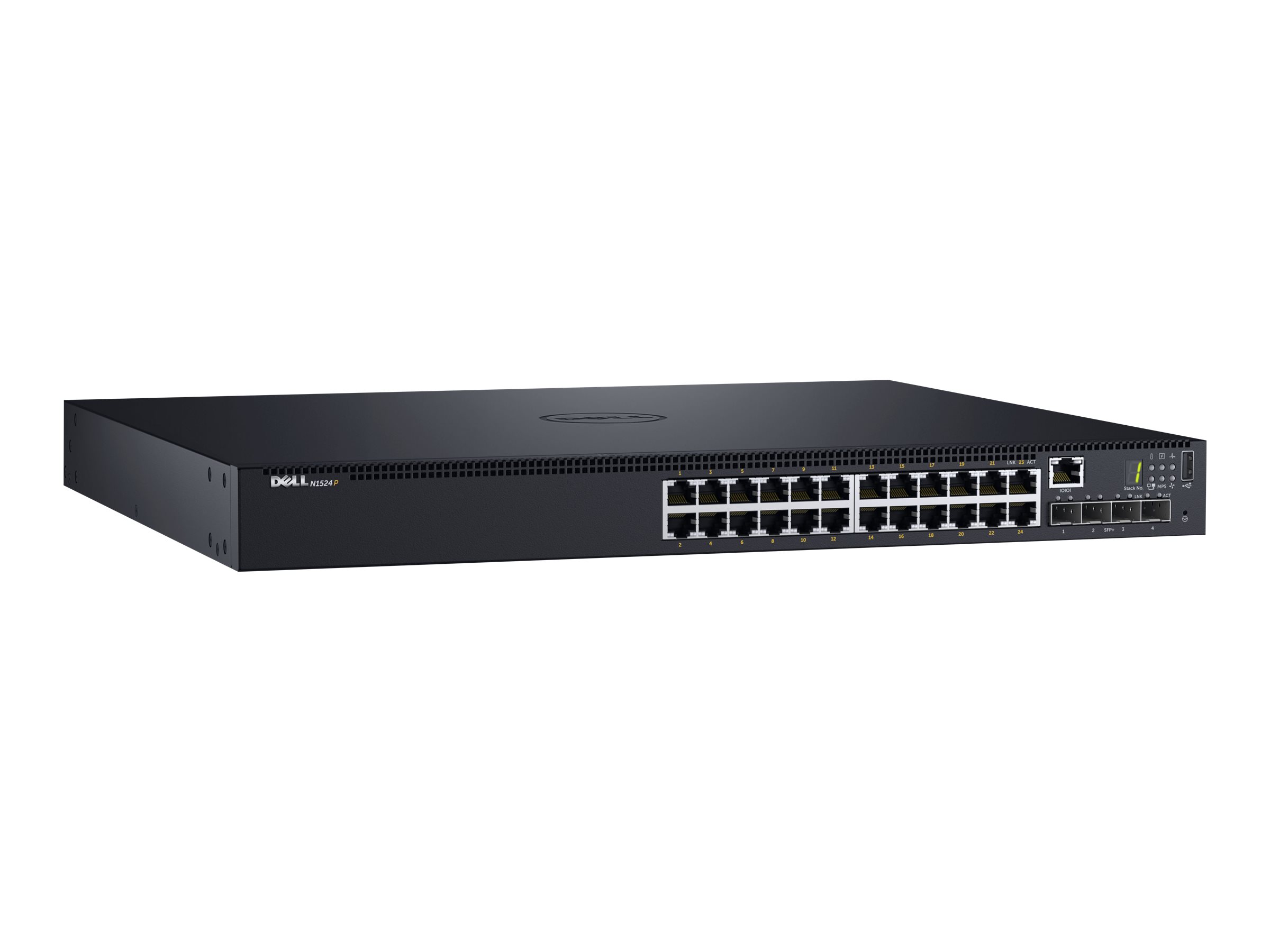

Dell Networking N1524P
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Dell Networking N1524P
- Switch
- L2+
- managed
- 24 x 10/100/1000 + 4 x 10 Gigabit SFP+
- front to back airflow
- rack-mountable
- PoE+ (30.8 W)
- with 3 Years ProSupport with Next Business Day On-Site Service
| Additional Details | |
|---|---|
| Mfr Part #: | 463-7265PSP |
| SHI Part #: | 35227329 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Dell |
| Product Type: | Hardware |
Networking and Security
- 10 GigE
- 10GBase-SR
- up to 300 m
- 850 nm
- for Networking N1148; PowerSwitch S4112, S5212, S5232, S5296; Networking N3024, N3048, X1052
MSRP $218.43
$37.00
- 1GbE
- 1000Base-LX
- up to 10 km
- 1310 nm
- for Networking N1148; PowerSwitch S4112, S5212, S5232, S5296; PowerSwitch N1524
MSRP $730.00
$126.00
- 10 GigE
- 10GBase-LR
- up to 10 km
- 1310 nm
- for Networking N1148; PowerSwitch S4112, S5212; Networking N2128, N3024, N3048, N3132, X1052
MSRP $2,500.00
$332.00
| General Information | |
|---|---|
| Category | Network switches |
| Description | Dell Networking N1524P - Switch - L2+ - managed - 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ - front to back airflow - rack-mountable - PoE+ (30.8 W) - with 3 Years ProSupport with Next Business Day On-Site Service |
| Manufacturer | Dell |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 38.7 cm |
| Dimensions & Weight / Height | 4.32 cm |
| Dimensions & Weight / Weight | 5.8 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | Dell |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 38.7 cm |
| Height | 4.32 cm |
| Weight | 5.8 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 95% |
| Humidity Range Storage | 85% |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 65 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Bundled Services | 3 Years ProSupport with Next Business Day On-Site Service |
| Capacity |
|
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az |
| Device Type | Switch - 24 ports - L2+ - managed - stackable |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Encryption Algorithm | MD5, AES, SSL, TLS |
| Features | Flow control, auto-negotiation, ARP support, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, RSTP support, ACL support, QoS, PVST+, IPv4 support, LLDP support, LACP, Energy Efficient Ethernet, MIB, GVRP, dual firmware images, NDP, redundant fans, Protocol-based VLANs support |
| Flash Memory | 256 MB |
| MAC Address Table Size | 16000 entries |
| Performance |
|
| PoE Budget | 30.8 W |
| Ports | 24 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 1 GB |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, TFTP |
| Routing Protocol | RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, cUL, GS, RoHS, WEEE, REACH, ICES Class A, VCCI Class A, EAC, CCC Class A |
| Rack Mounting Kit | Included |
| Power | |
| Installed Qty | 1 |
| Power Device | Internal power supply |
| Power Provided | 600 Watt |
