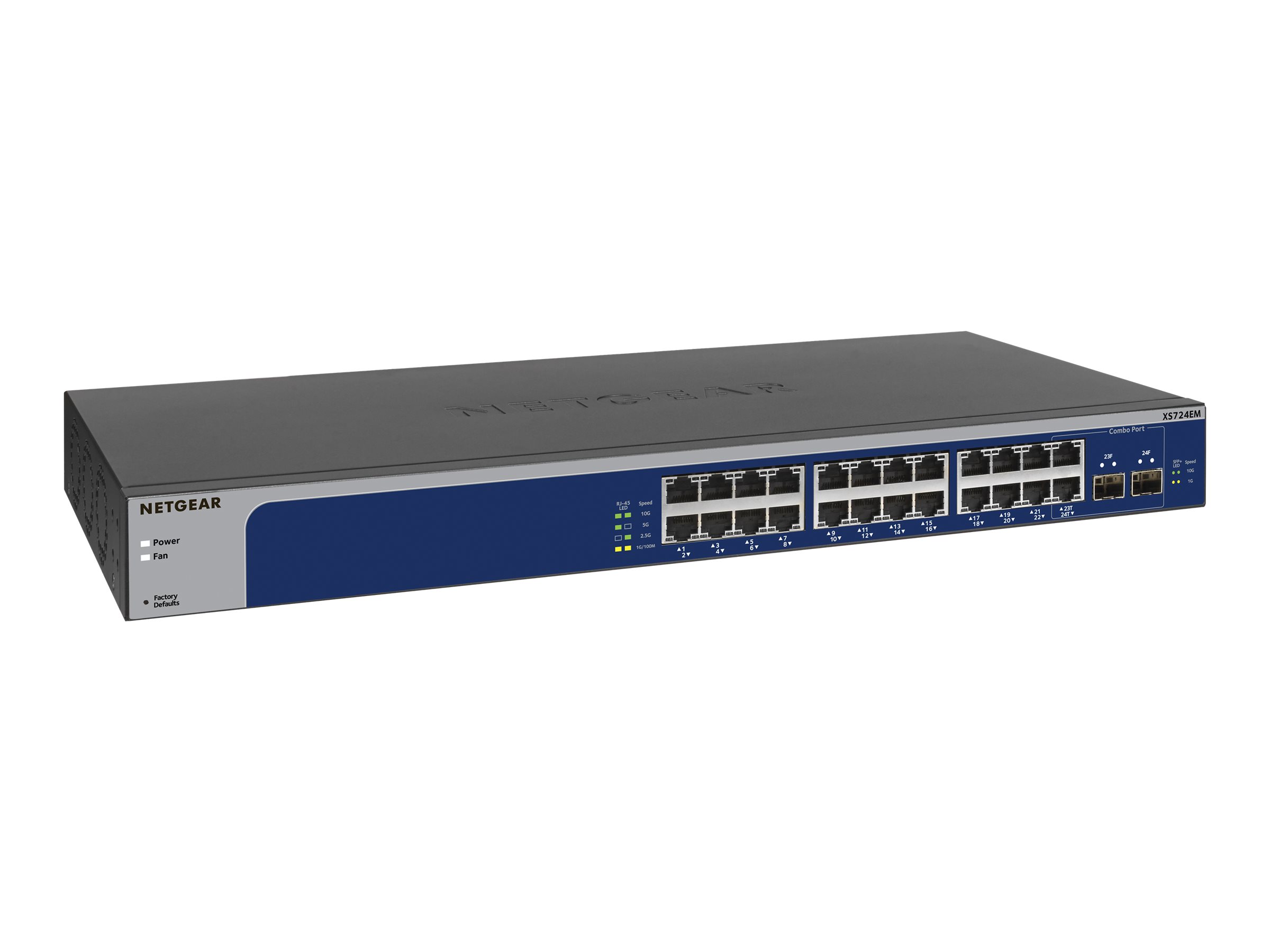

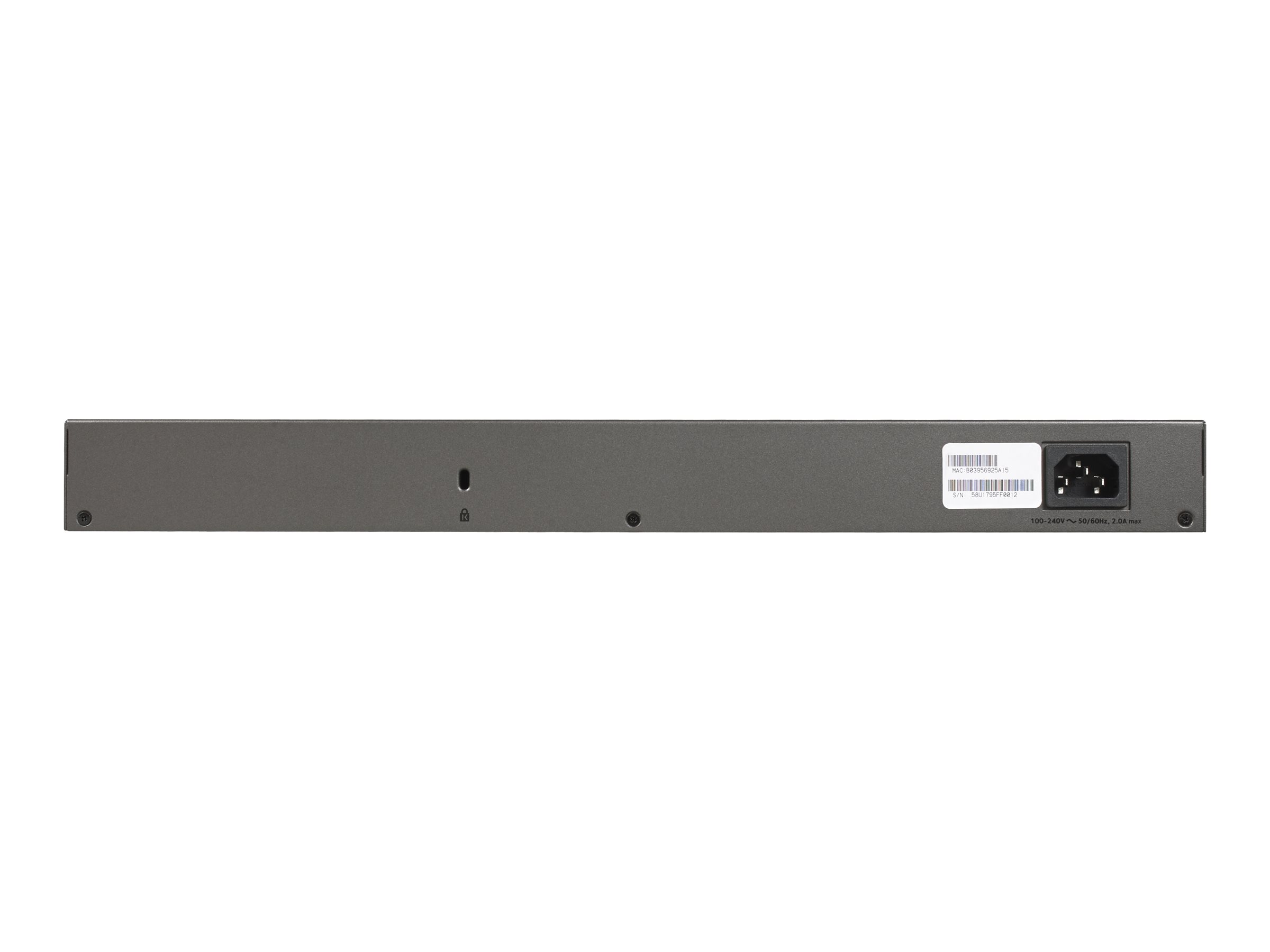

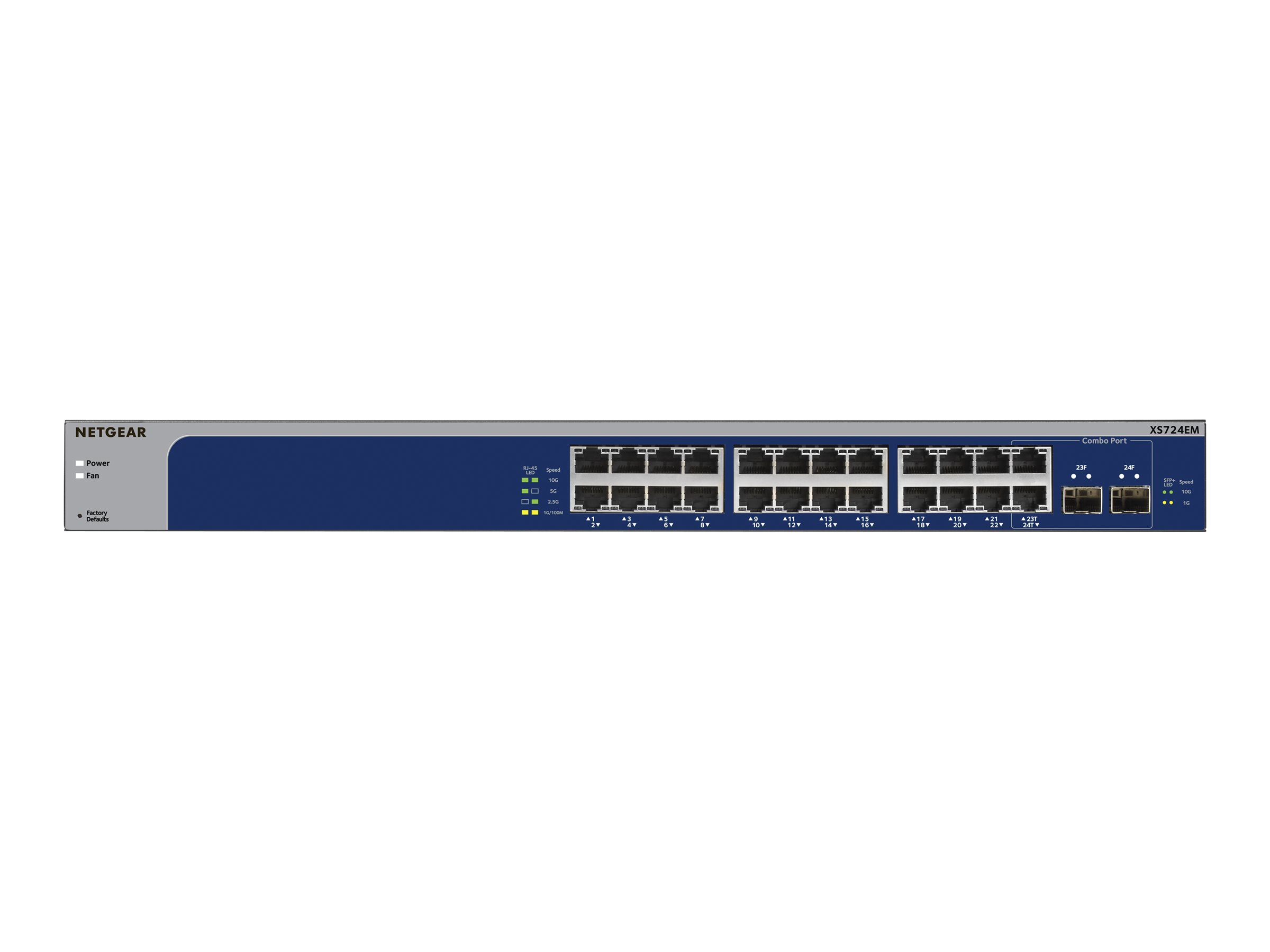

NETGEAR Plus XS724EM
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
NETGEAR Plus XS724EM
- Switch
- managed
- 22 x 100/1000/2.5G/5G/10GBase-T + 2 x combo 10 Gigabit SFP+
- desktop, rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | XS724EM-100NAS |
| SHI Part #: | 34641106 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | NETGEAR |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | NETGEAR Plus XS724EM - Switch - managed - 22 x 100/1000/2.5G/5G/10GBase-T + 2 x combo 10 Gigabit SFP+ - desktop, rack-mountable |
| Manufacturer | NETGEAR |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20.4 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 3.72 kg |
| Dimensions & Weight / Width | 44 cm |
| Header / Brand | NETGEAR |
| Header / Country Kits |
|
| Miscellaneous / Product Color |
|
| Networking / Form Factor |
|
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 20.4 cm |
| Height | 4.3 cm |
| Weight | 3.72 kg |
| Width | 44 cm |
| Environmental Parameters | |
| Humidity Range Operating | 90% (non-condensing) |
| Humidity Range Storage | 95% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ae, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz |
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Desktop, rack-mountable 1U |
| Features | VLAN support, IGMP snooping, DoS attack prevention, port mirroring, store and forward, Broadcast Storm Control, half duplex mode, full duplex mode, Multicast Storm Control, Unicast Storm Control, firmware upgradable, QoS, LACP, DHCP client, Energy Efficient Ethernet, loop prevention, Multicast filtering function, CoS, ToS, DSCP support, 3 fans, 3MB packet buffer, cable test, administrator's password, WRR, VLAN Tagging, port trunking |
| Jumbo Frame Support | 9000 bytes |
| MAC Address Table Size | 32K entries |
| Performance |
|
| Ports | 22 x 100/1000/2.5G/5G/10GBase-T + 2 x combo 10 Gigabit SFP+ |
| Remote Management Protocol | HTTP, TFTP |
| Routing Protocol | IGMPv2, IGMP, IGMPv3 |
| Status Indicators | Power, link/activity/speed |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | UL 60950-1, KC, CNS 13438, EN 55024:2010, FCC CFR47 Part 15 B Class A, EN 55032:2012+AC:2013 Class A, CNS 14336-1, ANSI C63.4-2014, AS/NZS 60950-1:2015, ICES-003:2016 issue 6 Class A, EN 61000-3-2:2014 Class A, CAN/CSA-C22.2 No. 60960-1-07, AS/NZS CISPR32:2013 Class A, EN 6100-3-3:2013, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, VCCI-CISPR 32:2016, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Localization | Latin America, North America |
| MTBF | 830,493 hours |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 150.52 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
