Ixia XGS2-HSL - High Speed
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

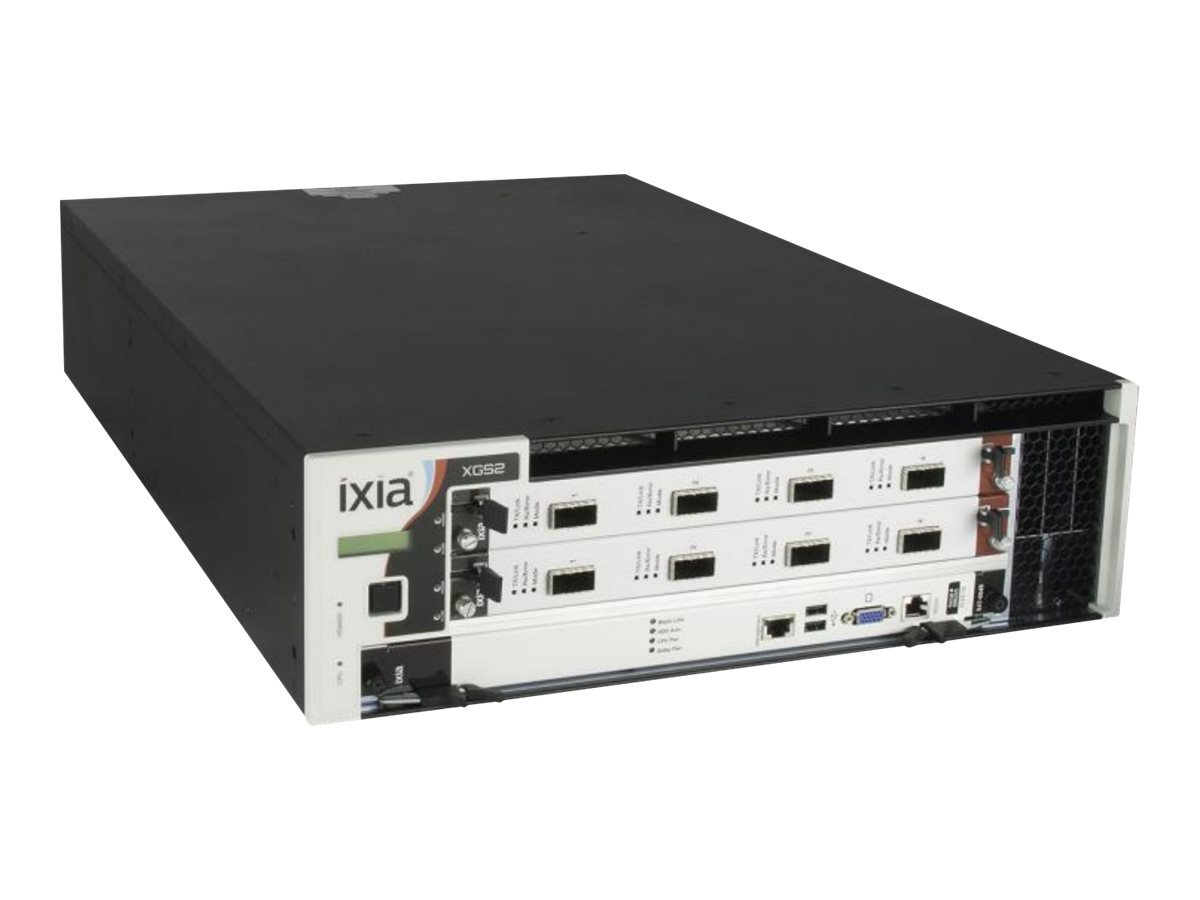

Ixia XGS2-HSL - High Speed
- modular expansion base
- front to back airflow
- 3U
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | 940-0014 |
| SHI Part #: | 34432394 |
| Category: | Network chassis |
| UNSPSC: | 43201602 |
| Manufacturer: | Ixia |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network chassis |
| Description | Ixia XGS2-HSL - High Speed - modular expansion base - front to back airflow - 3U - rack-mountable |
| Manufacturer | Ixia |
| UNSPSC | 43201602 |
| Main Specifications | |
| Dimensions & Weight / Depth | 67.3 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Weight | 25 kg |
| Dimensions & Weight / Width | 44.5 cm |
| Header / Brand | Ixia |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Modular expansion base |
| Packaged Quantity | 1 |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 32.4 kg |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 85% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot |
| Interfaces |
|
| General | |
| Depth | 67.3 cm |
| Device Type | Modular expansion base |
| Height | 13 cm |
| Height (Rack Units) | 3U |
| Weight | 25 kg |
| Width | 44.5 cm |
| Miscellaneous | |
| Compliant Standards | ICES-003, UL 60950-1, CSA C22.2 No. 60950-1-07, FCC Part 15 B Class A, EN 61000-3-3:2008, EN 61000-3-2:2006+A1:2009+A2:2009, RoHS 2011/65/EU, EMC 2004/108/EC, LVD 2006/95/EC, WEEE 2002/96/EC, EN 55024:2010, EN 55022:2010, IEC60950-1:2005, Second edition + Am1:2009 + Am2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
| Included Accessories | Fan assembly module, standard star topology sync module, high performance controller module |
| Networking | |
| Airflow Direction | Front to back airflow |
| Connectivity Technology | Wired |
| Features | Modular design, hot swap module replacement, fan tray |
| Form Factor | Rack-mountable |
| Status Indicators | Power, LCD display, standby, status, master, external clock |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
