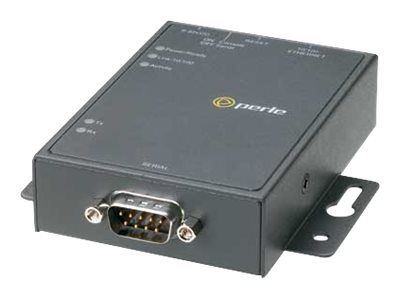

Perle IOLAN SDG1 TX - Device server
MSRP$895.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Perle IOLAN SDG1 TX - Device server
- 1GbE, RS-232, RS-422, RS-485
- DC power
- wall / DIN rail mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $895.00 |
| Mfr Part #: | 04031880 |
| SHI Part #: | 34426722 |
| Category: | Multistation access units (MAUs) |
| UNSPSC: | 43222630 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Multistation access units (MAUs) |
| Description | Perle IOLAN SDG1 TX - Device server - 1GbE, RS-232, RS-422, RS-485 - DC power - wall / DIN rail mountable |
| Manufacturer | Perle Systems |
| MSRP | $895.00 |
| UNSPSC | 43222630 |
| Main Specifications | |
| Dimensions & Weight / Depth | 9 cm |
| Dimensions & Weight / Height | 2.2 cm |
| Dimensions & Weight / Weight | 230 g |
| Dimensions & Weight / Width | 6.4 cm |
| Header / Brand | Perle |
| Miscellaneous / Product Color | Black |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | Wall / DIN rail mountable |
| Networking / Type | Device server |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 17 cm |
| Shipping Height | 7 cm |
| Shipping Weight | 420 g |
| Shipping Width | 26 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 74 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 9 cm |
| Device Type | Device server |
| Height | 2.2 cm |
| Weight | 230 g |
| Width | 6.4 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC Class B certified, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, WEEE, REACH, IP40, Directive 2011/65/EU, EN 61000-3-3:2013, CISPR 24:2010, EN 55024:2010, EN 61000-3-2:2014, IEC 62368-1, EN 55032:2015 Class A, CISPR 32:2015 Class A, EN 62368-1:2014, ICES-003:2016, CAN/CSA-C22.2 No. 62368-1, UL 62368-1 |
| MTBF | 303,984 hours |
| Networking | |
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+, LDAP |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, RS-422, RS-485 |
| Features | Flow control, auto-sensing per device, DHCP support, BOOTP support, auto-uplink (auto MDI/MDI-X), Syslog support, IPv6 support, RAW TCP, wall mountable, 15 KV Electrostatic Discharge Protection, IPv4 support, 1.5 KV Magnetic Isolation, metal housing, TrueSerial technology, TruePort |
| Form Factor | Wall / DIN rail mountable |
| Network / Transport Protocol | TCP/IP, UDP/IP, ICMP/IP, ARP, BOOTP, DHCP, RARP |
| Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS, SSH |
| Status Indicators | Power, transmit, receive, link/activity, ready |
| Power | |
| Power Consumption Operational | 1.9 Watt |
| Voltage Required | DC 12/24 V |
| Processor / Memory / Storage | |
| Flash Memory | 4 MB |
| Processors Installed | 1 x ARM 600 MHz |
| RAM | 512 MB |
