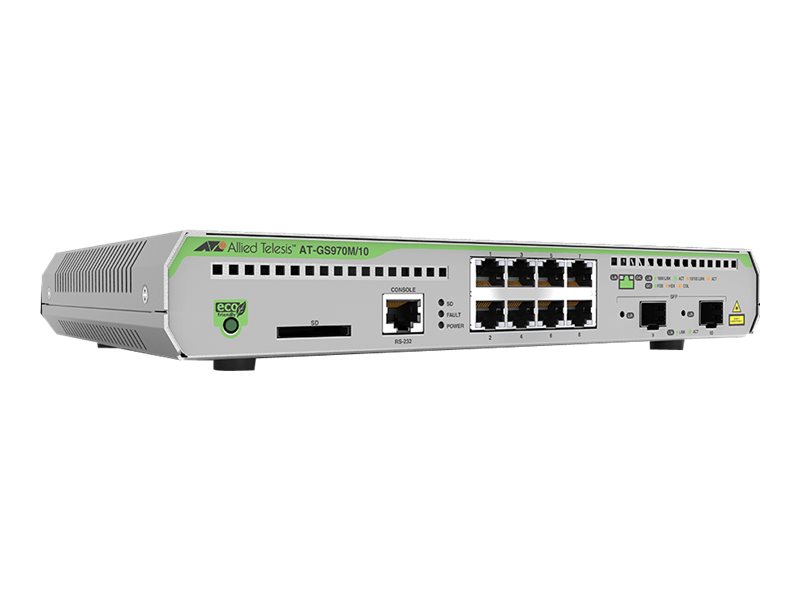

Allied Telesis CentreCOM AT-GS970M/10


MSRP$540.00
$492.00
Allied Telesis CentreCOM AT-GS970M/10

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink)
  • desktop
Allied Telesis CentreCOM AT-GS970M/10
  • Switch
  • L3
  • managed
  • 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink)
  • desktop
  Additional Details
Price: $492.00
MSRP: $540.00
Mfr Part #: AT-GS970M/10-10
SHI Part #: 34350403
Category: Network switches
UNSPSC: 43222612
Manufacturer: Allied Telesis
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionAllied Telesis CentreCOM AT-GS970M/10 - Switch - L3 - managed - 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) - desktop
ManufacturerAllied Telesis
MSRP$540.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth18 cm
Dimensions & Weight / Height4.25 cm
Dimensions & Weight / Weight1.5 kg
Dimensions & Weight / Width26.5 cm
Header / BrandAllied Telesis
Miscellaneous / Product ColorWhite
Networking / Form FactorDesktop
Networking / Ports Qty10
Networking / TypeSwitch
Packaged Quantity1
Dimensions & Weight
Depth18 cm
Height4.25 cm
Weight1.5 kg
Width26.5 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-20 °C
Expansion / Connectivity
Interfaces
  • 8 x 1000Base-T RJ-45
  • 2 x 1000Base-X SFP uplink
  • 1 x console RJ-45
General
Authentication MethodRADIUS, TACACS+, Extensible Authentication Protocol (EAP)
Built-in DevicesSD card reader, SDHC card reader
CapacityPriority queues: 8
Compliant StandardsIEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ac, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 802.1AX
Device TypeSwitch - 10 ports - L3 - managed
Enclosure TypeDesktop
Encryption AlgorithmDES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 2.0, PEAP, TTLS, DSA, ECDSA, 128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, RNG, 224-bit SHA-2
FeaturesFlow control, DHCP support, auto-negotiation, BOOTP support, ARP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, full duplex mode, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LLDP support, Link Aggregation Control Protocol (LACP), SNMP trap, Energy Efficient Ethernet, Management Information Base (MIB), Network Access Control (NAC), loop prevention, 802.1x authentication, 1.5MB packet buffer, IP source guard, Ethernet Protection Switched Ring (EPSRing), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), Control Plane Prioritization (CPP), Secure Copy (SCP), Allied Telesis Management Framework (AMF), Digital Diagnostics Monitoring (DDM), Network Timing Protocol (NTP), Authentication, Authorization and Accounting (AAA)
Flash Memory64 MB
Jumbo Frame Support10000 bytes
MAC Address Table Size16K entries
Performance
  • Switching fabric bandwidth: 20 Gbps
  • Forwarding performance: 14.9 Mpps
Ports8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink)
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI, SNMP 6, SSH 6
Routing ProtocolRIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLDv2, MLD, CIDR
Status IndicatorsStatus
SubtypeGigabit Ethernet
Miscellaneous
Compliant StandardsFCC Class A certified, UL, TUV, cUL, EN55024, EN55022 Class A, RoHS, UL 60950-1, EN 60950-1, cULus, EN 60825-1, HMAC, VCCI Class A, China RoHS, DRBG, EN61000-3-2, EN61000-3-3, CISPR Class A
Power
Power Consumption Operational16 Watt
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V
