Opengear IM7208-2-DAC-LMCR

Login for Price
Opengear IM7208-2-DAC-LMCR
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Console server
  • 8 ports
  • RS-232
  • W-CDMA 850/1900/2100 / GSM 850/900/1800/1900 / LTE 700
  • 1U

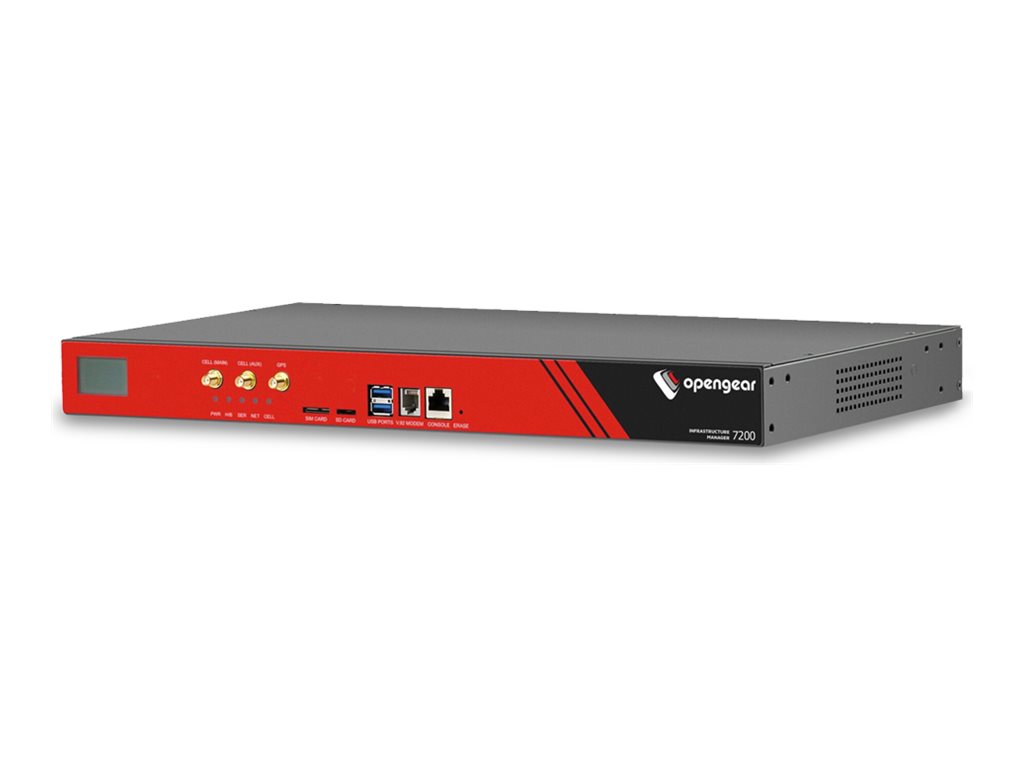

Opengear IM7208-2-DAC-LMCR
  • Console server
  • 8 ports
  • RS-232
  • W-CDMA 850/1900/2100 / GSM 850/900/1800/1900 / LTE 700
  • 1U
  • Rogers
  Additional Details
Mfr Part #: IM7208-2-DAC-LMCR-US
SHI Part #: 33948567
Category: Multistation access units (MAUs)
UNSPSC: 43222630
Manufacturer: Opengear
Product Type: Hardware

Power Cables

Opengear - Power cable
Opengear - Power cable
  • 1.8 m
  • black
  • Europe
  • for Opengear CM7116, CM7148, IM7208, IM7216, IM7232, IM7248, OM2216, OM2224, OM2232, OM2248
$12.00
Opengear - Power cable
Opengear - Power cable
  • GB 2099
  • 1.8 m
  • China
  • for Opengear CM7116, CM7148, IM7208, IM7216, IM7232, IM7248, OM2216, OM2224, OM2232, OM2248
$12.00
Opengear - Power cable
Opengear - Power cable
  • 1.8 m
  • black
  • Australia
  • for Opengear CM7116, CM7148, IM7208, IM7216, IM7232, IM7248, OM2216, OM2224, OM2232, OM2248
$12.00
General Information
CategoryMultistation access units (MAUs)
DescriptionOpengear IM7208-2-DAC-LMCR - Console server - 8 ports - RS-232 - W-CDMA 850/1900/2100 / GSM 850/900/1800/1900 / LTE 700 - 1U - Rogers
ManufacturerOpengear
UNSPSC43222630
Main Specifications
Dimensions & Weight / Depth25.4 cm
Dimensions & Weight / Height4.5 cm
Dimensions & Weight / Weight4.5 kg
Dimensions & Weight / Width44 cm
Header / BrandOpengear
Header / Country Kits
  • Canada
  • United States
Networking / Connectivity TechnologyWired
Networking / Data Link ProtocolRS-232
Networking / Data Transfer Rate230.4 Kbps
Networking / Form FactorExternal
Networking / Ports Qty8
Networking / TypeConsole server
Packaged Quantity1
Antenna
AntennaExternal detachable
Communications
Cellular BandW-CDMA 850/1900/2100 / GSM 850/900/1800/1900 / LTE 700
Cellular ProtocolGSM, GPRS, EDGE, WCDMA, HSPA+, LTE
Mobile Broadband AccessYes
Protocols & SpecificationsITU V.92
Supported Flash Memory CardsSD Memory Card
Environmental Parameters
Humidity Range Operating5 - 90%
Max Operating Temperature50 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Interfaces
  • 8 x RS-232 - RJ-45
  • 2 x 1000Base-T - RJ-45
  • 2 x Ethernet 1000 - SFP (mini-GBIC)
  • 2 x USB 3.0 - Type A
  • 1 x modem - RJ-11
  • 4 x antenna - SMA
  • 1 x console - RJ-45
General
Built-in DevicesStatus LCD, GPS
Depth25.4 cm
Device TypeConsole server
Height4.5 cm
Height (Rack Units)1U
LocalizationCanada, United States
Service ProviderRogers
Weight4.5 kg
Width44 cm
Miscellaneous
Cables Included
  • 2 x network cable
  • Serial adapter
Compliant StandardsTUV, C-Tick, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, UL 1950, R&TTE, RoHS, FIPS 140-2, A-Tick, FCC Part 15 B Class A, PTCRB, ICES-003 issue 4 Class A, AS/NZS CISPR22:2004 Class A, EN55022:1998 + A1:2000 + A2:2003 Class A, EN 55024:1998+A1:2001+A2:2003, EN 301 511
Included AccessoriesRack mount kit
MTBF100,000 hours
Networking
Authentication MethodKerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP, Active Directory
Connectivity TechnologyWired
Data Link ProtocolRS-232
Data Transfer Rate230.4 Kbps
Encryption AlgorithmSSL, FIPS 140-2
FeaturesVPN support, Syslog support, IP address filtering, Access Control List (ACL) support, DHCP server, FTP server, port forwarding, Stateful Packet Inspection Firewall (SPIF), TFTP server, 4KV ESD Protector, Zero-touch provisioning (ZTP), 1500V isolation
Form FactorExternal
Network / Transport ProtocolNTP, IPSec, DHCP, DDNS
Ports Qty8
Remote Management ProtocolSNMP, HTTPS, TFTP, SSH
Power
Installed Qty2
Max Supported Qty2
Power Consumption Operational30 watt
Power DeviceInternal power supply
Power RedundancyYes
Voltage RequiredAC 120/230 V
Processor / Memory / Storage
Flash Memory8 GB
Max Supported Qty1
Processors Installed1 x Marvell 88F6283 1 GHz
RAM256 MB SDRAM
Software / System Requirements
OS ProvidedLinux
