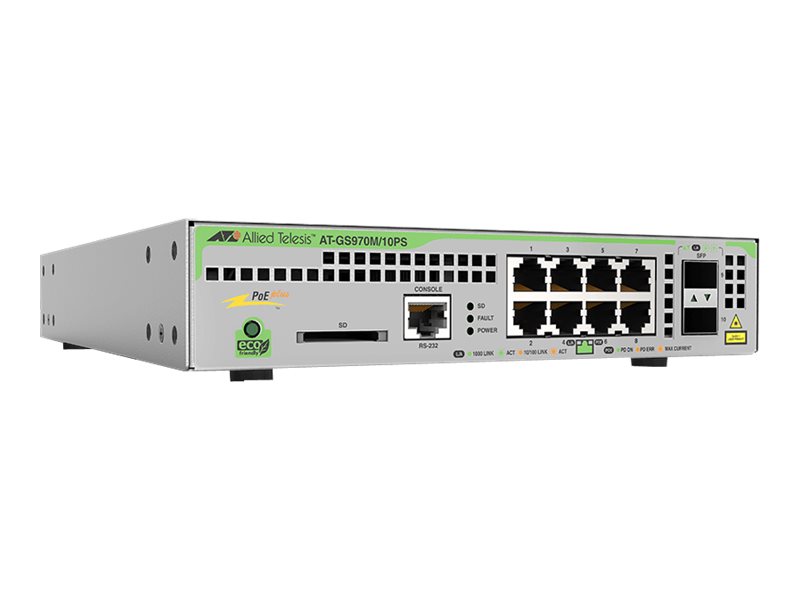

Allied Telesis CentreCOM AT-GS970M/10

MSRP$972.00
$784.00
Allied Telesis CentreCOM AT-GS970M/10
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink)
  • rack-mountable
Allied Telesis CentreCOM AT-GS970M/10
  • Switch
  • L3
  • managed
  • 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink)
  • rack-mountable
  • PoE+ (124 W)
  Additional Details
Price: $784.00
MSRP: $972.00
Mfr Part #: AT-GS970M/10PS-R-10
SHI Part #: 33878209
Category: Network switches
UNSPSC: 43222612
Manufacturer: Allied Telesis
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionAllied Telesis CentreCOM AT-GS970M/10 - Switch - L3 - managed - 8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink) - rack-mountable - PoE+ (124 W)
ManufacturerAllied Telesis
MSRP$972.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth27.5 cm
Dimensions & Weight / Height4.25 cm
Dimensions & Weight / Weight2.1 kg
Dimensions & Weight / Width21 cm
Header / BrandAllied Telesis
Miscellaneous / Product ColorGray
Networking / Form FactorRack-mountable
Networking / Ports Qty8
Networking / TypeSwitch
Packaged Quantity1
Dimensions & Weight
Depth27.5 cm
Height4.25 cm
Weight2.1 kg
Width21 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-20 °C
Expansion / Connectivity
Interfaces
  • 8 x 1000Base-T RJ-45 PoE+
  • 2 x 1000Base-X SFP uplink
  • 1 x console RJ-45
General
Authentication MethodRADIUS, TACACS+, Extensible Authentication Protocol (EAP)
Built-in DevicesSD card reader, SDHC card reader
CapacityPriority queues: 8
Compliant StandardsIEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.3ac, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
Device TypeSwitch - 8 ports - L3 - managed
Enclosure TypeRack-mountable
Encryption AlgorithmDES, Triple DES, RSA, MD5, TLS, SHA-1, SSL 2.0, PEAP, TTLS, DSA, ECDSA, 128-bit AES, 192-bit AES, 256-bit AES, 256-bit SHA-2, 384-bit SHA-2, 512-bit SHA-2, RNG, 224-bit SHA-2
FeaturesFlow control, DHCP support, auto-negotiation, BOOTP support, ARP support, IGMP snooping, Syslog support, port mirroring, DiffServ support, full duplex mode, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, DAI, PVST+, STP Root Guard, UDLD, fanless, LLDP support, LACP, SNMP trap, Energy Efficient Ethernet, MIB, NAC, loop prevention, 802.1x authentication, 1.5MB packet buffer, IP source guard, EPSRing, BPDU, ICMP, CPP, SCP, AMF, DDM, NTP, AAA
Flash Memory64 MB
Jumbo Frame Support10000 bytes
MAC Address Table Size16K entries
Performance
  • Switching fabric bandwidth: 20 Gbps
  • Forwarding performance: 14.9 Mpps
PoE Budget124 W
Ports8 x 10/100/1000 + 2 x SFP (mini-GBIC) (uplink)
Power Over Ethernet (PoE)PoE+
RAM256 MB SDRAM
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI, SNMP 6, SSH 6
Routing ProtocolRIP, RIP-2, IGMPv2, IGMP, IGMPv3, static IPv6 routing, MLDv2, MLD, CIDR
Status IndicatorsStatus
SubtypeGigabit Ethernet
Miscellaneous
Compliant StandardsFCC Class A certified, UL, TUV, cUL, EN55024, EN55022 Class A, RoHS, UL 60950-1, EN 60950-1, cULus, EN 60825-1, HMAC, VCCI Class A, China RoHS, DRBG, EN61000-3-2, EN61000-3-3, CISPR Class A
Rack Mounting KitIncluded
Power
Power DeviceInternal power supply
Voltage RequiredAC 120/230 V
