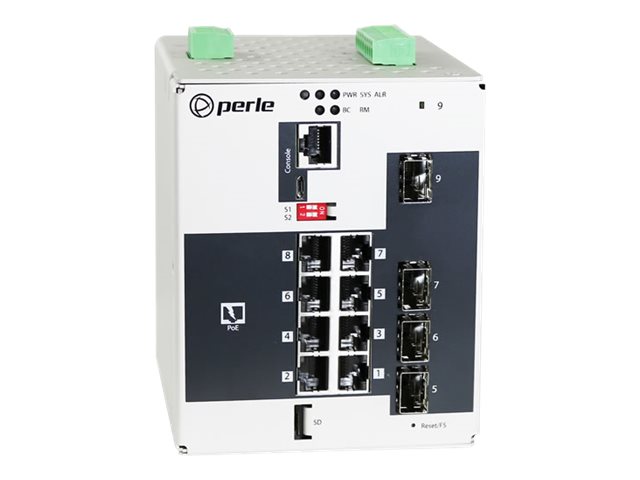

Perle IDS-509CPP - Switch

MSRP$2,163.00
$1,881.00
Perle IDS-509CPP - Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • managed
  • 5 x 10/100/1000 (PoE+) + 1 x 100/1000 SFP + 3 x combo 10/100/1000Base-T (PoE+) / 100/1000Base-X SFP
  • DIN rail mountable
  • PoE+
  • DC power
Perle IDS-509CPP - Switch
  • managed
  • 5 x 10/100/1000 (PoE+) + 1 x 100/1000 SFP + 3 x combo 10/100/1000Base-T (PoE+) / 100/1000Base-X SFP
  • DIN rail mountable
  • PoE+
  • DC power
  Additional Details
Price: $1,881.00
MSRP: $2,163.00
Mfr Part #: 07017190
SHI Part #: 33872787
Category: Network switches
UNSPSC: 43222612
Manufacturer: Perle Systems
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionPerle IDS-509CPP - Switch - managed - 5 x 10/100/1000 (PoE+) + 1 x 100/1000 SFP + 3 x combo 10/100/1000Base-T (PoE+) / 100/1000Base-X SFP - DIN rail mountable - PoE+ - DC power
ManufacturerPerle Systems
MSRP$2,163.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth13 cm
Dimensions & Weight / Height12.1 cm
Dimensions & Weight / Weight1.5 kg
Dimensions & Weight / Width7.5 cm
Header / BrandPerle
Miscellaneous / Product Color
  • Gray
  • White
Networking / Form FactorDIN rail mountable
Networking / Ports Qty9
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type5-year warranty
Dimensions & Weight
Depth13 cm
Height12.1 cm
Weight1.5 kg
Width7.5 cm
Dimensions & Weight (Shipping)
Shipping Depth7 cm
Shipping Height26 cm
Shipping Weight2 kg
Shipping Width17 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature60 °C
Max Storage Temperature70 °C
Min Operating Temperature-10 °C
Min Storage Temperature-25 °C
Expansion / Connectivity
Expansion Slots1 microSD
Interfaces
  • 5 x 1000Base-T RJ-45 PoE+
  • 3 x 1000Base-T / 1000Base-X RJ-45/SFP PoE+
  • 1 x serial (console) RJ-45
  • 1 x micro-USB Type B management
  • 1 x 1000Base-X SFP
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+
Capacity
  • VLAN IDs: 4094
  • IGMP groups: 1024
  • Packet buffer size: 1 Mbit
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2
Device TypeSwitch - 9 ports - managed
Enclosure TypeDIN rail mountable
Encryption AlgorithmSSL
FeaturesFlow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, IPv6 support, STP support, MSTP support, QoS, RADIUS support, DHCP server, MLD snooping, bandwidth control, LLDP support, DHCP relay, LACP, over-current protection, DHCP client, CoS, system log, 1Mbit packet buffer, SCP, GMRP, over-loading protection
MAC Address Table Size8K entries
Ports5 x 10/100/1000 (PoE+) + 1 x 100/1000 SFP + 3 x combo 10/100/1000Base-T (PoE+) / 100/1000Base-X SFP
Power Over Ethernet (PoE)PoE+
Remote Management ProtocolSNMP 1, RMON, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, CLI, SCP
Status IndicatorsPower, system, link/activity
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Compliant StandardsIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, RoHS, UL 60950-1, WEEE, REACH, UL 61010-1, IP20, EN55022:2010 Class A, CISPR 24:2010, EN 55024:2010, CISPR 22:2008, IEC 60950-1:2005 + A1:2009, FCC CFR47 Part 15 A, ATEX Zone 2, ANSI/ISA 12.12.01-2013, IEC 61000-6-2, UL 61010-2-201, EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Included AccessoriesDIN-rail mounting kit, removable terminal block
MTBF104,629 hours
Power
FeaturesPower Polarity Reverse Protect, Overload Current Resetable Fuse
Power RedundancyYes
Voltage RequiredDC 50 - 57 V (PoE+) / 44 - 57 V (PoE)
Software / System Requirements
Software IncludedPRO software feature set
