Hardware Networking and Security Hubs and Switches
Add to My Favorites
Hubs and Switches

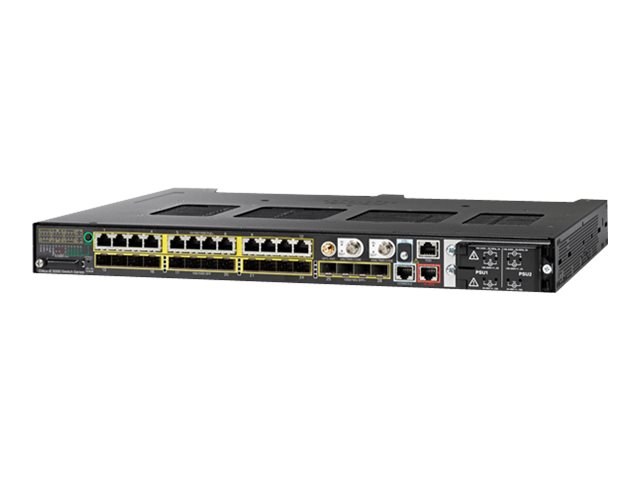

Cisco Industrial Ethernet 5000 Series

MSRP$13,800.33
$10,306.00
Cisco Industrial Ethernet 5000 Series
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • managed
  • 16 x Gigabit SFP + 12 x 10/100/1000 (PoE+)
  • rack-mountable
  • PoE+
Cisco Industrial Ethernet 5000 Series
  • Switch
  • managed
  • 16 x Gigabit SFP + 12 x 10/100/1000 (PoE+)
  • rack-mountable
  • PoE+
  • TAA Compliant
  Additional Details
Price: $10,306.00
MSRP: $13,800.33
Mfr Part #: IE-5000-16S12P=
SHI Part #: 33867097
Category: Network switches
UNSPSC: 43222612
Manufacturer: Cisco Systems
Product Type: Hardware

Power Management

Cisco - Power supply
Cisco - Power supply
  • hot-plug (plug-in module)
  • AC 100-240/ DC 100-250 V
  • 250 Watt
  • for Industrial Ethernet 5000 Series
MSRP $2,098.59 $1,637.00
Cisco - Power supply
Cisco - Power supply
  • hot-plug (plug-in module)
  • DC 24
  • 60 V
  • for Industrial Ethernet 5000 Series
MSRP $1,182.89 $945.00
General Information
CategoryNetwork switches
DescriptionCisco Industrial Ethernet 5000 Series - Switch - managed - 16 x Gigabit SFP + 12 x 10/100/1000 (PoE+) - rack-mountable - PoE+ - TAA Compliant
ManufacturerCisco Systems
MSRP$13,800.33
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth35.6 cm
Dimensions & Weight / Height4.5 cm
Dimensions & Weight / Weight6.21 kg
Dimensions & Weight / Width44.5 cm
Header / BrandCisco
Miscellaneous / Product ColorBlack
Networking / Form FactorRack-mountable
Networking / Ports Qty28
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type5-year warranty
Dimensions & Weight
Depth35.6 cm
Height4.5 cm
Weight6.21 kg
Width44.5 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature74 °C
Max Storage Temperature85 °C
Min Operating Temperature-40 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Expansion Slots1 (total) / 0 (free) x SD Memory Card
Interfaces
  • 12 x 1000Base-X SFP
  • 12 x 1000Base-T RJ-45 PoE+
  • 4 x SFP uplink
  • 1 x mini-USB Type B
  • 1 x console RJ-45
  • 1 x antenna input
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+
Built-in DevicesSD card reader
Capacity
  • Virtual interfaces (VLANs): 1005
  • IGMP groups: 1000
  • NAT entries: 128
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 1588v2, IEEE 1613
Device TypeSwitch - 28 ports - managed
Enclosure TypeRack-mountable 1U
FeaturesNAT support, BOOTP support, IGMP snooping, Syslog support, DiffServ support, MAC address filtering, Broadcast Storm Control, IPv6 support, full duplex mode, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), Dynamic ARP Inspection (DAI), Bidirectional Forwarding Detection (BFD), Uni-Directional Link Detection (UDLD), LLDP support, Link Aggregation Control Protocol (LACP), Port Security, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), Class of Service (CoS), 802.1x authentication, Precision Time Protocol (PTP), IGMP filtering, PROFINET v2, IP source guard, Flex Link support, Resilient Ethernet Protocol (REP), Parallel Redundancy Protocol (PRP), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Internet Control Message Protocol (ICMP), bidirectional
Flash Memory256 MB
MAC Address Table Size16K entries
Ports16 x Gigabit SFP + 12 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)PoE+
RAM1 GB
Remote Management ProtocolSNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, CLI, SCP
Routing ProtocolOSPF, BGP-4, IS-IS, RIP-2, EIGRP, IGMPv2, HSRP, IGMP, PIM-SM, PIM-DM, IGMPv3, EIGRP for IPv6, OSPF for IPv6, static IPv4 routing, policy-based routing (PBR), RIPng, Bidirectional Forwarding Detection (BFD)
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - advance parts replacement - 5 years - response time: 10 days
Miscellaneous
Compliant StandardsCISPR 22 Class A, CISPR 24, EN55024, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-11, RoHS, FCC CFR47 Part 15, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, IEC 60068-2-6, UL 508, EN 61131-2, IEC 60068-2-64, EN 61000-4-9, EN 61000-4-29, IEC 60068-2-1, IEC 60068-2-14, EN 50121-4, IP30, NOM-019-SCFI-1998, VCCI Class A, KN22, KN24, China RoHS, EN 50121-3-2, EN 60529, EN 61326, AS/NZS CISPR22:2004 Class A, CISPR 11 class A, EN 61000-4-18, IEC 61850-3, IEC 60068-2-3, EN 61373, ISO 9223, CNS13438:2006 Class B, EN 55022 Class A, EN 50155
Included Accessories1 GB SD card
MTBF390,190 hours
TAA CompliantYes
Power
Power Consumption Operational90 Watt
Power RedundancyYes
Power Redundancy Scheme1+1
Software / System Requirements
Software IncludedCisco IOS LAN Base
