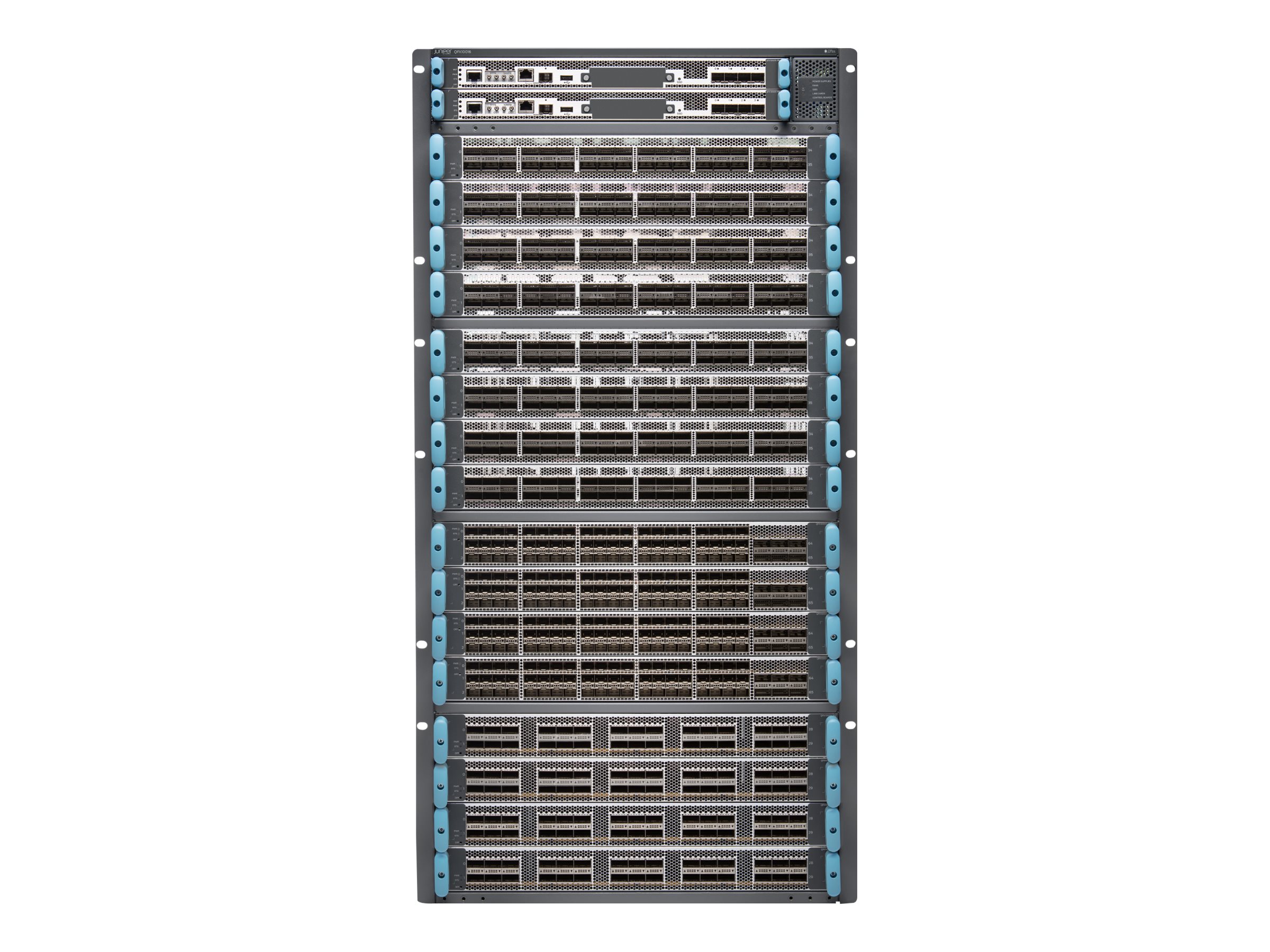

Juniper Networks QFX Series QFX10016
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Juniper Networks QFX Series QFX10016
- Modular expansion base
- L3
- front to back airflow
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | QFX10016-BASE |
| SHI Part #: | 33551470 |
| Category: | Network chassis |
| UNSPSC: | 43201602 |
| Manufacturer: | Juniper Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network chassis |
| Description | Juniper Networks QFX Series QFX10016 - Modular expansion base - L3 - front to back airflow - rack-mountable |
| Manufacturer | Juniper Networks |
| UNSPSC | 43201602 |
| Main Specifications | |
| Dimensions & Weight / Depth | 88.9 cm |
| Dimensions & Weight / Height | 93 cm |
| Dimensions & Weight / Weight | 270 kg |
| Dimensions & Weight / Width | 44.2 cm |
| Header / Brand | Juniper Networks |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor | Rack-mountable |
| Networking / Type | Modular expansion base |
| Packaged Quantity | 1 |
| System Requirements / OS Required | JUNOS |
| Dimensions & Weight | |
| Depth | 88.9 cm |
| Height | 93 cm |
| Weight | 270 kg |
| Width | 44.2 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Installed Modules Qty (Max) | 6 (installed) / 24 (max) |
| Interfaces |
|
| General | |
| Built-in Devices | 50 GB SSD |
| Device Type | Modular expansion base - L3 |
| Enclosure Type | Front to back airflow rack-mountable 21U |
| Features | 2 fan trays, VOQ, MC-LAG |
| Performance |
|
| Processor | X Intel: 2.5 GHz |
| RAM | 32 GB SDRAM |
| Status Indicators | Status |
| Miscellaneous | |
| Included Accessories | Front panel, 16 x linecard slot covers |
| Power | |
| Installed Qty | 5 |
| Max Supported Qty | 10 |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 2700 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 230 V |
| Software / System Requirements | |
| OS Required | JUNOS |
