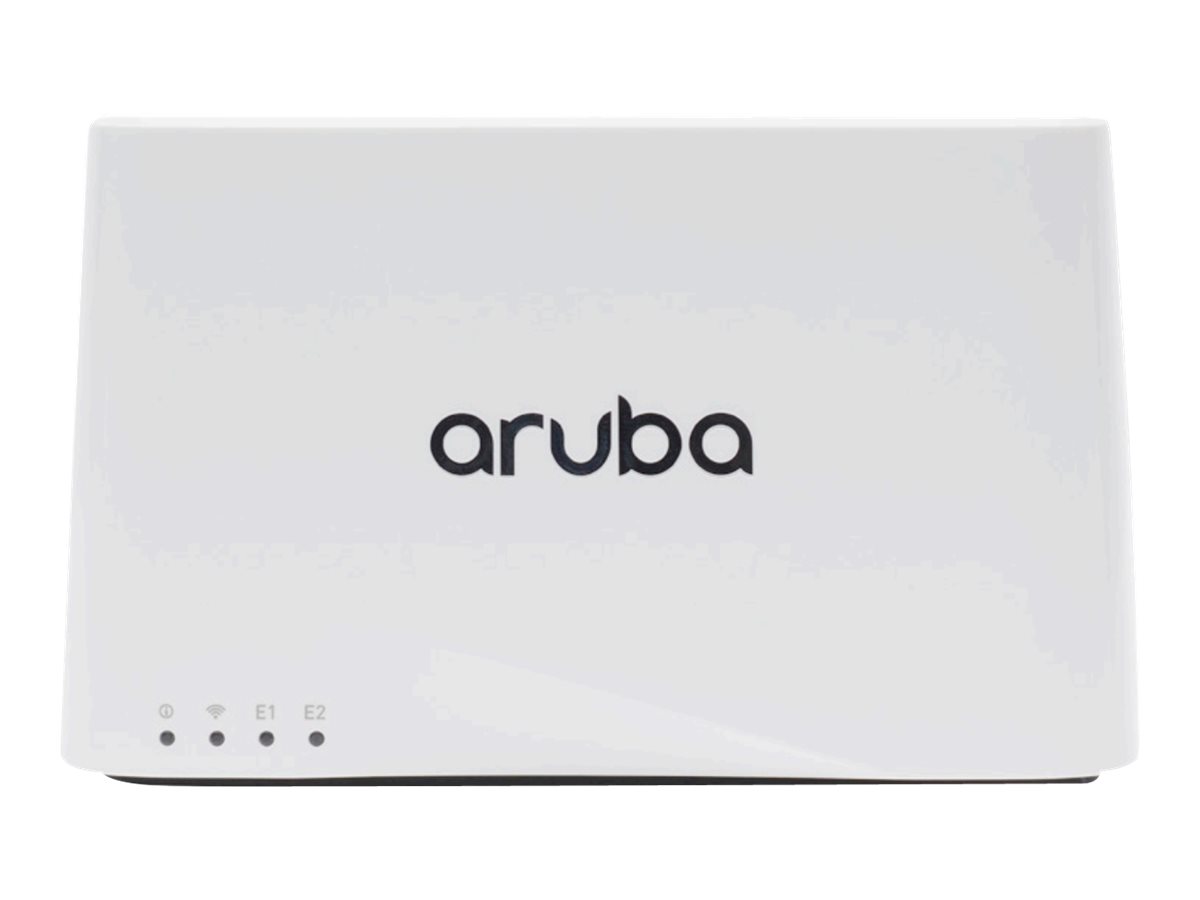

ARUBA AP-203R (US) UNIFIED REMOTE AP
MSRP$364.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
ARUBA AP-203R (US) UNIFIED REMOTE AP
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $364.00 |
| Mfr Part #: | JY714A |
| SHI Part #: | 33419128 |
| Category: | Network management system |
| UNSPSC: | 43222634 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network management system |
| Description | ARUBA AP-203R (US) UNIFIED REMOTE AP |
| Manufacturer | Hewlett Packard Enterprise |
| MSRP | $364.00 |
| UNSPSC | 43222634 |
| Main Specifications | |
| Dimensions & Weight / Weight | 1.20 |
| Height | 3.10 |
| Length | 8.90 |
| UPC | 0190017107707 |
| Width | 6.30 |
| Antenna | |
| Antenna | Internal |
| Antenna Qty | 2 |
| Directivity | Omni-directional |
| Gain Level | 2.9 dBi |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 93% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Depth | 9.5 cm |
| Device Type | Wireless access point |
| Height | 5 cm |
| Localization | English / United States |
| Ruggedized Design | Indoor |
| Weight | 320 g |
| Width | 15.5 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | EN 60950, IEC 60950, UL 60950, CB, FCC, EN 60601-1-2, cTUVus, FIPS, EN 300 328, EN 301 489, EN 60601-1-1, LVD 72/23/EEC, EN 301 893, R&TTE Directive 1995/5/EC |
| MTBF | 539,000 hours |
| Networking | |
| Capacity |
|
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, Wi-Fi CERTIFIED, IEEE 802.11n, IEEE 802.3az, IEEE 802.11ac |
| Connectivity Technology | Wireless |
| Data Link Protocol | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac |
| Data Transfer Rate | 867 Mbps |
| Features | Auto-uplink (auto MDI/MDI-X), DFS support, Quality of Service (QoS), Trusted Platform Module (TPM), 2T2R MIMO technology, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Energy Efficient Ethernet, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), cyclic shift diversity (CSD), Aruba Beacons Bluetooth Low-Energy (BLE) technology, packet aggregation A-MPDU, packet aggregation A-MSDU, wireless intrusion protection, Air Monitor (AM) |
| Form Factor | External |
| Frequency Band | 2.4 GHz, 5 GHz |
| Line Coding Format | CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM |
| Performance |
|
| Spread Spectrum Method | OFDM, DSSS |
| Status Indicators | Port status, power, system, status |
| Power | |
| Power Consumption Operational | 17.2 Watt |
| Power Over Ethernet (PoE) Supported | PoE |
| Software / System Requirements | |
| OS Required | ArubaOS, InstantOS |
