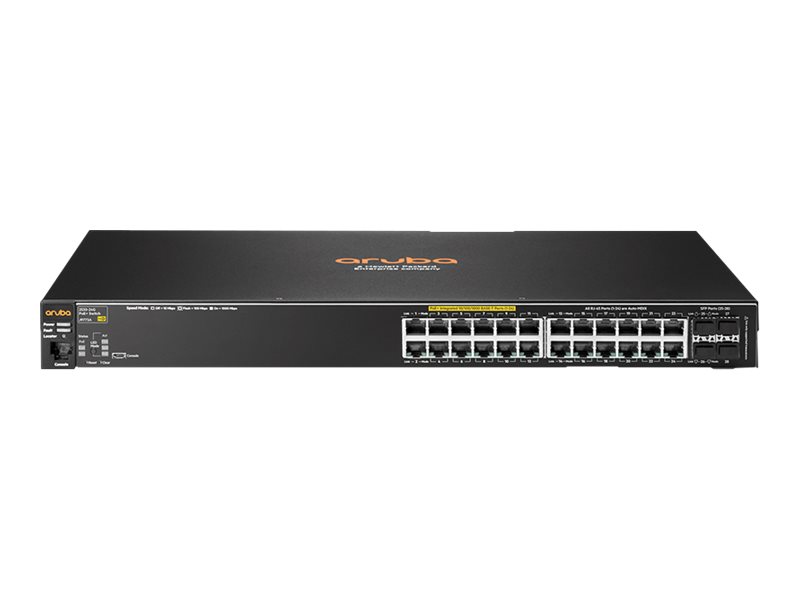

HPE Aruba 2530-24G-PoE+
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE Aruba 2530-24G-PoE+
- Switch
- managed
- 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP
- desktop, rack-mountable, wall-mountable
- PoE+
| Additional Details | |
|---|---|
| Mfr Part #: | J9773A#B2B |
| SHI Part #: | 33280346 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| Product Line: | HPE - Networking |
Networking and Security
- 1GbE
- 1000Base-SX
- LC multi-mode
- up to 500 m
- for OfficeConnect 1820; HPE Aruba 6000 12, 6000 24, 6000 48, 6200F 12, 6200M 24, 64XX; CX 8360
MSRP $480.00
$182.00
- SFP (mini-GBIC) transceiver module
- 1GbE
- 1000Base-LX
- LC single-mode
- up to 10 km
- for OfficeConnect 1820; HPE Aruba 6000 12, 6000 24, 6000 48, 6200F 12, 6200M 24, 64XX; CX 8360
MSRP $1,016.00
$321.00
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE Aruba 2530-24G-PoE+ - Switch - managed - 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP - desktop, rack-mountable, wall-mountable - PoE+ |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 33.02 cm |
| Dimensions & Weight / Height | 4.45 cm |
| Dimensions & Weight / Weight | 3.95 kg |
| Dimensions & Weight / Width | 44.3 cm |
| Header / Brand | Aruba |
| Networking / Form Factor |
|
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 33.02 cm |
| Height | 4.45 cm |
| Weight | 3.95 kg |
| Width | 44.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 15 - 95% (non-condensing) |
| Humidity Range Storage | 15 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Desktop, rack-mountable, wall-mountable 1U |
| Encryption Algorithm | SSL |
| Features | Flow control, DHCP support, BOOTP support, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), port mirroring, IPv6 support, half duplex mode, full duplex mode, SNTP support, sFlow, Multiple Spanning Tree Protocol (MSTP) support, Access Control List (ACL) support, Multicast Suppression, STP Root Guard, LLDP support, dual firmware images, Class of Service (CoS), Generic Attribute Registration Protocol (GARP) |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9220 bytes |
| MAC Address Table Size | 16000 entries |
| Performance |
|
| Ports | 24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Processor | 1 x ARM: 800 MHz |
| RAM | 128 MB DDR3 SDRAM |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, SSH-2, CLI |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified, CISPR 22 Class A, CISPR 24, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, VCCI Class A ITE, EN 61000-3-3, EN55024, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1, EN 55022 Class A |
| Power | |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
