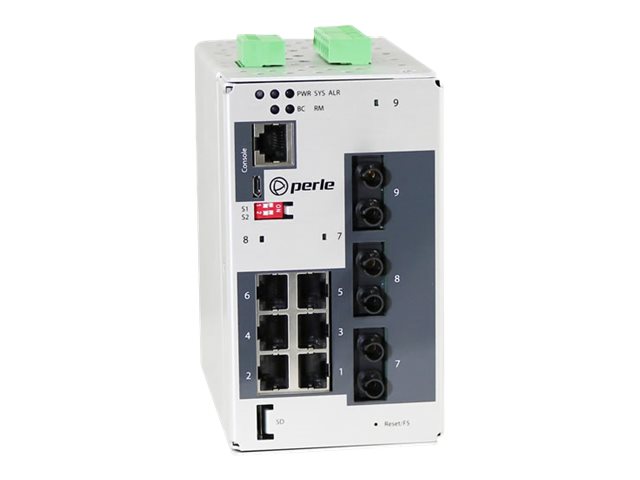

Perle IDS-509G3-T2SD10-MD05-XT

MSRP$2,718.00
$2,363.00
Perle IDS-509G3-T2SD10-MD05-XT
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • managed
  • 6 x 10/100/1000 + 2 x 1000Base-LX/LH + 1 x 1000Base-SX
  • DIN rail mountable
  • AC 18
Perle IDS-509G3-T2SD10-MD05-XT
  • Switch
  • managed
  • 6 x 10/100/1000 + 2 x 1000Base-LX/LH + 1 x 1000Base-SX
  • DIN rail mountable
  • AC 18
  • 30 V / DC 12/24/48 V
  Additional Details
Price: $2,363.00
MSRP: $2,718.00
Mfr Part #: 07014720
SHI Part #: 32933282
Category: Network switches
UNSPSC: 43222612
Manufacturer: Perle Systems
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionPerle IDS-509G3-T2SD10-MD05-XT - Switch - managed - 6 x 10/100/1000 + 2 x 1000Base-LX/LH + 1 x 1000Base-SX - DIN rail mountable - AC 18 - 30 V / DC 12/24/48 V
ManufacturerPerle Systems
MSRP$2,718.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth13 cm
Dimensions & Weight / Height12.1 cm
Dimensions & Weight / Weight1.5 kg
Dimensions & Weight / Width7.5 cm
Header / BrandPerle
Miscellaneous / Product Color
  • Black
  • Gray
Networking / Form FactorDIN rail mountable
Networking / Ports Qty9
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type5-year warranty
Dimensions & Weight
Depth13 cm
Height12.1 cm
Weight1.5 kg
Width7.5 cm
Dimensions & Weight (Shipping)
Shipping Depth26 cm
Shipping Height7 cm
Shipping Weight2 kg
Shipping Width17 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature75 °C
Max Storage Temperature85 °C
Min Operating Temperature-40 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Expansion Slots1 microSD
Interfaces
  • 6 x 1000Base-T RJ-45
  • 2 x 1000Base-LX/LH SC single-mode x 2
  • 1 x serial (console) RJ-45
  • 1 x micro-USB Type B management
  • 1 x 1000Base-SX ST multi-mode x 2
General
Authentication MethodSecure Shell (SSH), RADIUS, TACACS+
Capacity
  • IGMP groups: 1024
  • VLAN IDs: 4000
  • Packet buffer size: 1 Mbit
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 1588v2
Device TypeSwitch - 9 ports - managed
Enclosure TypeDIN rail mountable
Encryption AlgorithmSSL
FeaturesFlow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, store and forward, IPv6 support, firmware upgradable, STP support, MSTP support, QoS, RADIUS support, DHCP server, MLD snooping, reset button, bandwidth control, LLDP support, DHCP relay, LACP, over-current protection, DHCP client, microSD card slot, built-in DIP switch, CoS, system log, 1Mbit packet buffer, SCP, GMRP, over-loading protection
MAC Address Table Size8K entries
Max Transfer Distance10 km
Optical Wave Length850 nm / 1310 nm
Ports6 x 10/100/1000 + 2 x 1000Base-LX/LH + 1 x 1000Base-SX
Remote Management ProtocolSNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, SSH, CLI
Status IndicatorsPower, system, alarm, link/activity
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Compliant StandardsIEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, RoHS, UL 60950-1, WEEE, REACH, UL 61010-1, IP20, EN55022:2010 Class A, CISPR 24:2010, EN 55024:2010, CISPR 22:2008, IEC 60950-1:2005 + A1:2009, FCC CFR47 Part 15 A, ATEX Zone 2, ANSI/ISA 12.12.01-2013, IEC 61000-6-2, UL 61010-2-201, EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Included AccessoriesRemovable terminal block
MTBF101,750 hours
Power
FeaturesRedundant Power System (RPS) connector, Power Polarity Reverse Protect
Power DeviceInternal power supply
Power RedundancyYes
Voltage RequiredAC 18 - 30 V / DC 12/24/48 V
Software / System Requirements
Software IncludedPRO software feature set
