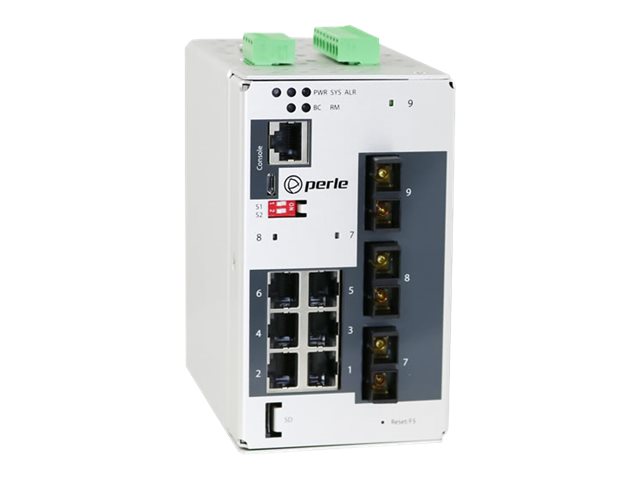

Perle IDS-509F3-C2SD40-SD20

MSRP$2,384.40
$2,073.00
Perle IDS-509F3-C2SD40-SD20
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • managed
  • 6 x 10/100/1000 + 3 x 100Base-LX
  • DIN rail mountable
  • AC 24 V / DC 12/24/48 V
Perle IDS-509F3-C2SD40-SD20
  • Switch
  • managed
  • 6 x 10/100/1000 + 3 x 100Base-LX
  • DIN rail mountable
  • AC 24 V / DC 12/24/48 V
  Additional Details
Price: $2,073.00
MSRP: $2,384.40
Mfr Part #: 07014090
SHI Part #: 32933219
Category: Network switches
UNSPSC: 43222612
Manufacturer: Perle Systems
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionPerle IDS-509F3-C2SD40-SD20 - Switch - managed - 6 x 10/100/1000 + 3 x 100Base-LX - DIN rail mountable - AC 24 V / DC 12/24/48 V
ManufacturerPerle Systems
MSRP$2,384.40
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth13 cm
Dimensions & Weight / Height12.1 cm
Dimensions & Weight / Weight1.5 kg
Dimensions & Weight / Width7.5 cm
Header / BrandPerle
Miscellaneous / Product ColorWhite
Networking / Form FactorDIN rail mountable
Networking / Ports Qty9
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type5-year warranty
Dimensions & Weight
Depth13 cm
Height12.1 cm
Weight1.5 kg
Width7.5 cm
Dimensions & Weight (Shipping)
Shipping Depth26 cm
Shipping Height7 cm
Shipping Weight2 kg
Shipping Width17 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature60 °C
Max Storage Temperature70 °C
Min Operating Temperature-10 °C
Min Storage Temperature-25 °C
Expansion / Connectivity
Interfaces
  • 6 x 1000Base-T RJ-45
  • 2 x 100Base-LX SC single-mode x 2 - 40 km max transfer distance
  • 1 x 100Base-LX SC single-mode x 2 - 20 km max transfer distance
  • 1 x console RJ-45
General
Authentication MethodRADIUS, TACACS+
Built-in DevicesSD card reader
Capacity
  • VLAN IDs: 4000
  • VLANs supported: 256
  • IGMP groups: 1024
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP)
Device TypeSwitch - 9 ports - managed
Enclosure TypeDIN rail mountable
FeaturesDHCP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, IPv6 support, DHCP server, IPv4 support, LLDP support, DHCP relay, over-current protection, DHCP client, PROFINET, Storm Control, Link Aggregation
MAC Address Table Size8K entries
Max Transfer Distance40 km
Optical Wave Length1310 nm
Ports6 x 10/100/1000 + 3 x 100Base-LX
Remote Management ProtocolSNMP, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, SCP, Modbus, NTP
Routing ProtocolIGMP, MSTP, RSTP, STP
Status IndicatorsPower, system, alarm, link/activity
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Compliant StandardsUL 60950-1, ATEX Directive, UL 61010-1, IEC60950-1:2005+A1:2009, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, CISPR 24:2010, EN 55024:2010, EN 55022:2010 Class A, CISPR 22:2008, EN 60825-1:2007, FCC CFR47 Part 15 A, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-6-2, IEC/EN 61000-4-2, IEEE 1588, UL 61010-2-201, IEEE 1588v2, EN 60950-1:2006+A11:2009+A1:2010+A12:2011
Included AccessoriesDIN-rail mounting kit, removable terminal block
Power
Power RedundancyYes
Voltage RequiredAC 24 V / DC 12/24/48 V
Software / System Requirements
Software IncludedDrivers & Utilities
