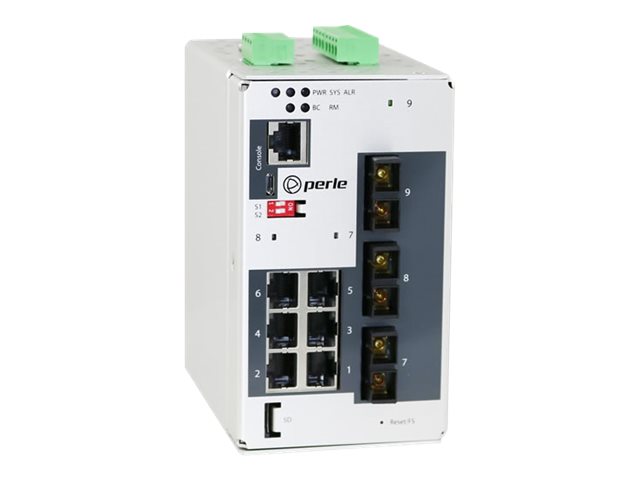

Perle IDS-409F3-C2MD2-SD120
MSRP$4,742.40
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Perle IDS-409F3-C2MD2-SD120
- Switch
- managed
- 6 x 10/100/1000 + 2 x 100Base-FX + 1 x 100Base-ZX
- DIN rail mountable
- AC 18
- 30 V / DC 12/24/48 V
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $4,742.40 |
| Mfr Part #: | 07013630 |
| SHI Part #: | 32933123 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Perle IDS-409F3-C2MD2-SD120 - Switch - managed - 6 x 10/100/1000 + 2 x 100Base-FX + 1 x 100Base-ZX - DIN rail mountable - AC 18 - 30 V / DC 12/24/48 V |
| Manufacturer | Perle Systems |
| MSRP | $4,742.40 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.1 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Weight | 1.5 kg |
| Dimensions & Weight / Width | 7.5 cm |
| Header / Brand | Perle |
| Miscellaneous / Product Color |
|
| Networking / Form Factor | DIN rail mountable |
| Networking / Ports Qty | 9 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 12.1 cm |
| Height | 13 cm |
| Weight | 1.5 kg |
| Width | 7.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 26 cm |
| Shipping Height | 7 cm |
| Shipping Weight | 2 kg |
| Shipping Width | 17 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Expansion Slots | 1 microSD |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH) |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP) |
| Device Type | Switch - 9 ports - managed |
| Enclosure Type | DIN rail mountable |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, store and forward, IPv6 support, firmware upgradable, STP support, RSTP support, QoS, IPv4 support, fanless, LLDP support, DHCP relay, microSD card slot, built-in DIP switch, CoS, SNMP support, Storm Control |
| MAC Address Table Size | 8K entries |
| Max Transfer Distance | 120 km |
| Optical Wave Length | 1310 nm / 1550 nm |
| Ports | 6 x 10/100/1000 + 2 x 100Base-FX + 1 x 100Base-ZX |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 2c, HTTP, TFTP, SSH, CLI |
| Status Indicators | Power, system, alarm, link/activity |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | Plug and Play, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, RoHS, EN 61000-4-8, UL 60950-1, WEEE, REACH, UL 61010-1, IP20, EN55022:2010 Class A, IEC60950-1:2005+A1:2009, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, CISPR 24:2010, EN 55024:2010, CISPR 22:2008, FCC CFR47 Part 15 A, ATEX Zone 2, EN 60950-1:2006+A11:2009+A1:2010+A12:2011 |
| Included Accessories | DIN-rail mounting kit, removable terminal block |
| MTBF | 105,797 hours |
| Power | |
| Features | Redundant Power System (RPS) connector, Power Polarity Reverse Protect |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | AC 18 - 30 V / DC 12/24/48 V |
