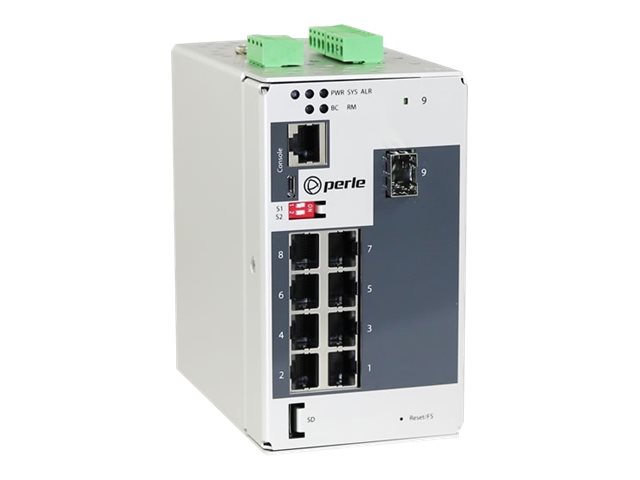

Perle IDS-409-1SFP - Switch

MSRP$1,746.00
$1,519.00
Perle IDS-409-1SFP - Switch
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • managed
  • 8 x 10/100/1000 + 1 x Gigabit SFP
  • DIN rail mountable
  • AC 24 V / DC 12/24/48 V
Perle IDS-409-1SFP - Switch
  • managed
  • 8 x 10/100/1000 + 1 x Gigabit SFP
  • DIN rail mountable
  • AC 24 V / DC 12/24/48 V
  Additional Details
Price: $1,519.00
MSRP: $1,746.00
Mfr Part #: 07013450
SHI Part #: 32933111
Category: Network switches
UNSPSC: 43222612
Manufacturer: Perle Systems
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionPerle IDS-409-1SFP - Switch - managed - 8 x 10/100/1000 + 1 x Gigabit SFP - DIN rail mountable - AC 24 V / DC 12/24/48 V
ManufacturerPerle Systems
MSRP$1,746.00
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth12.1 cm
Dimensions & Weight / Height13 cm
Dimensions & Weight / Weight1.5 kg
Dimensions & Weight / Width7.5 cm
Header / BrandPerle
Miscellaneous / Product Color
  • Gray
  • White
Networking / Form FactorDIN rail mountable
Networking / Ports Qty9
Networking / TypeSwitch
Packaged Quantity1
Service & Support / Type5-year warranty
Dimensions & Weight
Depth12.1 cm
Height13 cm
Weight1.5 kg
Width7.5 cm
Dimensions & Weight (Shipping)
Shipping Depth17 cm
Shipping Height7 cm
Shipping Weight2 kg
Shipping Width26 cm
Environmental Parameters
Humidity Range Operating5 - 90% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature60 °C
Max Storage Temperature70 °C
Min Operating Temperature-10 °C
Min Storage Temperature-25 °C
Expansion / Connectivity
Expansion Slots1 microSD
Interfaces
  • 8 x 1000Base-T RJ-45
  • 1 x 1000Base-X SFP
  • 1 x management RJ-45
  • 1 x USB management
General
Capacity
  • VLAN IDs: 4000
  • VLANs supported: 256
  • IGMP groups: 1024
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1ab (LLDP)
Device TypeSwitch - 9 ports - managed
Enclosure TypeDIN rail mountable
FeaturesFlow control, auto-sensing per device, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, port mirroring, store and forward, IPv6 support, STP support, RSTP support, QoS, IPv4 support, fanless, LACP support, LLDP support, DHCP relay, LACP, CoS, Storm Control, over-loading protection, reverse polarity protection
Jumbo Frame Support10KB
MAC Address Table Size8K entries
Ports8 x 10/100/1000 + 1 x Gigabit SFP
Remote Management ProtocolSNMP, RMON, Telnet, CLI
Routing ProtocolIGMPv2, IGMP, IGMPv3
Status IndicatorsPower, system, alarm, link/activity
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & SupportLimited warranty - 5 years
Miscellaneous
Compliant StandardsPlug and Play, RoHS, UL 60950-1, WEEE, UL 508, FCC Part 15 A, REACH, UL 61010-1, IEC 61010-1, IP20, EN 61010-1, CISPR 24:2010, EN 55024:2010, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-6-2, IEC 62368-1, IEC/EN 61000-4-2, EN 55032:2015 Class A, UL 61010-2-201, EN 62368-1:2014, UL 62368-1, ATEX Class 1 Zone 2, IEC 60950-1 (2nd Edition) + A1 + A2, CISPR 32:2015, ISA 12.12.01, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
Included AccessoriesDIN-rail mounting kit, removable terminal block
MTBF123,553 hours
Power
Power Consumption Operational15.8 Watt
Power DeviceInternal power supply
Voltage RequiredAC 24 V / DC 12/24/48 V
