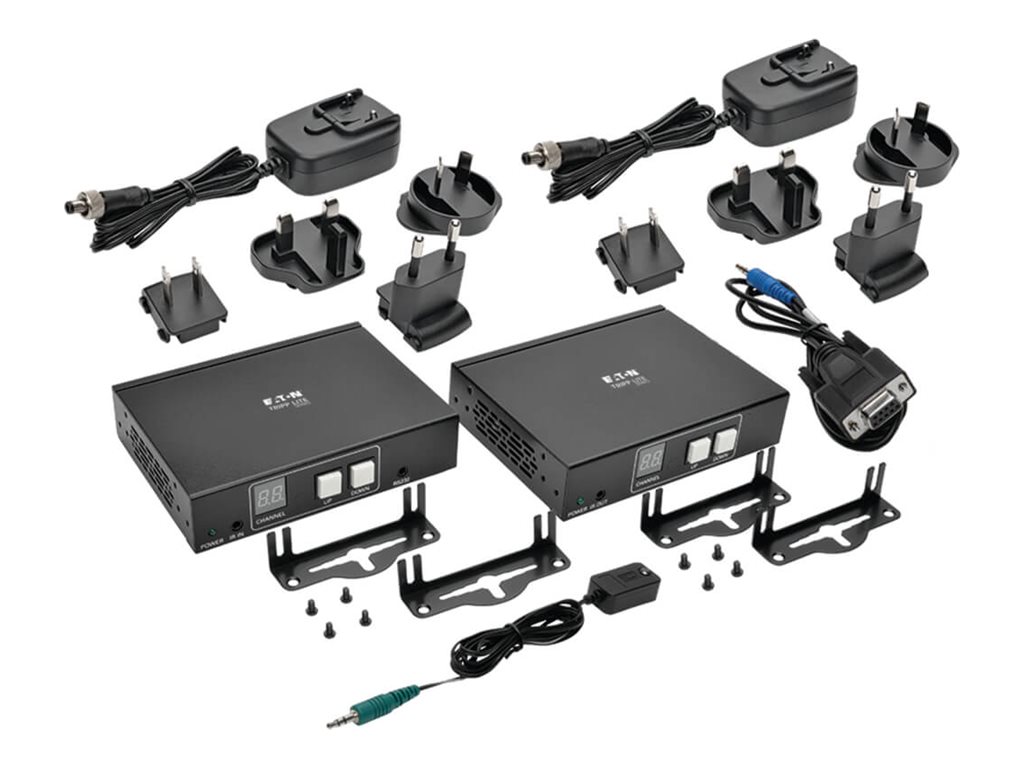

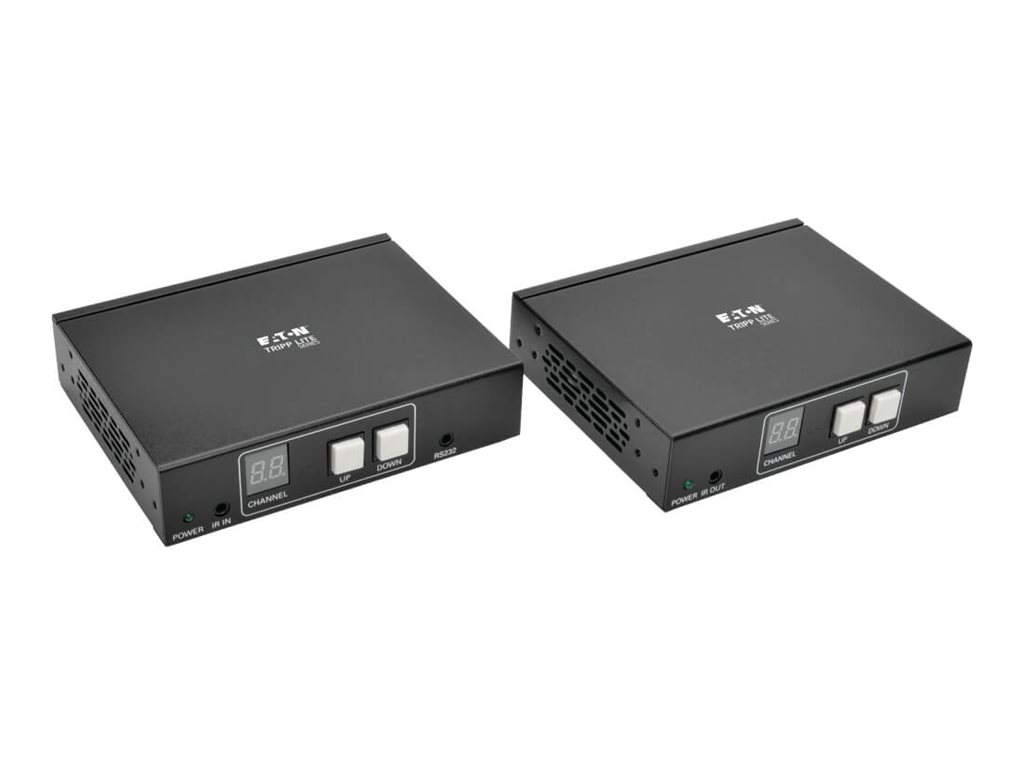

Tripp Lite 2-Port HDMI Over IP Extender Kit w/ RS-232 Serial & IR Control TAA

The B160-201-HSI 2-Port

HDMI Audio/Video with RS-232 Serial and IR Control over IP Extender Kit extends

and distributes HDMI audio/video, RS-232 serial and IR (infrared) remote

signals through a dedicated Ethernet network switch* located up to 328 feet

(100 m) from the transmitter. With an additional 328 feet between the switch

and the receiver, the maximum distance from source to display is 656 feet (200

m). You can also directly

connect the transmitter and receiver up to 328 feet apart with Cat5/Cat6

cabling.

The B160-201-HSI is designed for managed network

switches with IGMP, which allow login and remote management via switch

interface. You can connect up to 64 transmitters and 255 receivers in a single

managed switch installation.**

The B160-201-HSI supports

video resolutions up to 1920 x 1080 (1080p) at 60 Hz.

In a point-to-multipoint switch installation, you can send the HDMI video source to any analog or digital display, including VGA

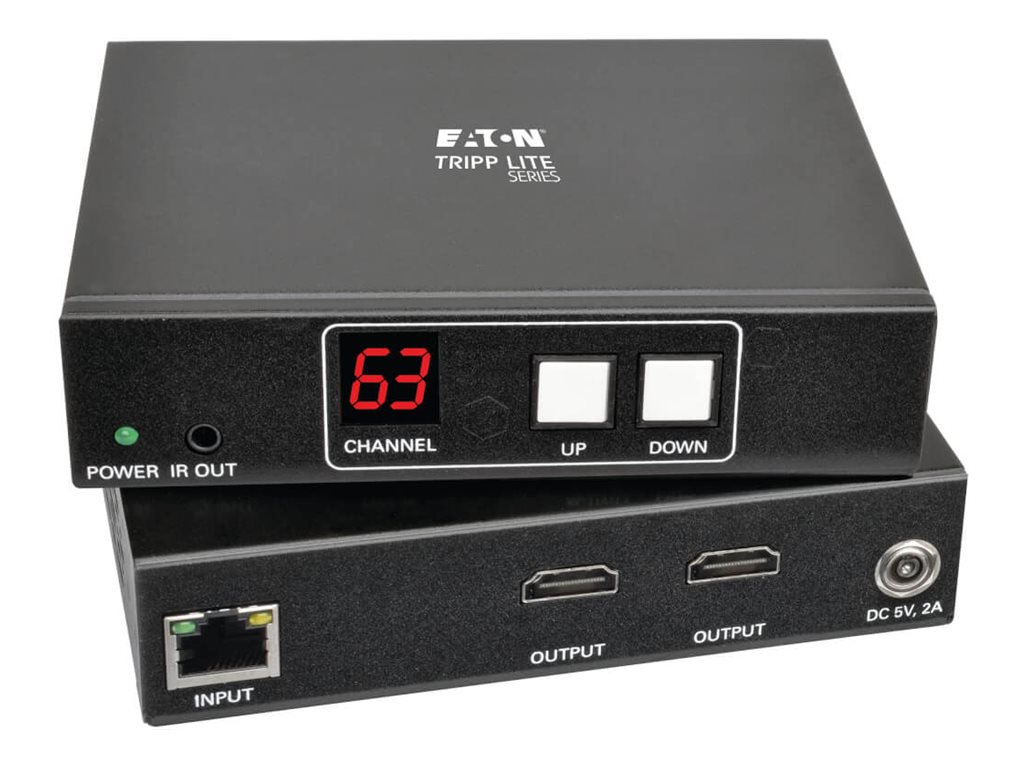

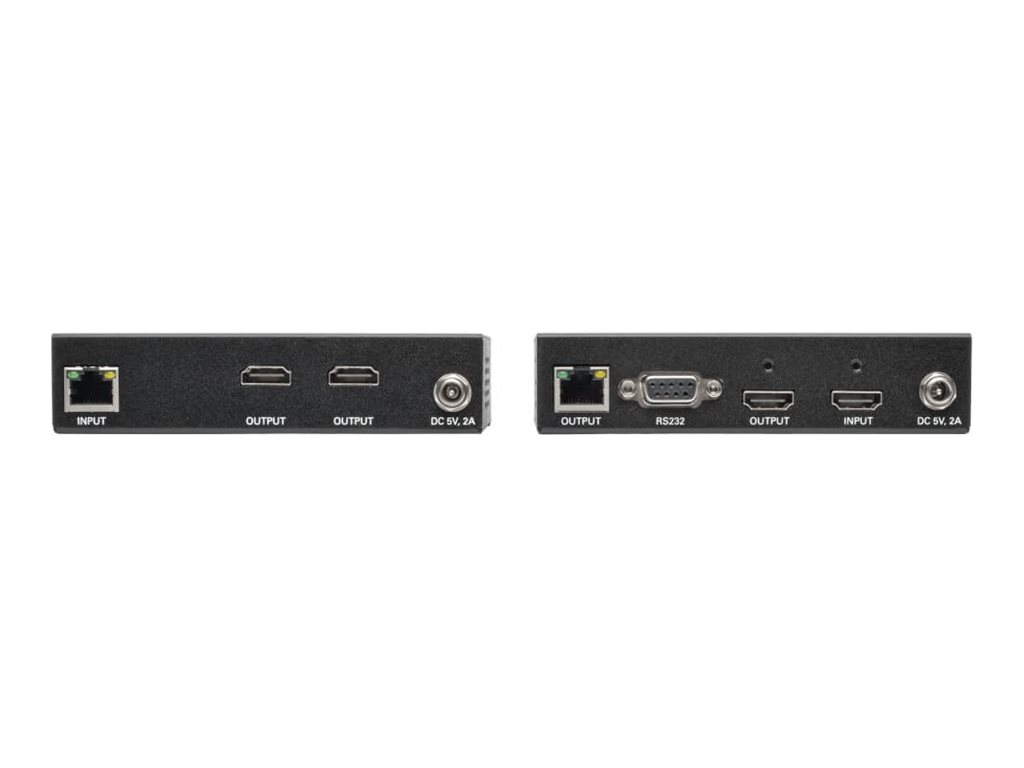

and DisplayPort . Dual HDMI ports on the receiver allow the connection of two

displays. It extends IR

control signals that control a source, such as a Blu-ray player, from a remote

display, as well as RS-232 signals at serial baud rates up to 57600 Bps.

*B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.

**Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.
