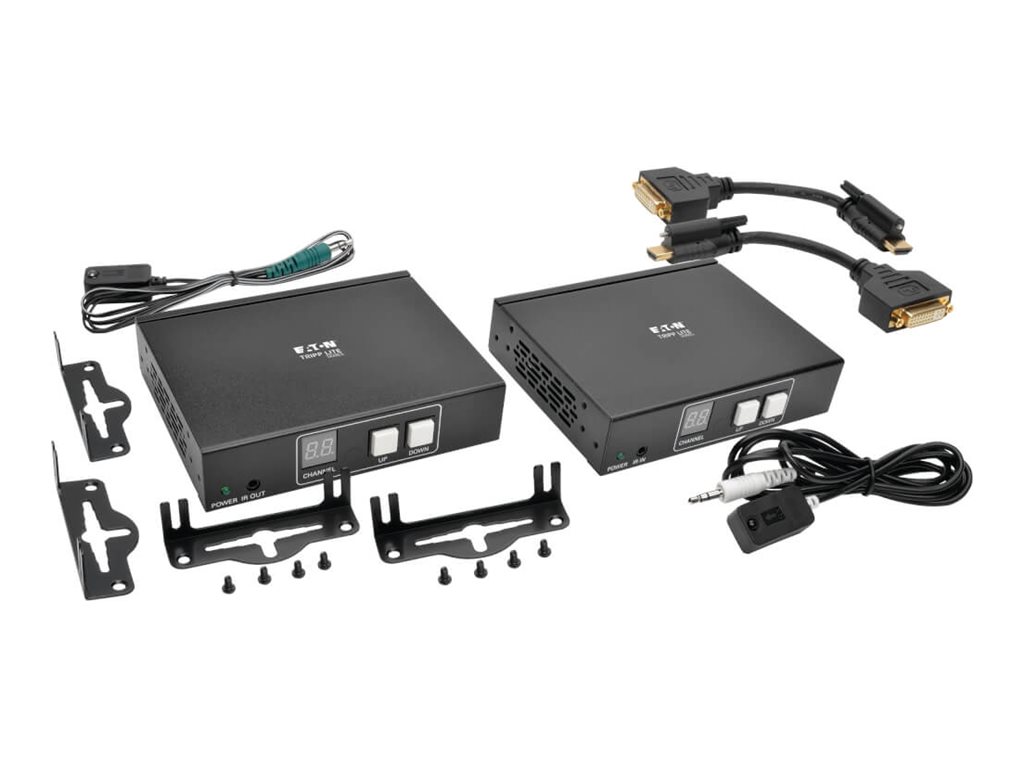

Tripp Lite HDMI/DVI Over IP Transmitter & Receiver Extender Kit Audio/Video with RS-232 Serial and IR Control 1920 x 1080 (1080p) @ 60 Hz, 656 ft. (200 m)

The B160-101-HDSI HDMI/DVI

Audio/Video with RS-232 Serial and IR Control over IP Extender Kit extends and

distributes HDMI or DVI audio/video, RS-232 serial and IR (infrared) remote

signals through a dedicated Ethernet network switch* located up to 328 feet

(100 m) from the transmitter. With an additional 328 feet between the switch

and the receiver, the maximum distance from source to display is 656 feet (200

m). You can also directly

connect the transmitter and receiver up to 328 feet apart with Cat5/Cat6

cabling.

The B160-101-HDSI is designed for managed network

switches with IGMP, which allow login and remote management via switch

interface. You can connect up to 64 transmitters and 255 receivers in a single

managed switch installation.**

The B160-101-HDSI supports

video resolutions up to 1920 x 1080 (1080p) at 60 Hz. In a point-to-multipoint switch installation, you can send the HDMI or DVI video source (a DVI adapter cable is included) to

any analog or digital display, including VGA and DisplayPort . It extends IR control signals

that control a source, such as a Blu-ray player, from a remote display, as

well as RS-232 signals at serial baud rates up to 57600 Bps.

*B160-Series designed for use with dedicated network switch. Connecting to a switch used with other networking equipment will result in degraded or non-functional performance.

**Unmanaged switch installations are limited to two transmitter units. Number of receivers is limited to number of ports remaining on unmanaged switch.
