D-Link DGS 3630-52TC


MSRP$3,877.99
$3,402.00
D-Link DGS 3630-52TC

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • L3
  • managed
  • 44 x 10/100/1000 + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+
  • rack-mountable
D-Link DGS 3630-52TC
  • Switch
  • L3
  • managed
  • 44 x 10/100/1000 + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+
  • rack-mountable
  Additional Details
Price: $3,402.00
MSRP: $3,877.99
Mfr Part #: DGS-3630-52TC/SI
SHI Part #: 32567899
Category: Network switches
UNSPSC: 43222612
Manufacturer: D-Link
Product Type: Hardware

Hardware

D-Link DEM 311GT - SFP (mini-GBIC) transceiver module
  • GigE
  • 1000Base-SX
  • LC multi-mode
  • up to 550 m
  • 850 nm
  • for DGS 12XX; DXS 1100, 1210, 3400, 3600; Nuclias Cloud-Managed DBS-2000-10, 2000-28, 2000-52
MSRP $27.99 $22.00
D-Link DEM 431XT - SFP+ transceiver module
  • 10 GigE
  • 10GBase-SR
  • up to 300 m
  • for D-Link Data Center 10; DGS 3630; DXS 1100, 1210, 3400, 3600; Web Smart DXS-1210-12
MSRP $74.99 $61.00
D-Link DEM 432XT - SFP+ transceiver module
  • 10 GigE
  • 10GBase-LR
  • up to 10 km
  • for D-Link Data Center 10; DGS 3630; DXS 1100, 1210, 3400, 3600; Web Smart DXS-1210-12
MSRP $147.99 $116.00
General Information
CategoryNetwork switches
DescriptionD-Link DGS 3630-52TC - Switch - L3 - managed - 44 x 10/100/1000 + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+ - rack-mountable
ManufacturerD-Link
MSRP$3,877.99
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth26 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight4.04 kg
Dimensions & Weight / Width44.1 cm
Header / BrandD-Link
Miscellaneous / Product Color
  • Black
  • Gray
Networking / Form FactorRack-mountable
Networking / Ports Qty52
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth26 cm
Height4.4 cm
Weight4.04 kg
Width44.1 cm
Environmental Parameters
Humidity Range Operating10 - 95%
Humidity Range Storage5 - 95%
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature-5 °C
Min Storage Temperature-40 °C

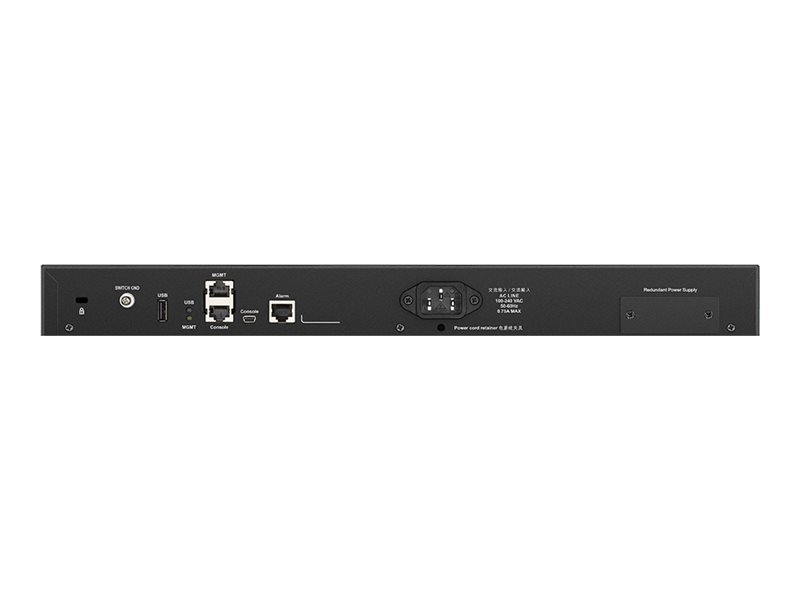

Expansion / Connectivity
Interfaces
  • 48 x 1000Base-T RJ-45
  • 4 x 1000Base-X SFP
  • 4 x 10GBase-X SFP+
  • 1 x console RJ-45 management
  • 1 x management (Gigabit LAN) RJ-45
  • 1 x USB 2.0 Type A
  • 1 x alarm RJ-45
  • 1 x console (mini-USB)
General
Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2)
Capacity
  • IPv4 routing table entries: 16000
  • IPv6 routing table entries: 7000
  • IPv4 forwarding table entries: 32000
  • IPv6 forwarding table entries: 16000
  • VLAN groups: 4000
  • Dynamic VLAN entries: 4000
  • Static ARP entries: 512
  • IPv4 routes (static): 512
  • IPv6 routes (static): 256
  • QoS hardware queues per port: 8
  • ACL entries (egress): 4000
  • ACL entries (ingress): 1000
Compliant StandardsIEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1AX, IEEE 802.1Qbb
Device TypeSwitch - 52 ports - L3 - managed - stackable
Enclosure TypeRack-mountable
Encryption AlgorithmMD5, SSL, TLS 1.0, TLS 1.1
FeaturesARP support, IGMP snooping, DoS attack prevention, packet filtering, port mirroring, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Dying Gasp support, sFlow, PIM snooping, tunneling, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), IP Precedence, DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Safeguard Engine, Cable Diagnostics Function, bandwidth control, LLDP support, Port Security, Remote Switch Port Analyzer (RSPAN), SNMP trap, DHCP client, Energy Efficient Ethernet, Dynamic VLAN Support (GVRP), Strict Priority (SP), Loopback, TFTP client, 4MB packet buffer, 802.1x authentication, Duplicated Address Detection, Two Rate Three Color Marking (TRTCM), Type of Service (ToS), Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, 2 fans, IGMP filtering, Single Rate Three Color Marking (SRTCM), IP source guard, Head of Line Blocking Prevention, host based access control, Priority-Based Flow Control (PFC), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Link Aggregation, Management Information Base (MIB) II, Source-Specific Multicast (SSM), Digital Diagnostics Monitoring (DDM), Network Timing Protocol (NTP), Authentication, Authorization and Accounting (AAA), VLAN Double Tagging (Q-in-Q), Loop Guard, Ethernet Ring Protection Switching (ERPS) v2, VLAN mirroring, MLD filtering, Web-based Access Control (WAC), Switch Resource Management (SRM)
Jumbo Frame Support12KB
MAC Address Table Size68K entries
Max Units In A Stack9
Performance
  • Switching capacity: 176 Gbps
  • Forwarding performance: 130.95 Mpps
  • Stacking bandwidth: 80 Gbps
Ports44 x 10/100/1000 + 4 x combo Gigabit SFP + 4 x 10 Gigabit SFP+
Remote Management ProtocolSNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI
Routing ProtocolBGP-4, RIP-1, RIP-2, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPFv3, PIM-SSM, MSDP, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), DVMRPv3, RIPng, MLDv2, MLD, BGP-4+, VRRPv2, Bidirectional Forwarding Detection (BFD), VRRPv3, URPF
Status IndicatorsStatus
Manufacturer Warranty
Service & SupportLimited warranty - lifetime
Miscellaneous
Compliant StandardsFCC Class A certified, VCCI, C-Tick, BSMI, cUL, CB, CCC, ITU Y.1731
MTBF263,936 hours
Power
Power Consumption Operational62 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
Software / System Requirements
Software IncludedStandard Image (SI) Software
