Perle IDS-305F-CSD40
MSRP$1,098.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

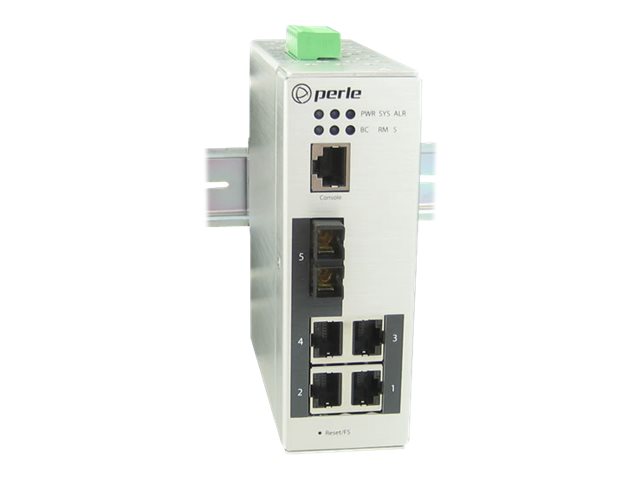

Perle IDS-305F-CSD40
- Switch
- managed
- 4 x 10/100/1000 + 1 x 100Base-LX
- DIN rail mountable
- DC power
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,098.00 |
| Mfr Part #: | 07012370 |
| SHI Part #: | 32383385 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Perle IDS-305F-CSD40 - Switch - managed - 4 x 10/100/1000 + 1 x 100Base-LX - DIN rail mountable - DC power |
| Manufacturer | Perle Systems |
| MSRP | $1,098.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12.1 cm |
| Dimensions & Weight / Height | 13 cm |
| Dimensions & Weight / Weight | 610 g |
| Dimensions & Weight / Width | 4.5 cm |
| Header / Brand | Perle |
| Miscellaneous / Product Color | White |
| Networking / Form Factor | DIN rail mountable |
| Networking / Ports Qty | 5 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 12.1 cm |
| Height | 13 cm |
| Weight | 610 g |
| Width | 4.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 7 cm |
| Shipping Height | 26 cm |
| Shipping Weight | 760 g |
| Shipping Width | 17 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Max Storage Temperature | 75 °C |
| Min Operating Temperature | -10 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+ |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az, IEEE 1588v2 |
| Device Type | Switch - 5 ports - managed |
| Enclosure Type | DIN rail mountable |
| Encryption Algorithm | SSL |
| Features | Flow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, port mirroring, store and forward, IPv6 support, STP support, RSTP support, MSTP support, ACL support, QoS, DHCP server, fanless, LLDP support, DHCP relay, DHCP client, CoS, GARP, PTP, Storm Control, 1Mbit packet buffer, SCP, NTP, AAA, LLDP-MED, EEE |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 8K entries |
| Max Transfer Distance | 40 km |
| Optical Wave Length | 1310 nm |
| Ports | 4 x 10/100/1000 + 1 x 100Base-LX |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 2c, CLI |
| Status Indicators | Power, system, alarm, link/activity |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS, Laser Class 1, UL 60950-1, WEEE, REACH, UL 61010-1, IP20, EN55022:2010 Class A, IEC60950-1:2005+A1:2009, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, CISPR 24:2010, EN 55024:2010, CISPR 22:2008, EN 60825-1:2007, FCC CFR47 Part 15 A, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-6-2, IEC/EN 61000-4-2, UL 61010-2-201, ATEX Class 1 Zone 2, EN 60950-1:2006+A11:2009+A1:2010+A12:2011 |
| MTBF | 277,426 hours |
| Power | |
| Features | Overload Current Protection |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | DC 12/24/48 V |
