Perle IDS-205F-CSD20
MSRP$1,339.20
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

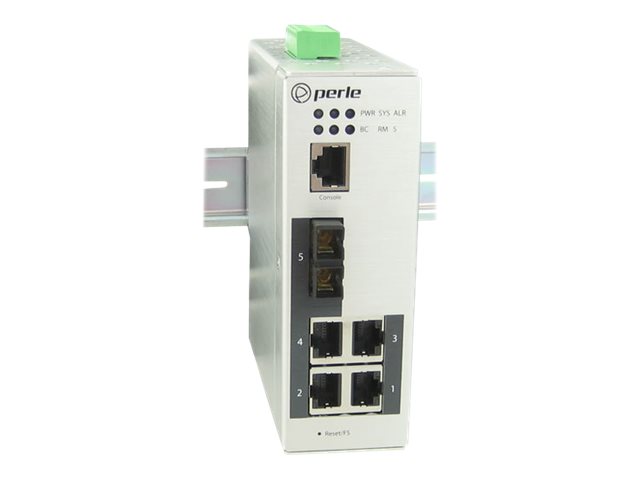

Perle IDS-205F-CSD20
- Switch
- managed
- 4 x 10/100/1000 + 1 x 100Base-LX
- DIN rail mountable
- DC power
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $1,339.20 |
| Mfr Part #: | 07012070 |
| SHI Part #: | 32383321 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Perle IDS-205F-CSD20 - Switch - managed - 4 x 10/100/1000 + 1 x 100Base-LX - DIN rail mountable - DC power |
| Manufacturer | Perle Systems |
| MSRP | $1,339.20 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 13 cm |
| Dimensions & Weight / Height | 12.1 cm |
| Dimensions & Weight / Weight | 610 g |
| Dimensions & Weight / Width | 4.5 cm |
| Header / Brand | Perle |
| Miscellaneous / Product Color |
|
| Networking / Form Factor | DIN rail mountable |
| Networking / Ports Qty | 5 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 13 cm |
| Height | 12.1 cm |
| Weight | 610 g |
| Width | 4.5 cm |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 26 cm |
| Shipping Height | 7 cm |
| Shipping Weight | 760 g |
| Shipping Width | 17 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | -10 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Device Type | Switch - 5 ports - managed |
| Enclosure Type | DIN rail mountable |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, EEE, 1.5KV ESD Protector |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 8K entries |
| Max Transfer Distance | 20 km |
| Optical Wave Length | 1310 nm |
| Ports | 4 x 10/100/1000 + 1 x 100Base-LX |
| Status Indicators | Power, system, alarm, link/activity |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | RoHS, Laser Class 1, UL 60950-1, WEEE, ATEX Directive, REACH, UL 61010-1, IP20, IEC 60825, EN55022:2010 Class A, 21 CFR 1040.10, 21 CFR 1040.11, ANSI/ISA.12.12.01 Class I Division 2 Groups ABCD, CISPR 24:2010, EN 55024:2010, CISPR 22:2008, IEC 60950-1:2005 + A1:2009, EN 60825-1:2007, FCC CFR47 Part 15 A, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, IEC/EN 61000-6-2, IEC/EN 61000-4-2, UL 61010-2-201, EN 60950-1:2006+A11:2009+A1:2010+A12:2011 |
| MTBF | 277,426 hours |
| Power | |
| Features | Redundant Power System (RPS) connector |
| Power Consumption Operational | 3.4 watt |
| Voltage Required | DC 12/24/48 V |
