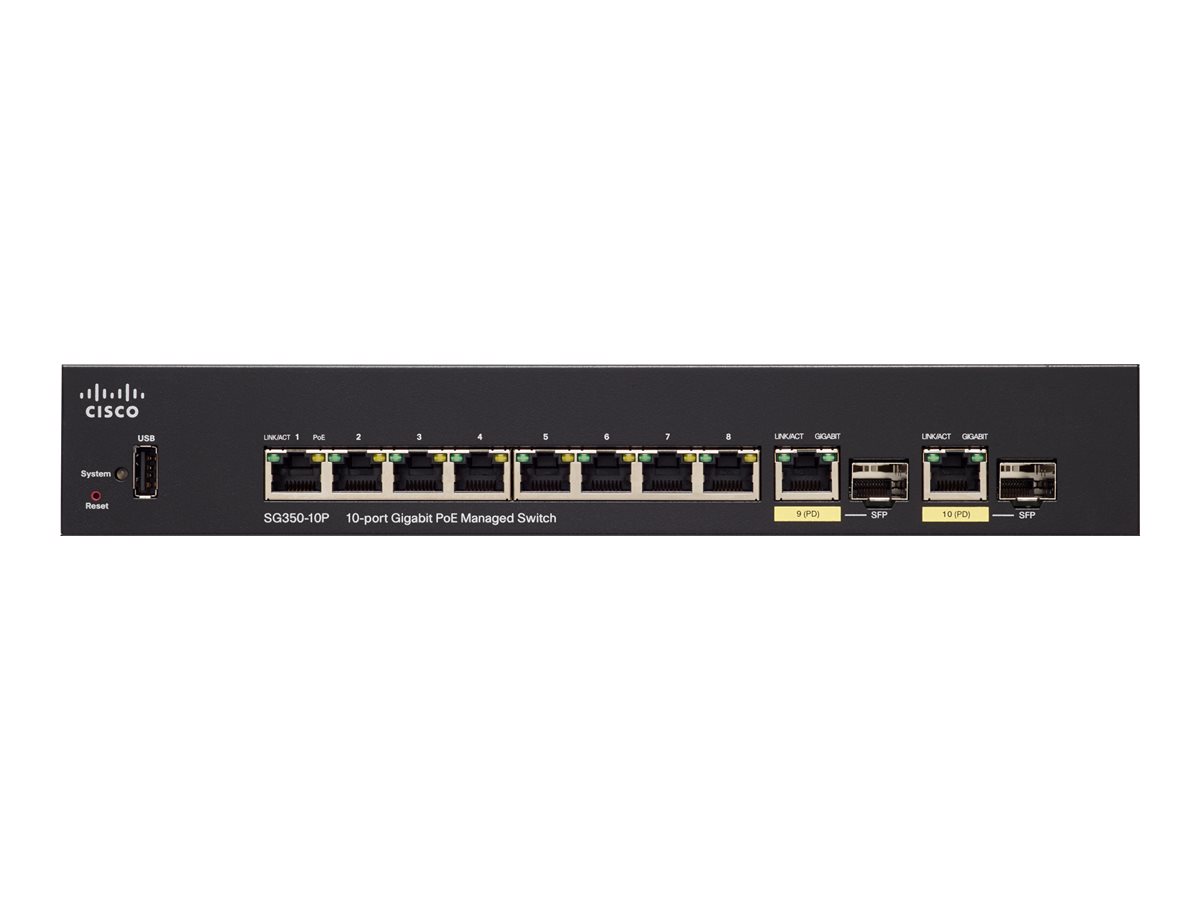

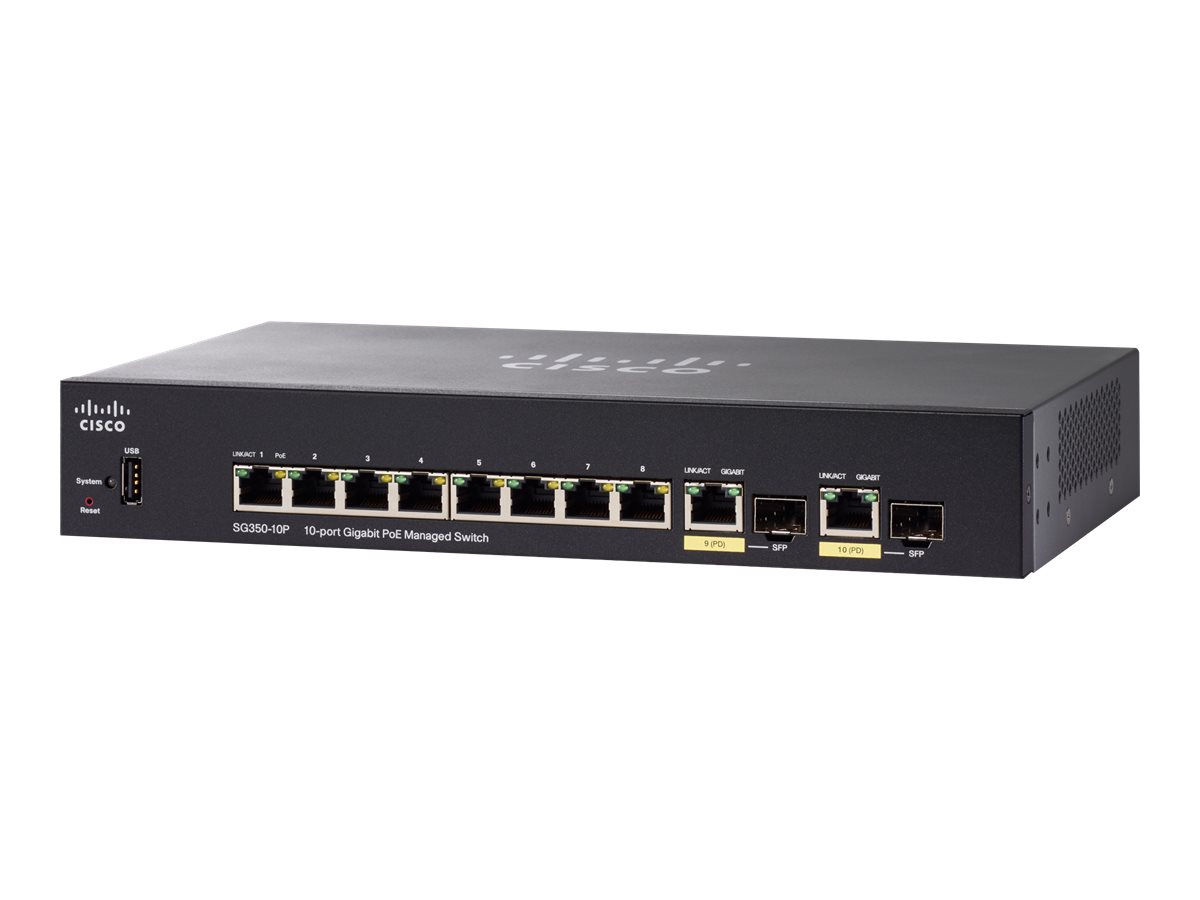

Cisco Small Business SG350-10P
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Cisco Small Business SG350-10P
- Switch
- L3
- managed
- 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP
- desktop
- PoE+ (62 W)
| Additional Details | |
|---|---|
| Mfr Part #: | SG350-10P-K9-NA |
| SHI Part #: | 32265472 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| Product Line: | Cisco |
Networking and Security
- SFP (mini-GBIC) transceiver module
- GigE
- 1000Base-LX
- LC single-mode
- up to 10 km
- 1310 nm
MSRP $201.30
$187.00
- SFP (mini-GBIC) transceiver module
- 1GbE
- 1000Base-SX
- LC
- for Business 110 Series; 220 Series; 350 Series; Small Business SF350, SF352, SG250, SG350
MSRP $132.31
$123.00
| General Information | |
|---|---|
| Category | Network switches |
| Description | Cisco Small Business SG350-10P - Switch - L3 - managed - 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP - desktop - PoE+ (62 W) |
| Manufacturer | Cisco Systems |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 17 cm |
| Dimensions & Weight / Height | 4.45 cm |
| Dimensions & Weight / Weight | 1.19 kg |
| Dimensions & Weight / Width | 27.9 cm |
| Header / Brand | Cisco |
| Header / Country Kits | North America |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Desktop |
| Networking / Ports Qty | 10 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 17 cm |
| Height | 4.45 cm |
| Weight | 1.19 kg |
| Width | 27.9 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -20 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Capacity | Active VLANs: 4096 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az |
| Device Type | Switch - 10 ports - L3 - managed |
| Enclosure Type | Desktop 1U |
| Encryption Algorithm | SSL |
| Features | Layer 3 switching, layer 2 switching, DHCP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, WRR queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, STP support, RSTP support, TFTP support, ACL support, QoS, Jumbo Frames support, MLD snooping, 12MB packet buffer |
| Flash Memory | 256 MB |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 16K entries |
| Performance |
|
| PoE Budget | 62 W |
| Ports | 8 x 10/100/1000 (PoE+) + 2 x combo Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| RAM | 512 MB |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Routing Protocol | Static IPv4 routing, CIDR |
| Status Indicators | Link/activity |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Cables Included |
|
| Compliant Standards | UL 60950, FCC Part 15 A, CSA 22.2 |
| Localization | North America |
| MTBF | 205,647 hours |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 84.7 watt |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
