Ubiquiti EdgeSwitch 12 Fiber
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

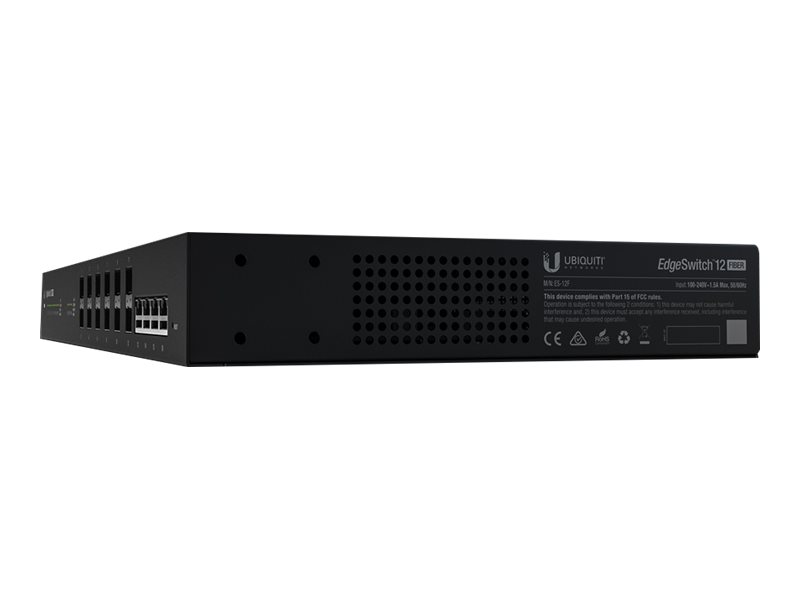

Ubiquiti EdgeSwitch 12 Fiber
- Switch
- L3
- managed
- 4 x Gigabit SFP + 8 x 100/1000 SFP + 4 x 10/100/1000
- desktop, rack-mountable, wall-mountable
- AC 120/230 V / DC 16
- 25 V
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | ES-12F |
| SHI Part #: | 31659471 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Ubiquiti |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Ubiquiti EdgeSwitch 12 Fiber - Switch - L3 - managed - 4 x Gigabit SFP + 8 x 100/1000 SFP + 4 x 10/100/1000 - desktop, rack-mountable, wall-mountable - AC 120/230 V / DC 16 - 25 V |
| Manufacturer | Ubiquiti |
| MSRP | $244.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.1 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 2.59 kg |
| Dimensions & Weight / Width | 44.3 cm |
| Header / Brand | Ubiquiti |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor |
|
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 22.1 cm |
| Height | 4.3 cm |
| Weight | 2.59 kg |
| Width | 44.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Built-in Devices | LED panel |
| Capacity |
|
| Compliant Standards | IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.1ak, IEEE 802.3ac, IEEE 802.3ad (LACP), IEEE 802.3x |
| Device Type | Switch - L3 - managed |
| Enclosure Type | Rack-mountable, desktop, wall-mountable 1U |
| Encryption Algorithm | TLS, SSL 3.0 |
| Features | MSTP support, RSTP support, STP support, VLAN support, Link Aggregation, DHCP snooping, IGMP snooping, MAC address filtering, ACL support, CoS, DHCP server, 24KV ESD Protector, LLDP-MED, Guest VLAN, port-based VLAN, VLAN Tagging, flow control, GARP, GMRP, GVRP, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Unknown Storm Control, IVL, Jumbo Frames support, port mirroring, Voice VLAN, event log, IPv4 support, IPv6 support, BOOTP support, MIB II, SNTP support, MIB, RADIUS support, Syslog support, ToS, DSCP support, wall mountable, reset button |
| MAC Address Table Size | 16384 entries |
| Performance |
|
| Ports | 4 x Gigabit SFP + 8 x 100/1000 SFP + 4 x 10/100/1000 |
| Remote Management Protocol | TFTP, HTTP, CLI, SNMP 1, SNMP 2, SNMP 3, SSH, SSH-2, Telnet |
| Routing Protocol | Static IP routing |
| Status Indicators | Link/activity, port transmission speed |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | ETSI 300 019-1-4, IC, FCC Part 15, ICES-003 Class A, NMB-3 Class A, WEEE 2012/19/EU |
| Included Accessories | Cage nuts, mounting screws |
| Rack Mounting Kit | Included |
| Power | |
| Power Consumption Operational | 56 watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V / DC 16 - 25 V (50/60 Hz) |
