TRENDnet TEG 10GBS10
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

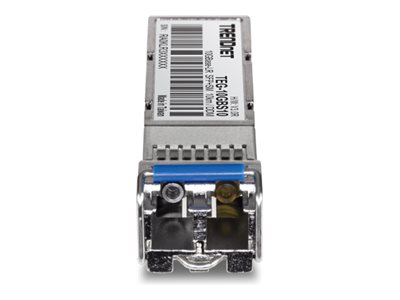

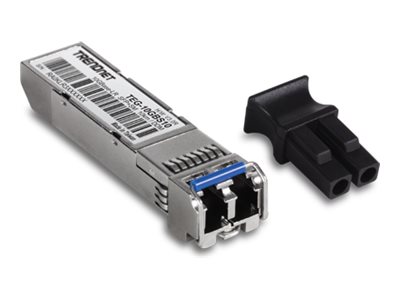

TRENDnet TEG 10GBS10
- SFP+ transceiver module
- 10 GigE
- 10GBase-LR
- LC single-mode
- up to 10 km
- 1310 nm
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TEG-10GBS10 |
| SHI Part #: | 31395372 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | TRENDnet |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | TRENDnet TEG 10GBS10 - SFP+ transceiver module - 10 GigE - 10GBase-LR - LC single-mode - up to 10 km - 1310 nm |
| Manufacturer | TRENDnet |
| MSRP | $59.99 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 5.65 cm |
| Dimensions & Weight / Height | 1.185 cm |
| Dimensions & Weight / Weight | 22 g |
| Dimensions & Weight / Width | 1.48 cm |
| Header / Brand | TRENDnet |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | 10 Gigabit Ethernet |
| Networking / Data Transfer Rate | 10.5 Gbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | SFP+ transceiver module |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 5.65 cm |
| Height | 1.185 cm |
| Weight | 22 g |
| Width | 1.48 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 10GBase-LR - LC single-mode female x 2 |
| General | |
| Device Type | SFP+ transceiver module |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | FCC, MSA SFF-8472, MSA SFF-8431, MSA SFF-8432 |
| TAA Compliant | Yes |
| Networking | |
| Cabling Type | 10GBase-LR |
| Compliant Standards | IEEE 802.3ae |
| Connectivity Technology | Wired |
| Data Link Protocol | 10GbE |
| Data Transfer Rate | 10.5 Gbps |
| Features | Hot swap module replacement, Digital Diagnostics Monitoring Interface (DDMI), metal housing |
| Fibre Channel | FC-PI-4 |
| Max Transfer Distance | 10 km |
| Optical Wave Length | 1310 nm |
| Power | |
| Power Consumption Operational | 522 mW |
