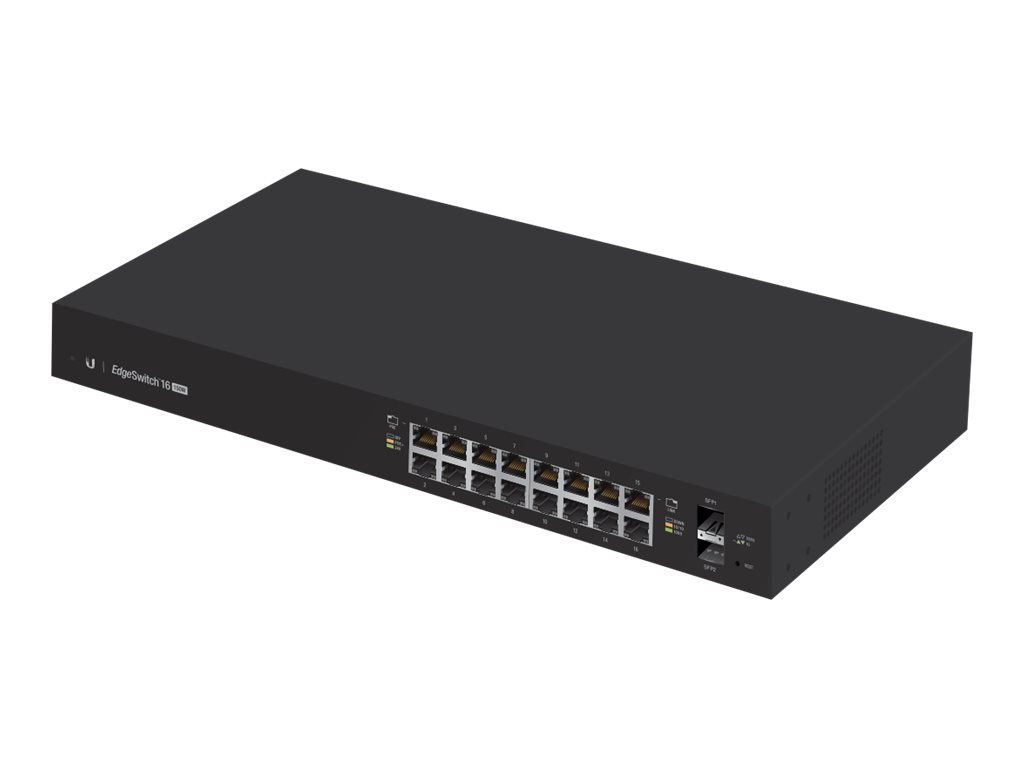

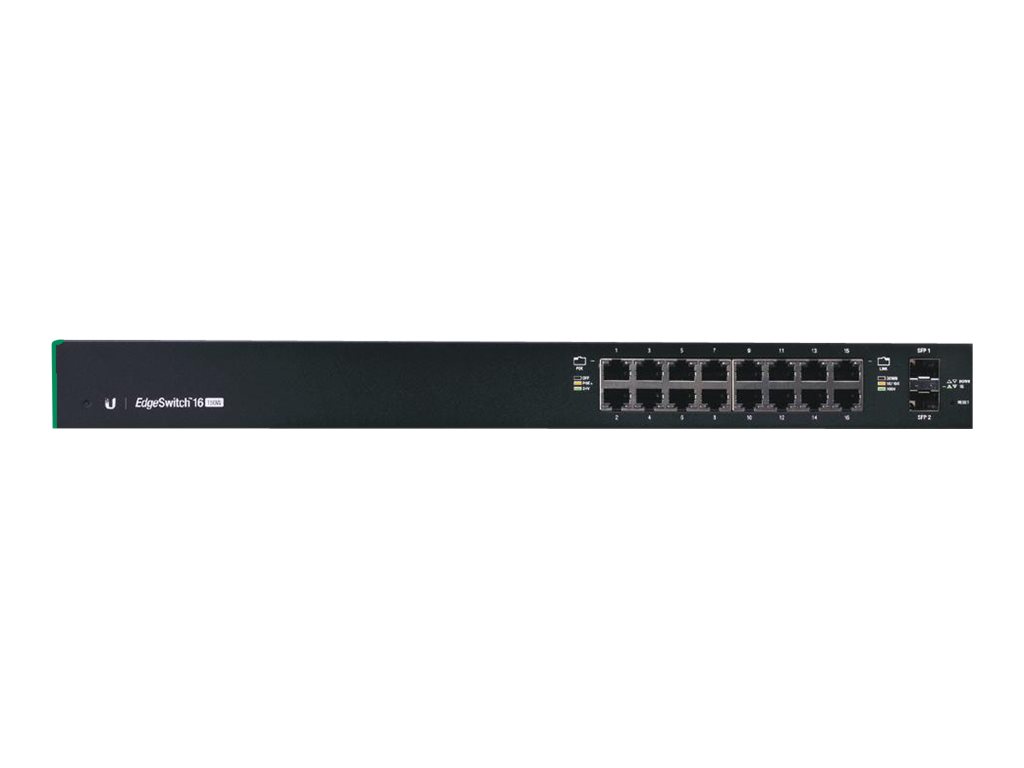

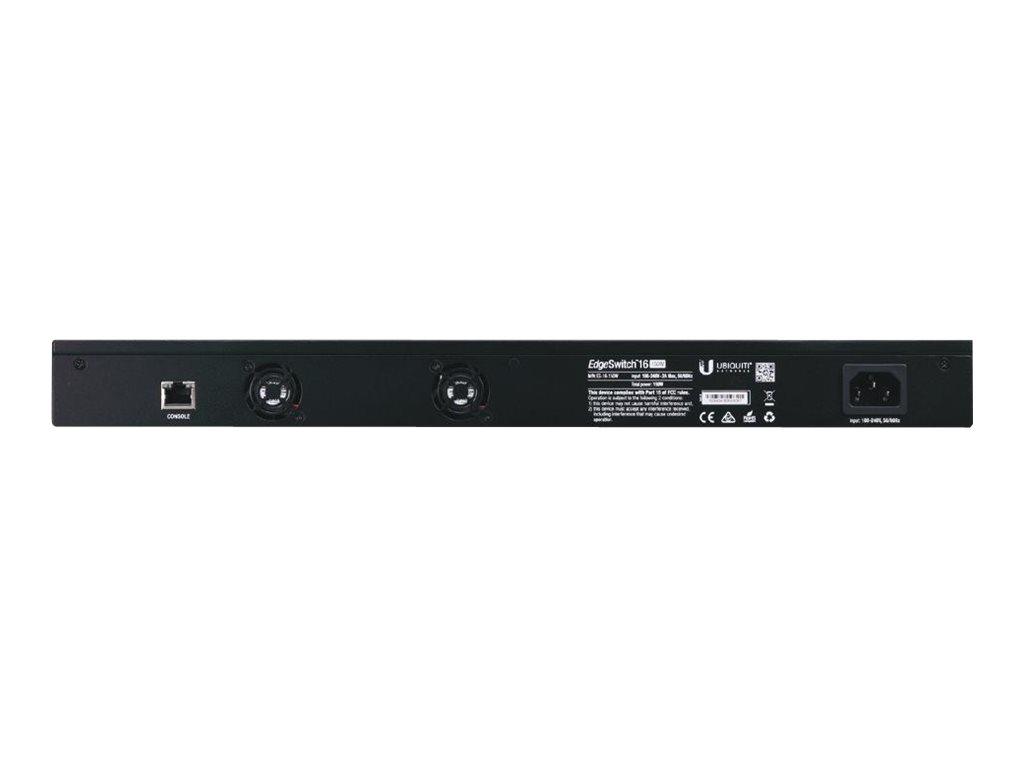

Ubiquiti EdgeSwitch 16
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Ubiquiti EdgeSwitch 16
- Switch
- L3
- managed
- 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP
- rack-mountable
- PoE+
| Additional Details | |
|---|---|
| Mfr Part #: | ES-16-150W |
| SHI Part #: | 31341343 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Ubiquiti |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Ubiquiti EdgeSwitch 16 - Switch - L3 - managed - 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP - rack-mountable - PoE+ |
| Manufacturer | Ubiquiti |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 22.1 cm |
| Dimensions & Weight / Height | 4.3 cm |
| Dimensions & Weight / Weight | 2.8 kg |
| Dimensions & Weight / Width | 44.3 cm |
| Header / Brand | Ubiquiti |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 16 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Dimensions & Weight | |
| Depth | 22.1 cm |
| Height | 4.3 cm |
| Weight | 2.8 kg |
| Width | 44.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | -5 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ak, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Device Type | Switch - 16 ports - L3 - managed |
| Enclosure Type | Rack-mountable 1U |
| Features | Flow control, BOOTP support, VLAN support, IGMP snooping, Syslog support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, RSTP support, MSTP support, DHCP snooping, ACL support, QoS, RADIUS support, UDLD, LLDP support, LACP, GVRP, CoS, GARP |
| Jumbo Frame Support | Yes |
| MAC Address Table Size | 8K entries |
| Performance |
|
| Ports | 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
| Power Over Ethernet (PoE) | PoE+ |
| Remote Management Protocol | SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, SSH-2, CLI |
| Routing Protocol | Static IP routing, policy-based routing (PBR) |
| Status Indicators | Port transmission speed, PoE, link/activity |
| Subtype | Gigabit Ethernet |
| Miscellaneous | |
| Compliant Standards | IC, FCC, ETSI 300 019 |
| Power | |
| Power Consumption Operational | 150 watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50/60 Hz) |
