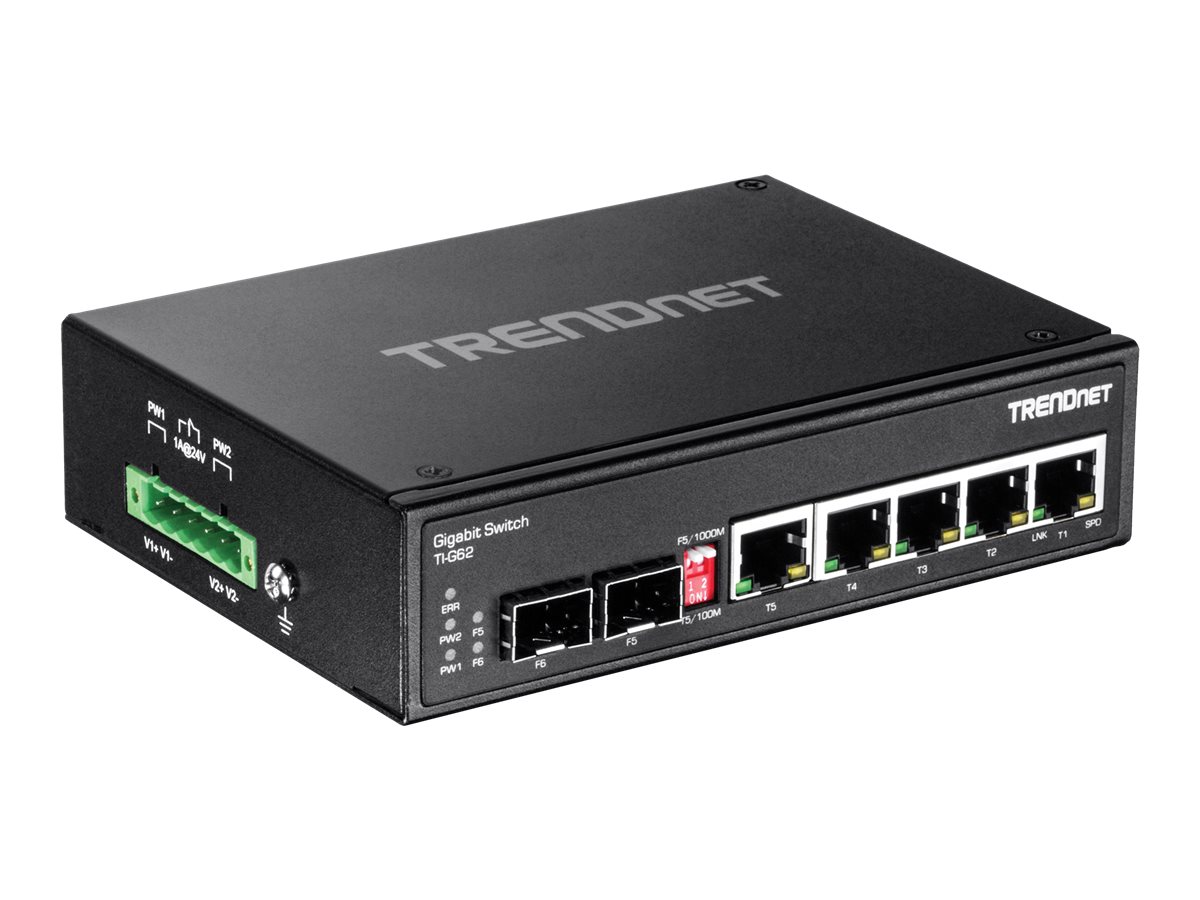

TRENDnet TI-G62 - Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
TRENDnet TI-G62 - Switch
- unmanaged
- 5 x 100/1000/10000 + 1 x shared Gigabit SFP + 1 x SFP
- DIN rail mountable, wall-mountable
- DC power
| Additional Details | |
|---|---|
| Price: | |
| Mfr Part #: | TI-G62 |
| SHI Part #: | 30911608 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | TRENDnet |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | TRENDnet TI-G62 - Switch - unmanaged - 5 x 100/1000/10000 + 1 x shared Gigabit SFP + 1 x SFP - DIN rail mountable, wall-mountable - DC power |
| Manufacturer | TRENDnet |
| MSRP | $209.99 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 3.6 cm |
| Dimensions & Weight / Height | 10.4 cm |
| Dimensions & Weight / Weight | 514 g |
| Dimensions & Weight / Width | 14.3 cm |
| Header / Brand | TRENDnet |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor |
|
| Networking / Ports Qty | 6 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 3-year warranty |
| Dimensions & Weight | |
| Depth | 3.6 cm |
| Height | 10.4 cm |
| Weight | 514 g |
| Width | 14.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Device Type | Switch - 6 ports - unmanaged |
| Enclosure Type | DIN rail mountable, wall-mountable |
| Features | Auto-negotiation, store and forward, half duplex mode, full duplex mode, built-in DIP switch, 8KV ESD Protector, 6KV Surge protection |
| Jumbo Frame Support | 9KB |
| MAC Address Table Size | 2K entries |
| Performance |
|
| Ports | 5 x 100/1000/10000 + 1 x shared Gigabit SFP + 1 x SFP |
| RAM | 1024 KB |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Compliant Standards | EN55022, EN55024, RoHS, WEEE, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, EN 55011, FCC Part 15 B Class A, IP30 |
| Included Accessories | DIN-rail mounting kit, wall mounting kit, removable terminal block |
| MTBF | 510,304 hours |
| Power | |
| Max Supported Qty | 2 |
| Power Consumption Operational | 3.84 Watt |
| Power Device | External power adapter (not included) |
| Power Redundancy | Yes |
| Voltage Required | DC 12 - 56 V |
