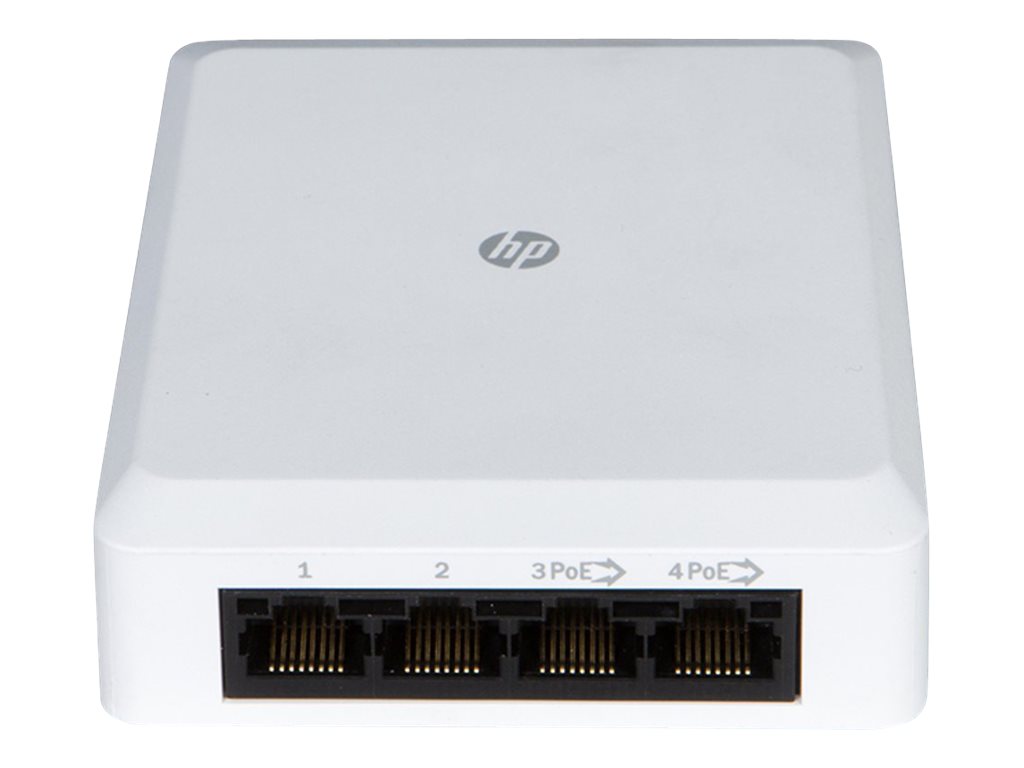

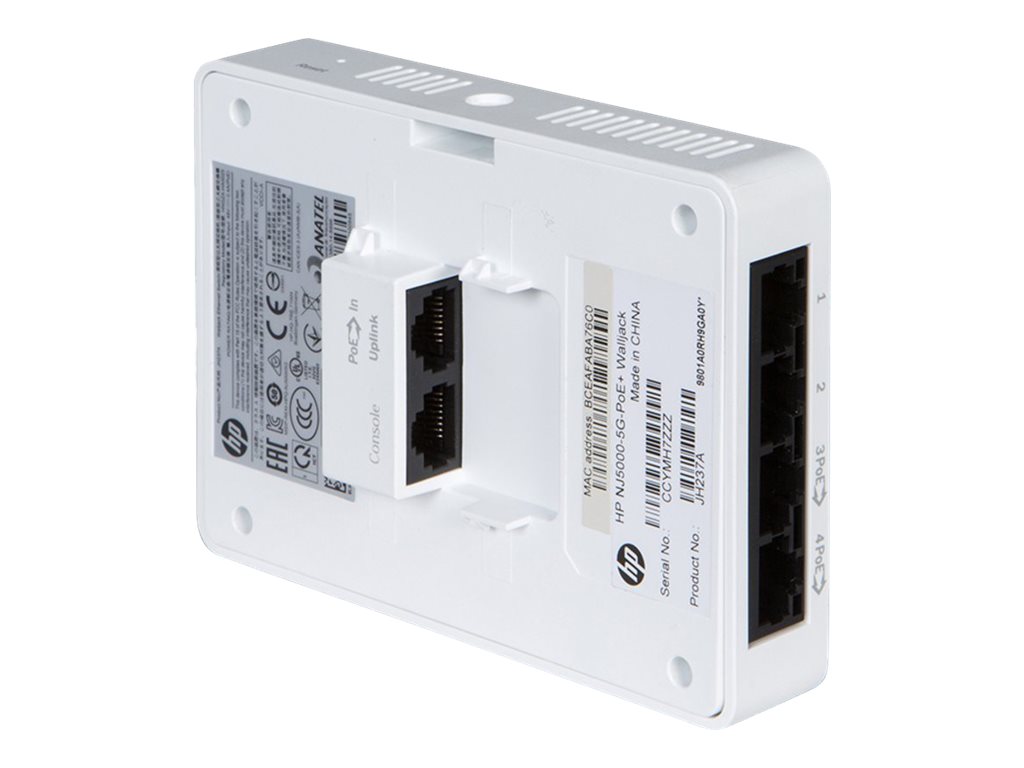

HPE NJ5000-5G-PoE+ Walljack

Login for Price
HPE NJ5000-5G-PoE+ Walljack
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • managed x 10/100/1000 (PoE+) (uplink) + 4 x 10/100/1000 (downlink)
  • desktop, wall-mountable, flush-mountable
  • PoE+
HPE NJ5000-5G-PoE+ Walljack
  • Switch
  • managed x 10/100/1000 (PoE+) (uplink) + 4 x 10/100/1000 (downlink)
  • desktop, wall-mountable, flush-mountable
  • PoE+
  Additional Details
Mfr Part #: JH237A
SHI Part #: 30739975
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware
General Information
CategoryNetwork switches
DescriptionHPE NJ5000-5G-PoE+ Walljack - Switch - managed x 10/100/1000 (PoE+) (uplink) + 4 x 10/100/1000 (downlink) - desktop, wall-mountable, flush-mountable - PoE+
ManufacturerHewlett Packard Enterprise
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth3.5 cm
Dimensions & Weight / Height12 cm
Dimensions & Weight / Weight200 g
Dimensions & Weight / Width8.6 cm
Header / BrandHPE
Miscellaneous / Product ColorWhite
Networking / Form Factor
  • Desktop
  • Flush-mountable
  • Wall-mountable
Networking / Ports Qty5
Networking / TypeSwitch
Packaged Quantity1
Service & Support / TypeLimited lifetime warranty
Dimensions & Weight
Depth3.5 cm
Height12 cm
Weight200 g
Width8.6 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Humidity Range Storage5 - 95% (non-condensing)
Max Operating Temperature45 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Interfaces
  • 1 x 1000Base-T RJ-45 PoE+ / uplink
  • 1 x 1000Base-T RJ-45 downlink
  • 1 x serial (console) RJ-45 management
General
Authentication MethodRADIUS
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az
Device TypeSwitch - 5 ports - managed
Enclosure TypeDesktop, wall-mountable, flush-mountable
Encryption AlgorithmSSL
FeaturesFlow control, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, WRR queuing, half duplex mode, full duplex mode, STP support, RSTP support, MSTP support, QoS, MLD snooping, STP Root Guard, dynamic ARP protection, 512KB packet buffer, port isolation, Ingress Layer 2 MAC ACLs, CoS, SP, administrator's password, BPDU, cable management
Flash Memory32 MB
Jumbo Frame Support9600 bytes
MAC Address Table Size8192 entries
Performance
  • Throughput (64-byte packet size): up to 7.4 Mpps
  • Switching capacity: 10 Gbps
PortsX 10/100/1000 (PoE+) (uplink) + 4 x 10/100/1000 (downlink)
Power Over Ethernet (PoE)PoE+
Processor1: 500 MHz
RAM128 MB
Remote Management ProtocolSNMP 1, RMON 2, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, SSH
SubtypeGigabit Ethernet
Manufacturer Warranty
Service & Support
  • Limited warranty - advance hardware replacement - lifetime - response time: next business day
  • Technical support - phone consulting - 3 years
Miscellaneous
Compliant StandardsCISPR 22 Class A, EN 60950, IEC 60950, EN 61000-3-3, EN55024, EN55022 Class A, UL 60950, CSA 22.2 No. 60950, ICES-003 Class A, RoHS, WEEE, FCC Part 15 A, VCCI Class A, EN 61000-3-2:2000
MTBF50 years
