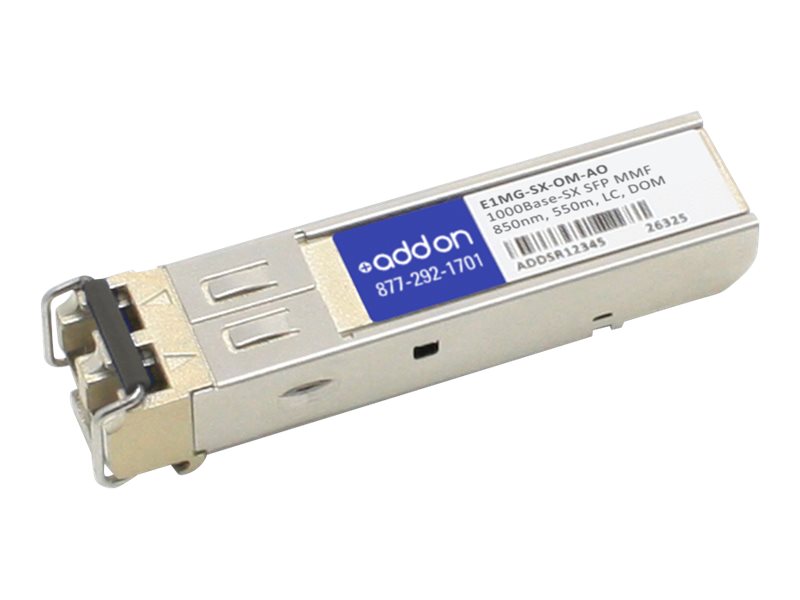

AddOn Brocade E1MG-SX-OM Compatible SFP Transceiver

MSRP$68.00

$45.00

AddOn Brocade E1MG-SX-OM Compatible SFP Transceiver

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
SFP (mini-GBIC) transceiver module (equivalent to: Brocade E1MG-SX-OM) GigE 1000Base-SX, Fibre Channel LC multi-mode up to 550 m

AddOn Brocade E1MG-SX-OM Compatible SFP Transceiver

SFP (mini-GBIC) transceiver module (equivalent to: Brocade E1MG-SX-OM)
GigE
1000Base-SX, Fibre Channel
LC multi-mode
up to 550 m
830-860 (TX) / 770-860 (RX) nm
for Brocade BigIron RX-8; ICX 64XX, 66XX, 7750; ServerIron ADX 1000; VDX 67XX

Additional Details
Price:	$45.00
MSRP:	$68.00
Mfr Part #:	E1MG-SX-OM-AO
SHI Part #:	29318143
Category:	Transceivers
UNSPSC:	43201553
Manufacturer:	AddOn Networks
Product Type:	Hardware

General Information
Category	Transceivers
Description	AddOn Brocade E1MG-SX-OM Compatible SFP Transceiver - SFP (mini-GBIC) transceiver module (equivalent to: Brocade E1MG-SX-OM) - GigE - 1000Base-SX, Fibre Channel - LC multi-mode - up to 550 m - 830-860 (TX) / 770-860 (RX) nm - for Brocade BigIron RX-8; ICX 64XX, 66XX, 7750; ServerIron ADX 1000; VDX 67XX
Manufacturer	AddOn Networks
MSRP	$68.00
UNSPSC	43201553
Main Specifications
Header / Brand	AddOn
Networking / Connectivity Technology	Wired
Networking / Data Link Protocol	Gigabit Ethernet
Networking / Data Transfer Rate	1.25 Gbps
Networking / Form Factor	Plug-in module
Networking / Type	SFP (mini-GBIC) transceiver module
Packaged Quantity	1
Compatibility Information
Designed For	Brocade BigIron RX-16, RX-32 AC system, RX-32 DC system, RX-4, RX-8 Brocade FastIron GS 624P, 624P-DC-EPREM, 624P-DC-STK, 624P-EPREM, 624P-POE, 624P-POE-DC-EPREM, 624P-POE-DC-STK, 624P-POE-EPREM, 624P-POE-STK, 624P-STK, 624P-STK-CXU, 648P, 648P-DC-EPREM, 648P-DC-STK, 648P-EPREM, 648P-POE, 648P-POE-DC-EPREM, 648P-POE-DC-STK, 648P-POE-EPREM, 648P-POE-STK, 648P-STK Brocade FastIron LS FLS624, FLS624-STK, FLS648, FLS648-EPREM, FLS648-STK Brocade FastIron SuperX SX800-DC Brocade FastIron SX 1600, 800 Brocade ICX 6430-24, 6430-24P, 6430-48, 6430-48P, 6430-C12, 6450-24, 6450-24P, 6450-48, 6450-48P, 6450-C12-PD, 6610-24, 6610-24F, 6610-24P, 6610-48, 6610-48P, 6650-32, 6650-40, 6650-48, 6650-56, 6650-80, 7750-26Q, 7750-48C, 7750-48F Brocade ServerIron ADX 1000, 10000, 1000-DC, 1000F, 1000-PREM, 1000-SSL, 1000-SSL-PREM, 4000, 8000 Brocade TurboIron 24x Brocade VDX 6710, 6720, 6730, 6740, 6740T, 6740T-1G
Expansion / Connectivity
Interfaces	1 x Fibre Channel / Ethernet 1000Base-SX - LC multi-mode x 2
General
Device Type	SFP (mini-GBIC) transceiver module
Form Factor	Plug-in module
Miscellaneous
Compliant Standards	21 CFR 1040.10, 21 CFR 1040.11, CISPR 22 Class B, Directive 2002/95/CE, EN 60825-1, EN 60825-2, EN 60950, EN55022 Class B, FCC Part 15 B, IEC 60825-1, IEC 60825-2, IEC 61000-4-2, IEC 61000-4-3, MIL-STD-883, VCCI Class B, MSA SFF-8074i
OEM Manufacturer Equivalent Part Number	Brocade E1MG-SX-OM
Networking
Cabling Type	1000Base-SX, Fibre Channel
Connectivity Technology	Wired
Data Link Protocol	1GbE
Data Transfer Rate	1.25 Gbps
Features	Digital Optical Monitoring (DOM) support
Max Transfer Distance	550 m
Optical Wave Length	830-860 (TX) / 770-860 (RX) nm
