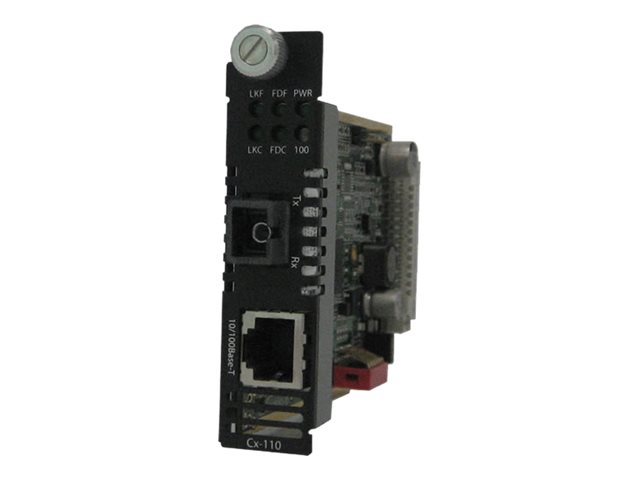

Perle C-110-M1SC2U - Fiber media converter
MSRP$439.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Perle C-110-M1SC2U - Fiber media converter
- 100Mb LAN
- 10Base-T, 100Base-FX, 100Base-BX-U
- RJ-45 / SC multi-mode
- up to 2 km
- 1310 (TX) / 1550 (RX) nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $439.00 |
| Mfr Part #: | 05041910 |
| SHI Part #: | 29295130 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Perle C-110-M1SC2U - Fiber media converter - 100Mb LAN - 10Base-T, 100Base-FX, 100Base-BX-U - RJ-45 / SC multi-mode - up to 2 km - 1310 (TX) / 1550 (RX) nm |
| Manufacturer | Perle Systems |
| MSRP | $439.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Weight | 150 g |
| Header / Brand | Perle |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 100 Mbps |
| Networking / Form Factor | Plug-in module |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Weight | 150 g |
| Dimensions & Weight (Shipping) | |
| Shipping Depth | 15.2 cm |
| Shipping Height | 3.8 cm |
| Shipping Weight | 330 g |
| Shipping Width | 20.3 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | Plug-in module |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN55024, EN55022 Class A, RoHS, Laser Class 1, UL 60950-1, WEEE, FCC Part 15 A, REACH, IEC 60825, CISPR 24:2010, EN 55024:2010, FDA 21CFR1040.10, EN 60825-1:2007, FDA 21CFR1040.11, EN 55032:2015 Class A, CISPR 32:2015 Class A, IEC 60950-1 (2nd Edition) + A1 + A2, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, EN61000-3-2 |
| MTBF | 598,000 hours |
| Networking | |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-BX-U |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3xy |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Features | Auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), MAC address filtering, Far End Fault (FEF), half duplex mode, full duplex mode, tagged VLAN, Link Pass-Through, Loopback, 1.5 KV Magnetic Isolation |
| MAC Address Table Size | 1024 entries |
| Max Transfer Distance | 2 km |
| Optical Wave Length | 1310 (TX) / 1550 (RX) nm |
| Status Indicators | Power, test mode, receive, link/activity |
