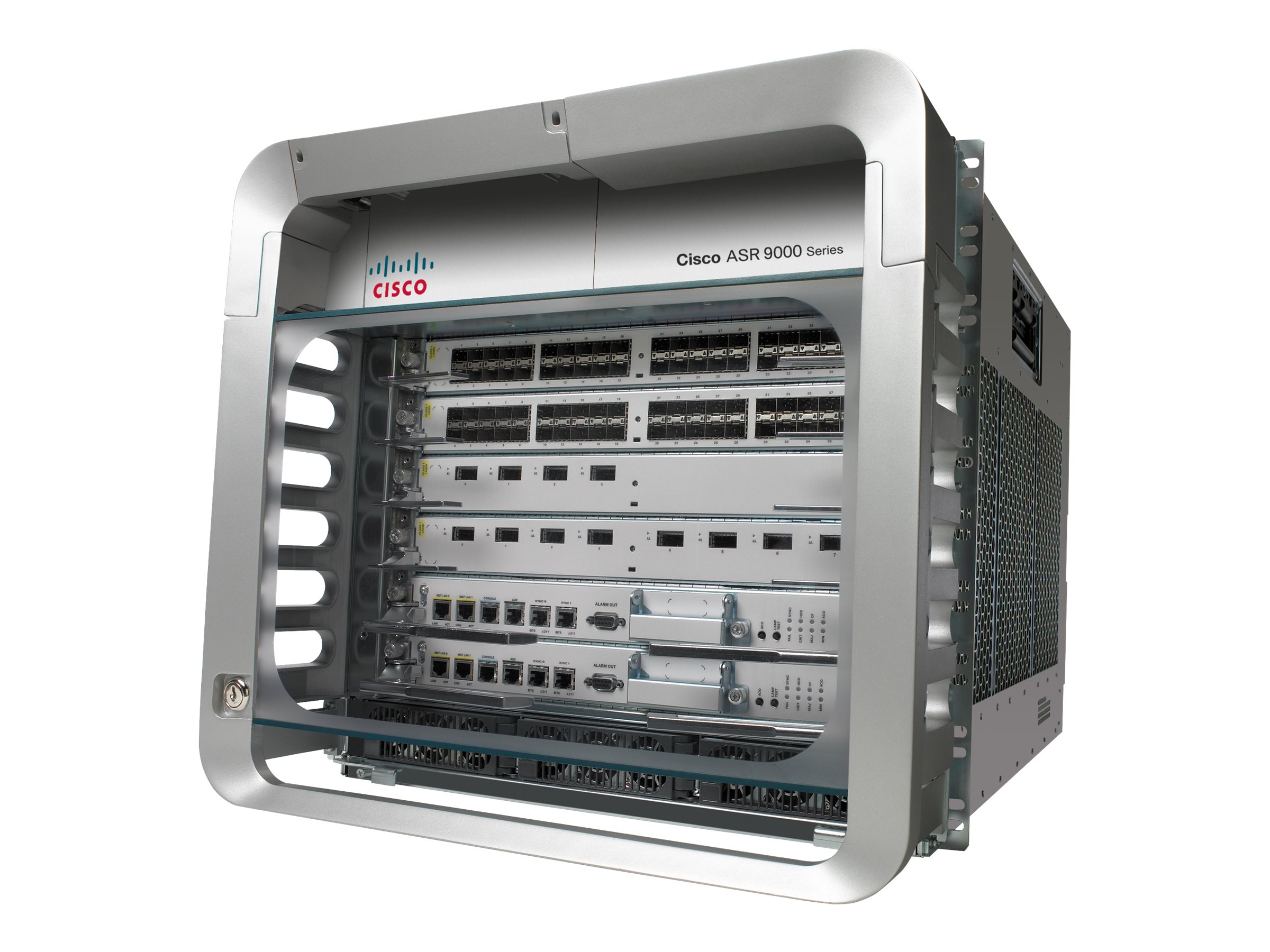

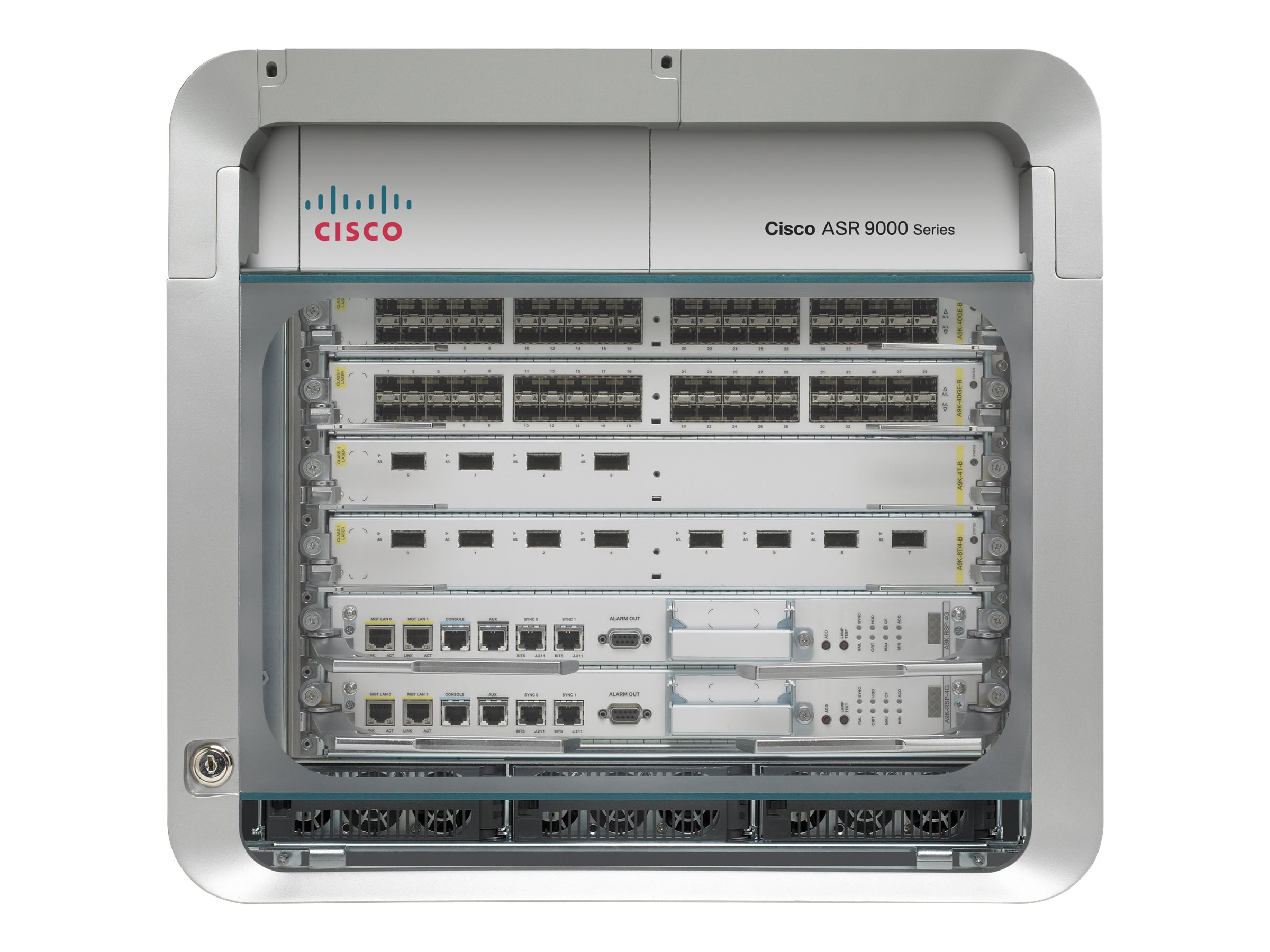

Cisco ASR 9006 - Modular expansion base
MSRP$13,443.02
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

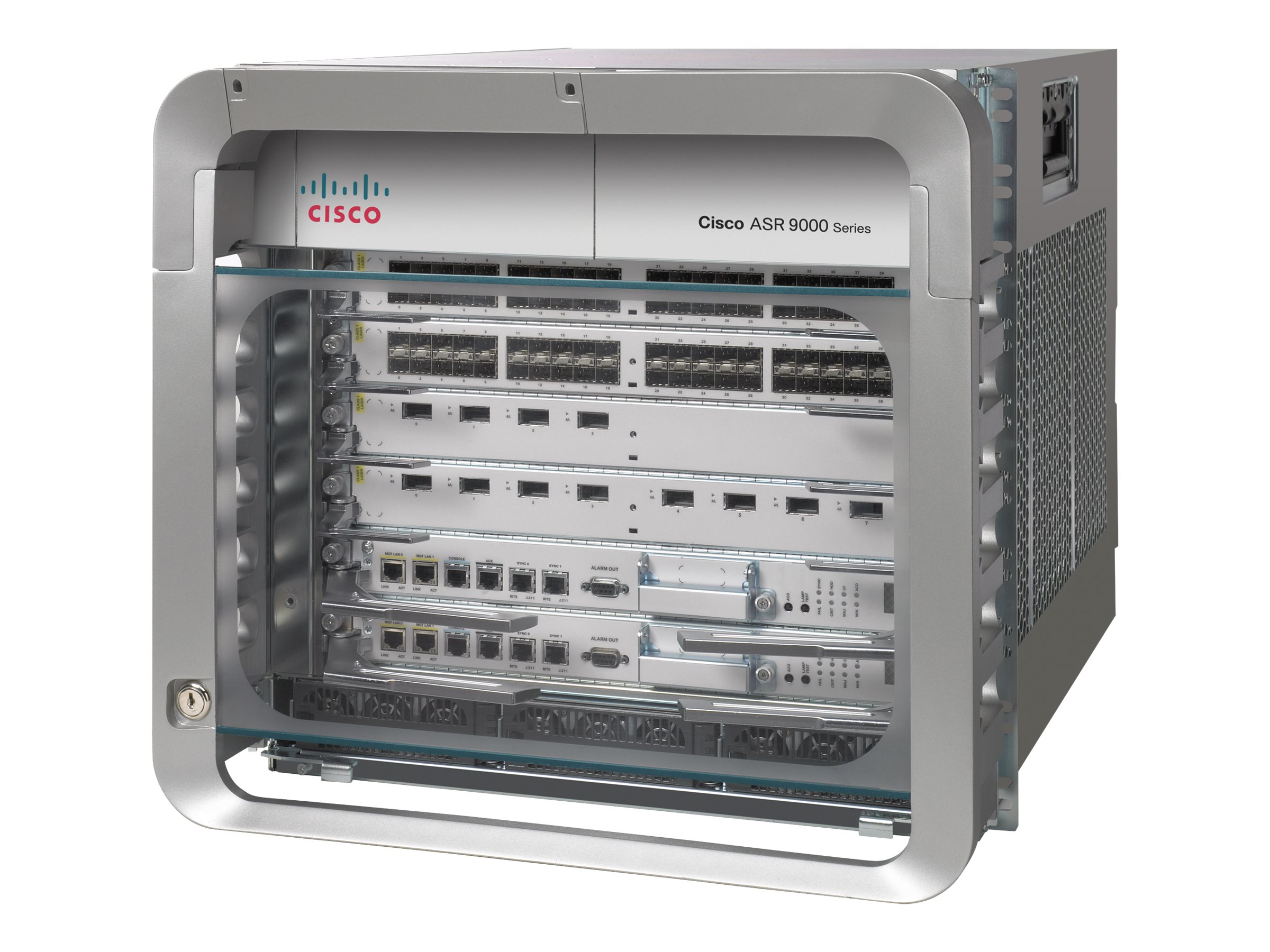

Cisco ASR 9006 - Modular expansion base
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $13,443.02 |
| Mfr Part #: | ASR-9006-DC-V2= |
| SHI Part #: | 29238788 |
| Category: | Network chassis |
| UNSPSC: | 43201602 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network chassis |
| Description | Cisco ASR 9006 - Modular expansion base - rack-mountable |
| Manufacturer | Cisco Systems |
| MSRP | $13,443.02 |
| UNSPSC | 43201602 |
| Main Specifications | |
| Dimensions & Weight / Depth | 72.7 cm |
| Dimensions & Weight / Height | 44.4 cm |
| Dimensions & Weight / Weight | 39.7 kg |
| Dimensions & Weight / Width | 44.4 cm |
| Header / Brand | Cisco |
| Networking / Connectivity Technology | Wired |
| Networking / Form Factor |
|
| Networking / Type | Modular expansion base |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 72.7 cm |
| Height | 44.4 cm |
| Weight | 39.7 kg |
| Width | 44.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Installed Modules Qty (Max) | 0 (installed) / 6 (max) |
| General | |
| Compliant Standards | ETSI, BSMI, CISPR 22 Class A, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-8, VCCI Class A ITE, EN55024, EN50082-1, EN 61000-6-1, ACA TS001, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, EN 61000-4-8, EN 60825, FDA, EN 300 386 |
| Connectivity Technology | Wired |
| Device Type | Modular expansion base |
| Enclosure Type | Desktop, rack-mountable - modular - 10U |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Power | |
| Installed Qty | 6 (max) |
| Power Device | Internal power supply (not installed) |
| Power Redundancy | Yes |
| Voltage Required | DC -40 -72 V (50/60 Hz) |
