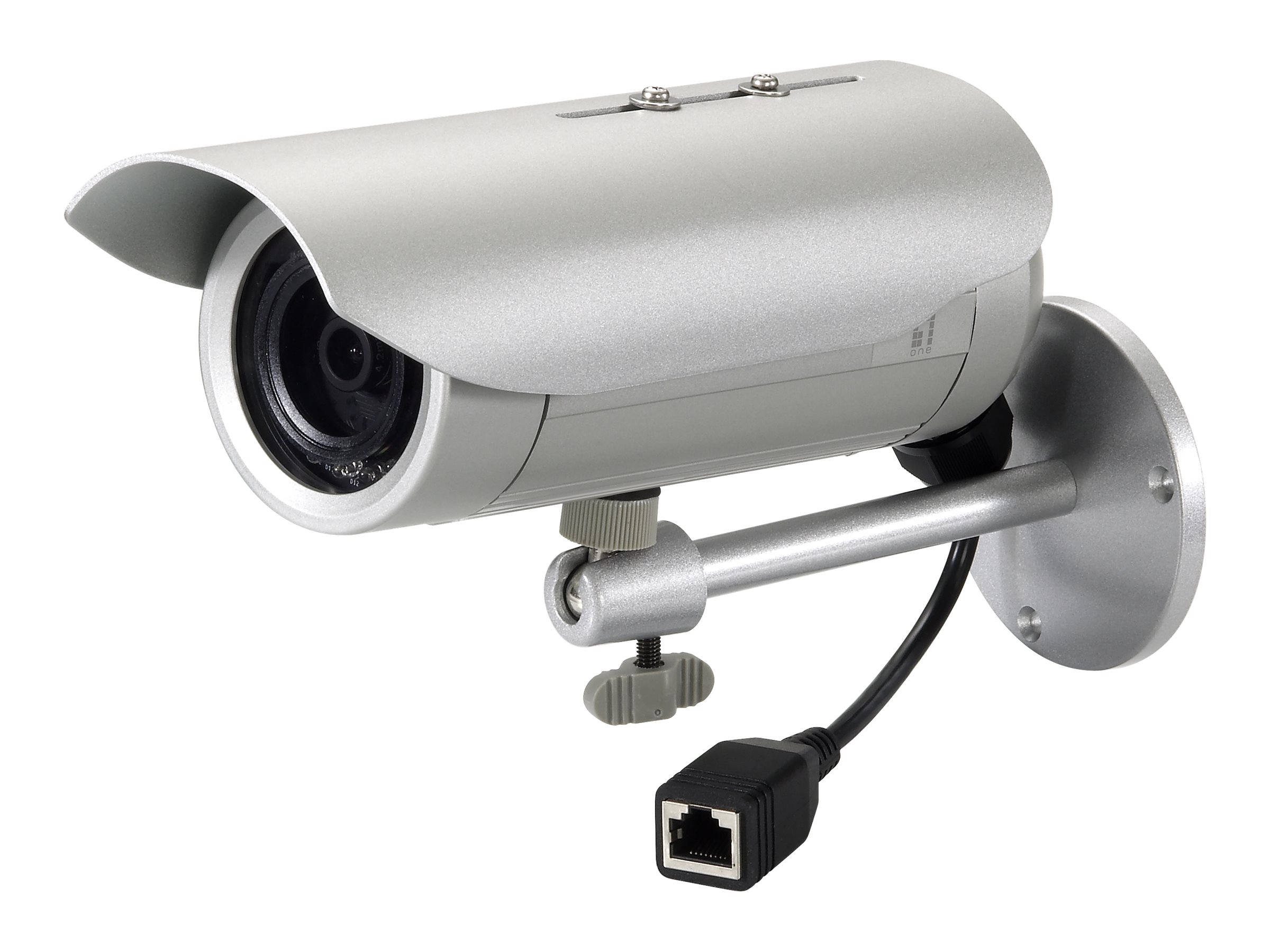

LevelOne 5-MP FCS-5063 PoE WDR
MSRP$767.99
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
LevelOne 5-MP FCS-5063 PoE WDR
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $767.99 |
| Mfr Part #: | FCS-5063 |
| SHI Part #: | 29151691 |
| Category: | Network management system |
| UNSPSC: | 43222634 |
| Manufacturer: | CP Technologies |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network management system |
| Description | LevelOne 5-MP FCS-5063 PoE WDR |
| Manufacturer | CP Technologies |
| MSRP | $767.99 |
| UNSPSC | 43222634 |
| Main Specifications | |
| C.P.U. | NV-CAM |
| Dimensions & Weight / Weight | 002.10 |
| Height | 003.75 |
| Length | 009.25 |
| UPC | 0846359034286 |
| Width | 008.00 |
| Camera | |
| Digital Video Format | MJPEG, H.264, RAW |
| Exposure Range | 1/5 sec - 1/10000 sec |
| Features | Manual white balance, Backlight Compensation (BLC), manual exposure, sharpness control, progressive scanning, saturation control, brightness control, contrast control, Wide Dynamic Range (WDR), ONVIF support, 2D Noise Reduction Technology, infrared cut filter, dual video stream, reset button, microSD/SDHC/SDXC Memory Card slot, built-in IR LED lights, auto gain control, auto white balance |
| Infrared Distance | 30 m |
| Infrared LEDs | 15 |
| Max Digital Video Resolution | 2592 x 1944 |
| Minimum Illumination |
|
| Type | Color - Day&Night - fixed - outdoor - vandal / weatherproof |
| Video Capture |
|
| Environmental Parameters | |
| Max Operating Temperature | 50 °C |
| Min Operating Temperature | -40 °C |
| Relative Humidity (operating) | 10 - 85% (non-condensing) |
| Expansion / Connectivity | |
| Ports | LAN/power - RJ-45 |
| General | |
| Camera Mount Type | Wall mount |
| Connectivity Technology | Wired |
| Depth | 20.2 cm |
| Device Type | Network surveillance camera |
| Height | 9.5 cm |
| Weight | 704 g |
| Width | 23.2 cm |
| Image Sensor | |
| Type | 5 MP CMOS 1/3.2" |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP, ICMP, SNMP, RTSP, RTP, HTTPS, UPnP, IPv6, Bonjour, PPPoE, IGMP |
| Lens Construction | |
| Focal Length | 4.2 mm |
| Horizontal Field of View (degree) | 62.7 |
| Lens Iris | Fixed iris |
| Type | Fixed focal |
| Miscellaneous | |
| Compliant Standards | FCC, NEMA Type 4X, IK10, IP68 |
| Included Accessories | Mounting kit |
| Power | |
| Power Device | 4.8 Watt |
| Power Requirements | PoE |
| Software / System Requirements | |
| OS Required | Microsoft Windows Vista / XP / 7 / 8 |
| Software Included | Drivers & Utilities |
