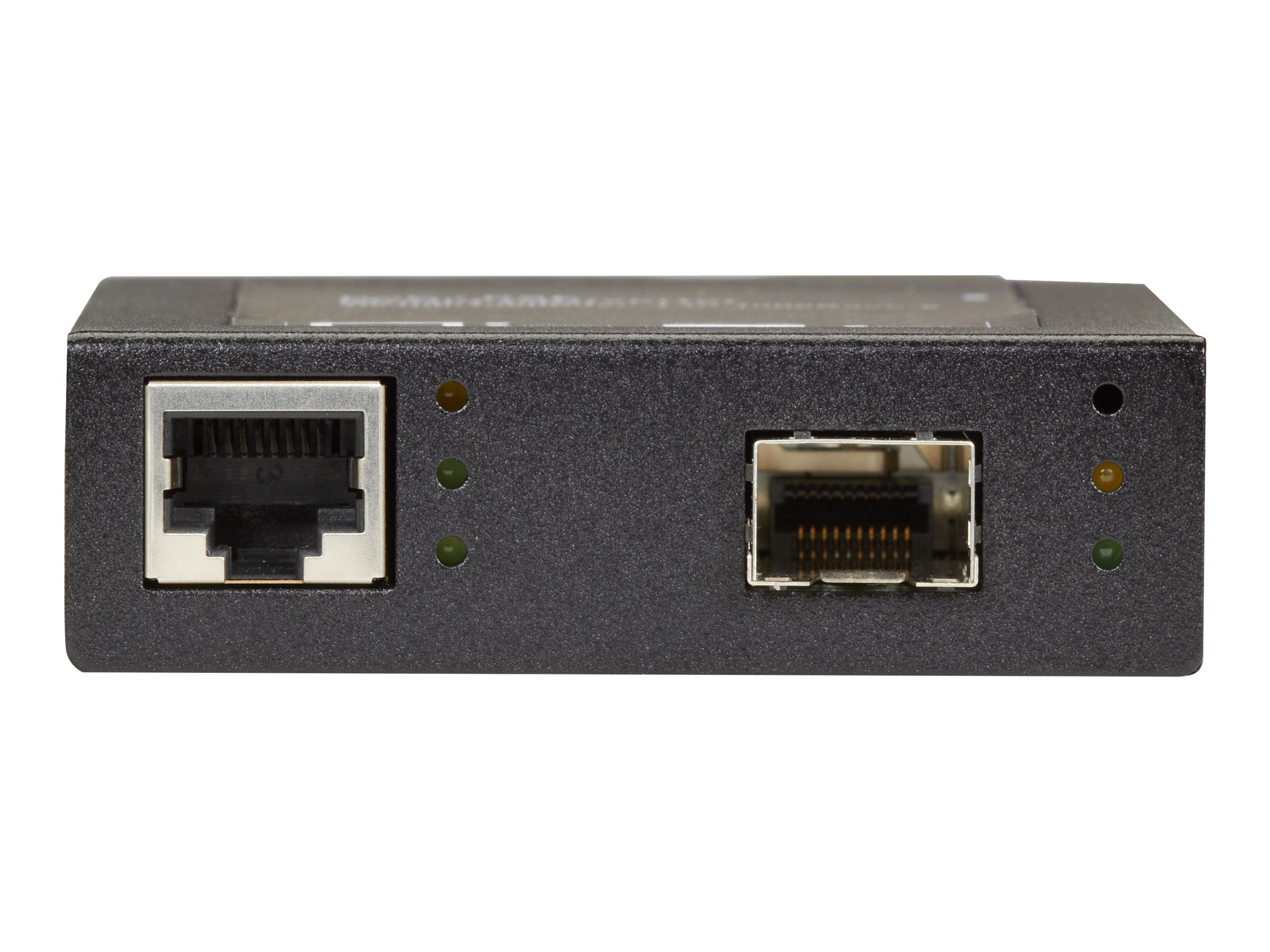

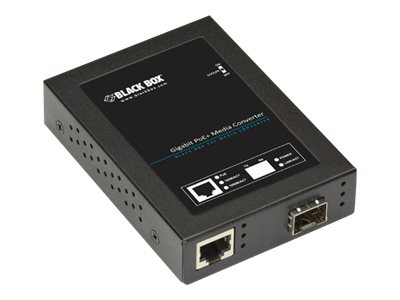

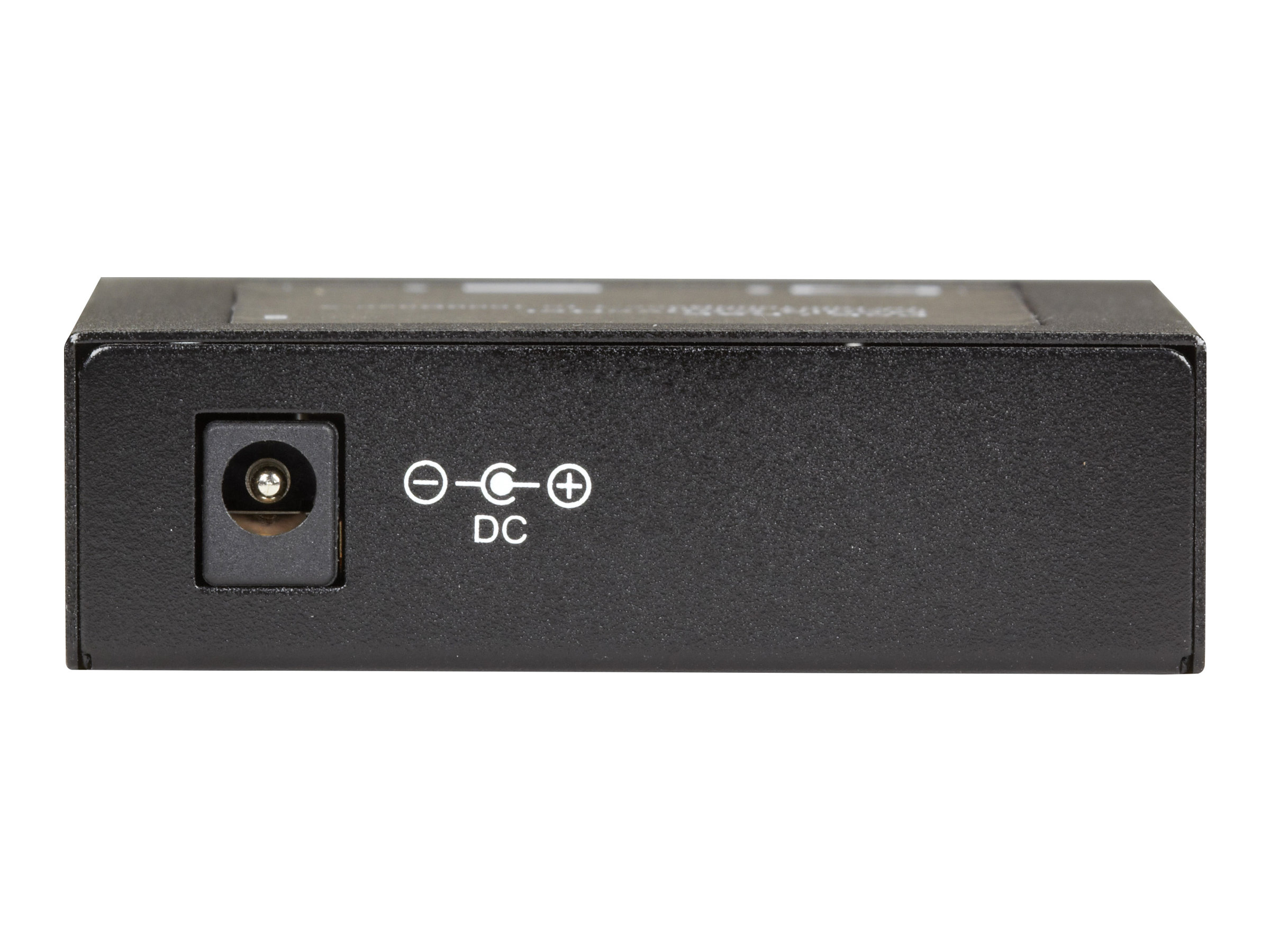

Black Box PoE+ PSE Media Converter
MSRP$308.62
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Black Box PoE+ PSE Media Converter
- Fiber media converter
- GigE
- 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X
- RJ-45 / SFP (mini-GBIC)
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $308.62 |
| Mfr Part #: | LPS535A-SFP |
| SHI Part #: | 29027402 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Black Box |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Black Box PoE+ PSE Media Converter - Fiber media converter - GigE - 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X - RJ-45 / SFP (mini-GBIC) |
| Manufacturer | Black Box |
| MSRP | $308.62 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 10.2 cm |
| Dimensions & Weight / Height | 2.2 cm |
| Dimensions & Weight / Weight | 240 g |
| Dimensions & Weight / Width | 7.4 cm |
| Header / Brand | Black Box |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 10.2 cm |
| Height | 2.2 cm |
| Weight | 240 g |
| Width | 7.4 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 1 year |
| Miscellaneous | |
| Compliant Standards | FCC Class A certified |
| Networking | |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3at |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Auto-uplink (auto MDI/MDI-X), Link Fault Pass Through function (LFP), PoE+, Link Lost Forwarding (LLF) |
| Power | |
| Power Consumption Operational | 33 Watt |
| Power Device | External power adapter |
| Power Over Ethernet (PoE) | PoE+ |
| Voltage Required | AC 120/230 V (50/60 Hz) |
