Perle IDS-105G-SFP - Switch
MSRP$310.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

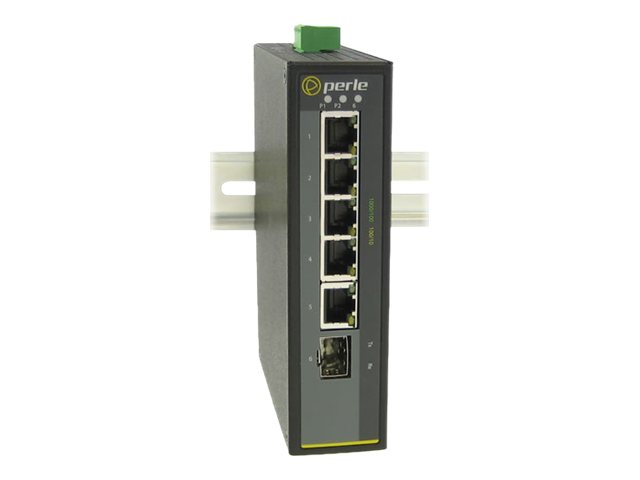

Perle IDS-105G-SFP - Switch
- unmanaged
- 5 x 10/100/1000 + 1 x SFP
- DIN rail mountable
- DC power
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $310.00 |
| Mfr Part #: | 07011130 |
| SHI Part #: | 28239431 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Perle IDS-105G-SFP - Switch - unmanaged - 5 x 10/100/1000 + 1 x SFP - DIN rail mountable - DC power |
| Manufacturer | Perle Systems |
| MSRP | $310.00 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 11.1 cm |
| Dimensions & Weight / Height | 13.8 cm |
| Dimensions & Weight / Weight | 320 g |
| Dimensions & Weight / Width | 3.55 cm |
| Header / Brand | Perle |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | DIN rail mountable |
| Networking / Ports Qty | 6 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 5-year warranty |
| Dimensions & Weight | |
| Depth | 11.1 cm |
| Height | 13.8 cm |
| Weight | 320 g |
| Width | 3.55 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| Max Operating Temperature | 60 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -25 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az |
| Device Type | Switch - 6 ports - unmanaged |
| Enclosure Type | DIN rail mountable |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Jumbo Frames support, fanless, Energy Efficient Ethernet, 1MB packet buffer |
| Jumbo Frame Support | 10KB |
| MAC Address Table Size | 8K entries |
| Ports | 5 x 10/100/1000 + 1 x SFP |
| Status Indicators | Port transmission speed, power, link/activity |
| Subtype | Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Miscellaneous | |
| Compliant Standards | CISPR 24, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, CISPR 22, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, UL 508, FCC CFR47 Part 15 B, REACH, EN 60825-1, IP30, EN 55024:2010 |
| MTBF | 489,383 hour(s) |
| Power | |
| Features | Redundant Power System (RPS) connector |
| Power Consumption Operational | 12 Watt |
| Power Device | Internal power supply |
| Voltage Required | DC 12/24/48 V |
