Hardware Networking and Security Hubs and Switches

Hubs and Switches

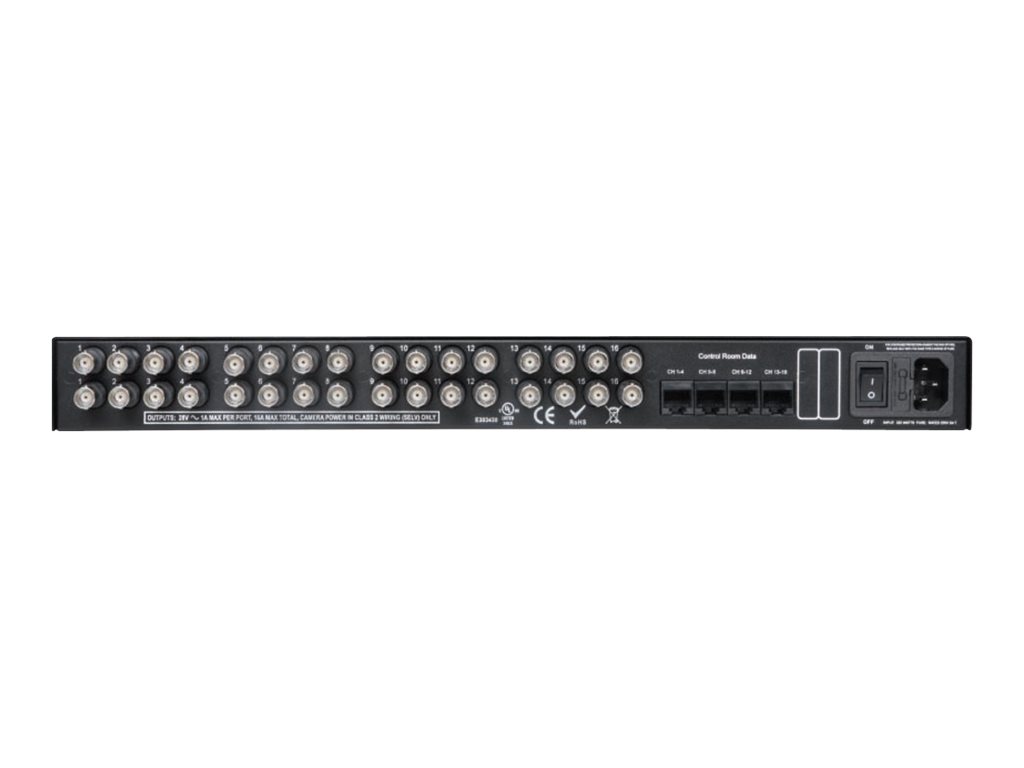

16-CH POWER SUPPLY STUBEQ RECEIVER HUB

Mfr Part #:

Copied To Clipboard

Click To Copy

SHI Part #:

Copied To Clipboard

Click To Copy

Quick Details
No quick details available - View Product Specs

16-CH POWER SUPPLY STUBEQ RECEIVER HUB

General Information
Category	Hubs or concentrators
Description	16-CH POWER SUPPLY STUBEQ RECEIVER HUB
Manufacturer	NVT Phybridge
UNSPSC	43222610
Main Specifications
Dimensions & Weight / Depth	30 cm
Dimensions & Weight / Height	4.5 cm
Dimensions & Weight / Weight	10.66 kg
Dimensions & Weight / Width	43 cm
Header / Brand	Phybridge
Dimensions & Weight (Shipping)
Shipping Weight	14.5 kg
Environmental Parameters
Humidity Range Operating	0 - 95% (non-condensing)
Max Operating Temperature	50 °C
Min Operating Temperature	-20 °C
General
Depth	30 cm
Height	4.5 cm
Type	Video receiver hub / power injector
Weight	10.66 kg
Width	43 cm
Manufacturer Warranty
Warranty	Limited lifetime warranty
Power
Frequency	50/60 Hz
Power Consumption	500 Watt
Voltage Required	AC 120/230 V
Studio & Production Equipment
Features	1U rack-mountable, Adaptive StubEQ 2-band equalization, transient protection
Terminals
Terminals	(16) x TP input - RJ-45 (4) x TP output - RJ-45 (16) x composite video output - BNC x 2

	Product	Qty	Price

We currently have limited stock of this product.
For availability options and shipping info, contact your sales team.

Overview
