Juniper Networks JSA Series JSA7500
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

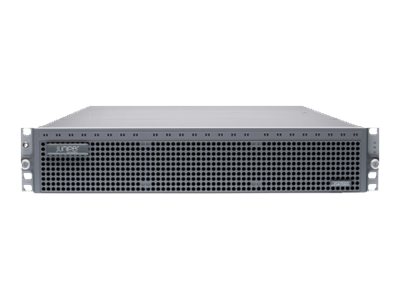

Juniper Networks JSA Series JSA7500
- Security appliance
- 4 ports
- GigE
- front to back airflow
- 2U
- rack-mountable
| Additional Details | |
|---|---|
| Mfr Part #: | JSA7500-BSE |
| SHI Part #: | 27705074 |
| Category: | Firewall appliances |
| UNSPSC: | 43222501 |
| Manufacturer: | Juniper Networks |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Firewall appliances |
| Description | Juniper Networks JSA Series JSA7500 - Security appliance - 4 ports - GigE - front to back airflow - 2U - rack-mountable |
| Manufacturer | Juniper Networks |
| UNSPSC | 43222501 |
| Main Specifications | |
| Dimensions & Weight / Depth | 43.84 cm |
| Dimensions & Weight / Height | 8.8 cm |
| Dimensions & Weight / Weight | 28.6 kg |
| Dimensions & Weight / Width | 59.75 cm |
| Header / Brand | Juniper Networks |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 4 |
| Networking / Type | Security appliance |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Environmental Parameters | |
| Humidity Range Operating | 8 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 5 °C |
| Expansion / Connectivity | |
| Expansion Slots | 2 (total) / 2 (free) x expansion slot |
| Interfaces |
|
| General | |
| Depth | 43.84 cm |
| Device Type | Security appliance |
| Height | 8.8 cm |
| Height (Rack Units) | 2U |
| Weight | 28.6 kg |
| Width | 59.75 cm |
| Manufacturer Warranty | |
| Service & Support |
|
| Miscellaneous | |
| Compliant Standards | NEBS level 3, FCC Class A certified, EN 61000-3-2, EN55024, EN55022 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, CAN/CSA C22.2 No. 60950-1-03, PCI DSS, HIPAA, SOX, VCCI Class A |
| Networking | |
| Airflow Direction | Front to back airflow |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Encryption Algorithm | SHA |
| Features | Flow control, store and forward, sFlow, J-Flow, redundant hot swappable fans, IPFIX |
| Form Factor | Rack-mountable |
| Performance |
|
| Ports Qty | 4 |
| Power | |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Power Device | Internal power supply - hot-plug |
| Power Provided | 750 Watt |
| Power Redundancy | Yes |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Processor / Memory / Storage | |
| Hard Drive | HDD 900 GB x 28 - SATA 3Gb/s / SAS |
| Processors Installed | 2 x |
| RAID Level | RAID 10 |
| RAM | 128 GB |
