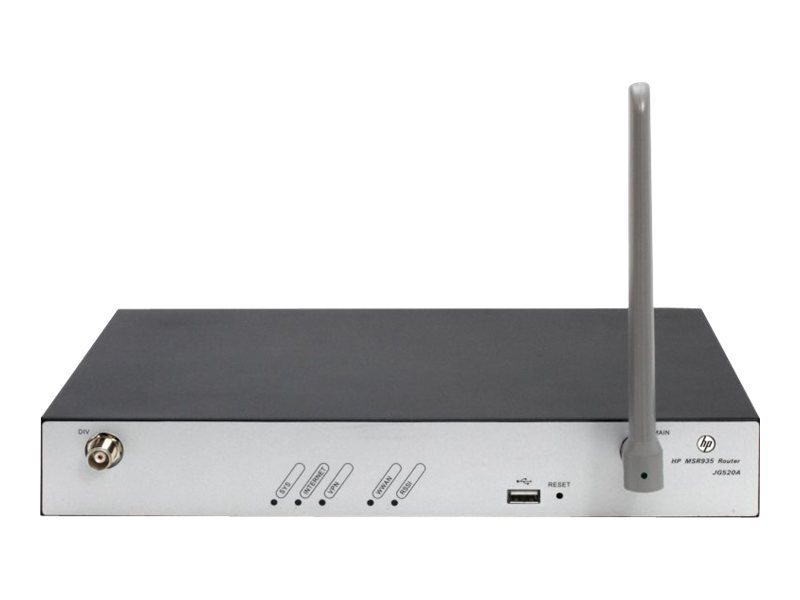

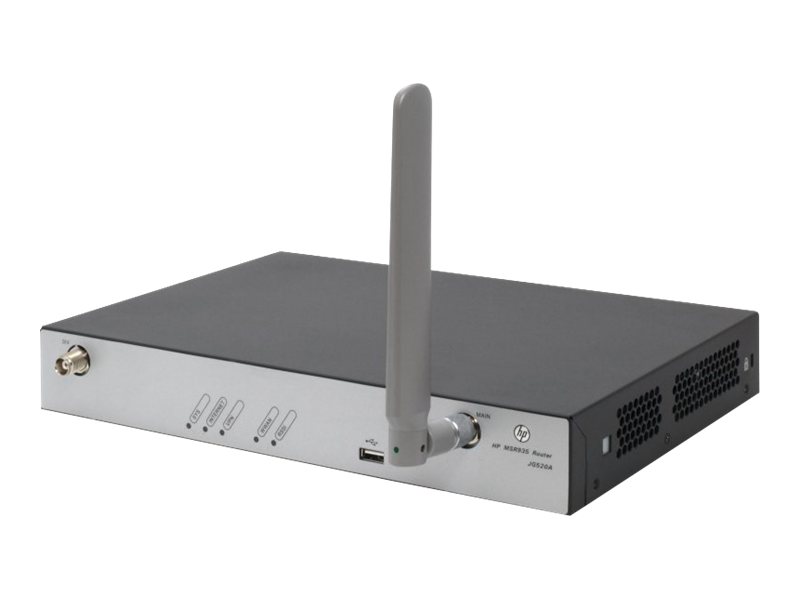

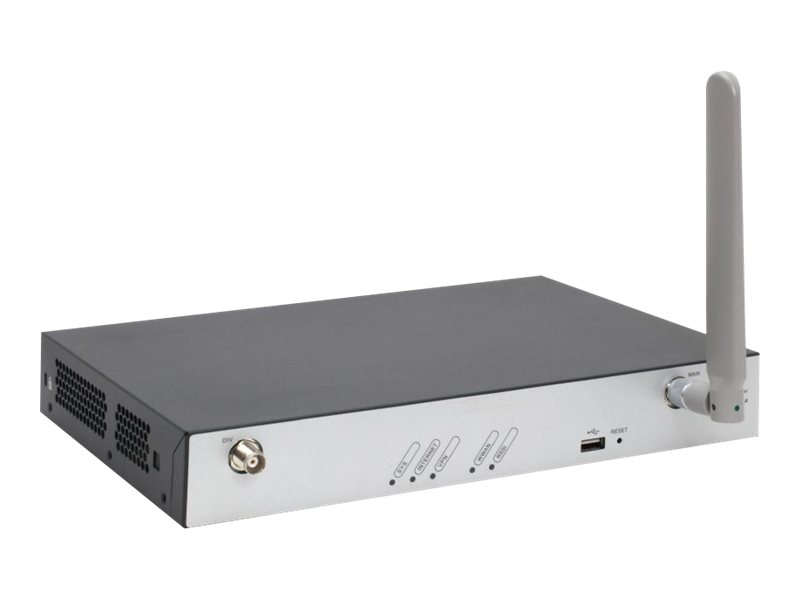

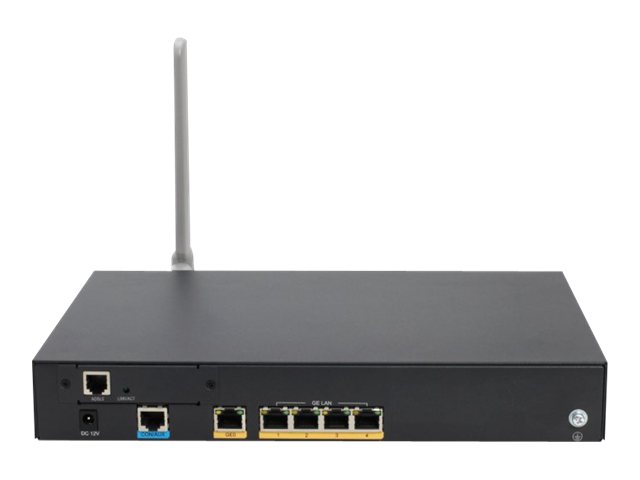

HPE MSR935 3G Router
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE MSR935 3G Router
- Router 4-port switch
- 1GbE
| Additional Details | |
|---|---|
| Mfr Part #: | JG520A#ABA |
| SHI Part #: | 27663651 |
| Category: | Routers |
| UNSPSC: | 43222609 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Routers |
| Description | HPE MSR935 3G Router - Router 4-port switch - 1GbE |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222609 |
| Main Specifications | |
| Dimensions & Weight / Depth | 20 cm |
| Dimensions & Weight / Height | 4.42 cm |
| Dimensions & Weight / Weight | 1.8 kg |
| Dimensions & Weight / Width | 30 cm |
| Header / Brand | HPE |
| Header / Country Kits | United States |
| Header / Localization | English |
| Miscellaneous / Product Color |
|
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | Desktop |
| Networking / Type | Router |
| Packaged Quantity | 1 |
| Antenna | |
| Antenna Qty | 1 |
| Communications | |
| Analog Ports Qty | 1 |
| Cellular Protocol | HSPA+ |
| Protocols & Specifications | ITU G.992.3 Annex A, ITU G.992.3 Annex M |
| Type | Fax / modem |
| Dimensions & Weight | |
| Depth | 20 cm |
| Height | 4.42 cm |
| Weight | 1.8 kg |
| Width | 30 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | RADIUS, PAP, CHAP, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP) |
| Capacity |
|
| Compliant Standards | IEEE 802.2, IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, EN55024, EN55022 Class B, ICES-003 Class B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EMC, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, FDA, FCC CFR47 Part 15 B, EN 60825-1, AS/NZS 60950, ANSI C63.4, EN 60825-2, CAN/CSA C22.2 No. 60950-1-03, EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005, EN 300 386, CAN/CSA-C22.2 No. 60950-1 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Data Transfer Rate | 1 Gbps |
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Encryption Algorithm | MD5, AES, IKE, TLS |
| Features | Firewall protection, layer 2 switching, DHCP support, NAT support, VPN support, BOOTP support, ARP support, MPLS support, IGMP snooping, Syslog support, traffic shaping, port mirroring, IPv6 support, WFQ, WRED, sFlow, STP support, RSTP support, MSTP support, tunneling, TFTP support, ACL support, QoS, CAR, MLD snooping, URPF, IPv4 support, MIB, loop prevention, port isolation, packet storm protection, CoS, Loopback, IGMP proxy, DVPN, NQA, MBGP, WWAN support, ToS |
| Flash Memory | 128 MB |
| Network / Transport Protocol | TCP/IP, UDP/IP, L2TP, RSVP, APPN, NTP, ICMP/IP, IPSec, PPPoE, ARP, BOOTP, DHCP |
| Performance |
|
| Processor | 1 x 533 MHz |
| RAM | 256 MB DDR SDRAM |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, CLI |
| Routing Protocol | OSPF, EGP, RIP, BGP-4, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, IGMPv3, GRE, OSPFv3, MSDP, static IPv4 routing, static IPv6 routing, ECMP, RIPng, MLD, BGP-4+, CIDR |
| Miscellaneous | |
| Included Accessories | SIM card |
| Localization | English / United States |
| Power | |
| Power Device | External power adapter |
