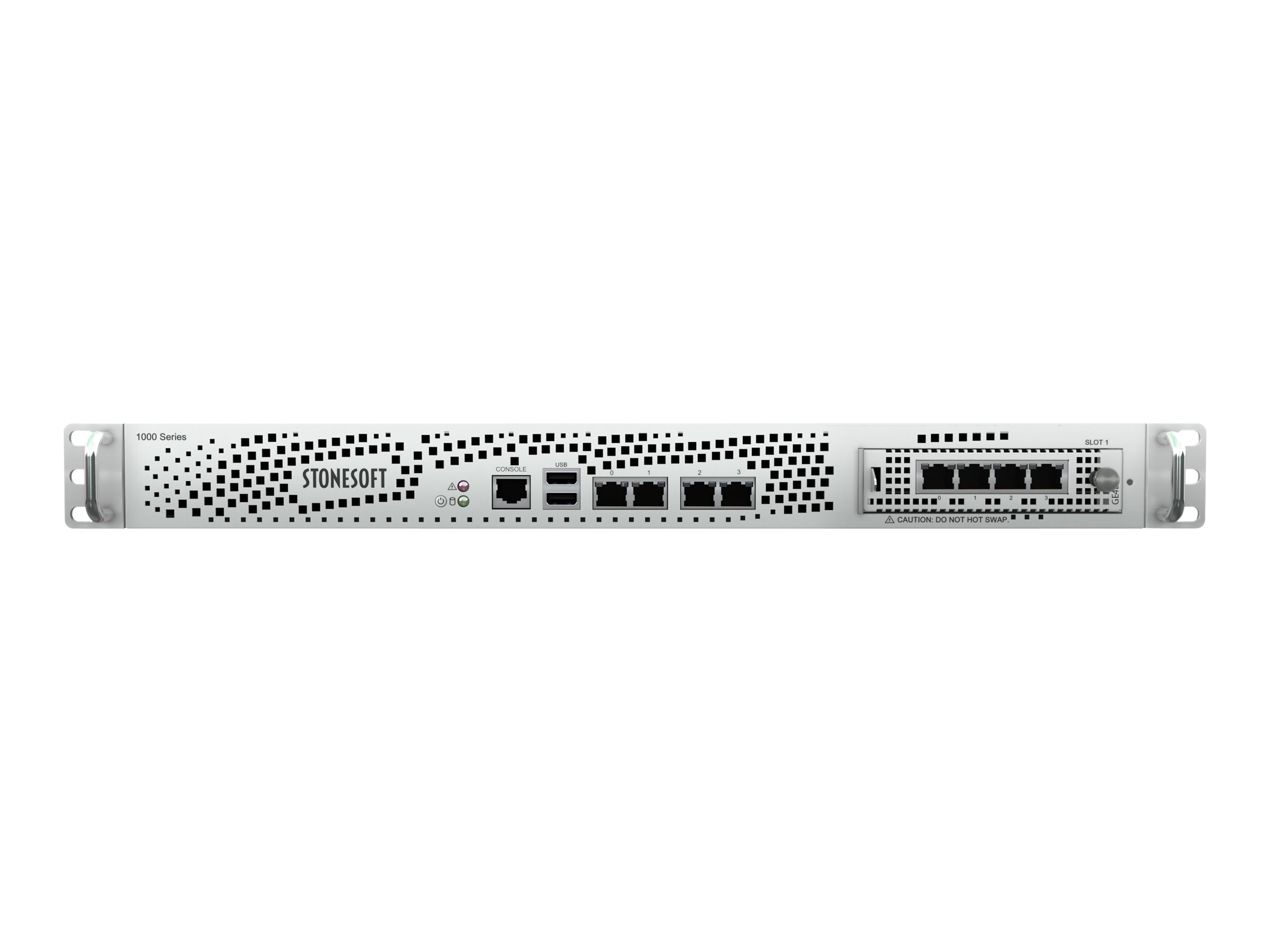

McAfee Firewall 1035-C1


McAfee Firewall 1035-C1

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Security appliance
  • 4 ports
  • GigE
  • 1U
  • federal government
McAfee Firewall 1035-C1
  • Security appliance
  • 4 ports
  • GigE
  • 1U
  • federal government
  • Associate
  • rack-mountable
  Additional Details
Mfr Part #: FWL-1035C1G
SHI Part #: 27525169
Category: Firewall appliances
UNSPSC: 43222501
Manufacturer: Trellix
Product Type: Hardware
Product Line: McAfee
General Information
CategoryFirewall appliances
DescriptionMcAfee Firewall 1035-C1 - Security appliance - 4 ports - GigE - 1U - federal government - Associate - rack-mountable
ManufacturerTrellix
UNSPSC43222501
Main Specifications
Dimensions & Weight / Depth30 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight4.2 kg
Dimensions & Weight / Width42.6 cm
Header / BrandMcAfee
Networking / Connectivity TechnologyWired
Networking / Data Link Protocol
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Networking / Form FactorRack-mountable
Networking / Ports Qty4
Networking / TypeSecurity appliance
Packaged Quantity1
Environmental Parameters
Humidity Range Operating10 - 95% (non-condensing)
Max Operating Temperature40 °C
Min Operating Temperature5 °C
Expansion / Connectivity
Expansion Slots1 (total) / 1 (free) x expansion slot
Interfaces
  • 4 x 1000Base-T - RJ-45
  • 1 x management - RJ-45
  • 2 x USB - Type A
General
Depth30 cm
Device TypeSecurity appliance
Height4.4 cm
Height (Rack Units)1U
Weight4.2 kg
Width42.6 cm
Miscellaneous
Compliant StandardsCB, FCC, RoHS, GOST-R
Manufacturer Selling ProgramMcAfee SecurityAlliance Reseller Partner Program - Associate
MTBF120,000 hours
Pricing TypeFederal government
Networking
Capacity
  • Virtual interfaces (VLANs): 256
  • Concurrent mVPN clients: 100
  • Concurrent connections: 6000000
  • VPN tunnels: 20000
  • Inspected concurrent connections: 150000
  • VPN client licenses: up to 100
  • Tagged VLANs: 256
Connectivity TechnologyWired
Data Link ProtocolEthernet, Fast Ethernet, Gigabit Ethernet
Encryption AlgorithmAES-GCM
FeaturesFirewall protection, load balancing, VPN support, clustering technology
Form FactorRack-mountable
Performance
  • Throughput: 3 Gbps
  • Maximum inspection throughput: 1 Gbps
  • HTTP Throughput: 400 Mbps
  • SSL throughput: 150 Mbps
  • Firewall throughput (64-byte packet size): 1200000 packets per second
  • Connection rate (TCP): 40000 connections per second
  • VPN throughput (128-bit AES): 500 Mbps
Ports Qty4
Power
Power Consumption Operational50 Watt
Power DeviceInternal power supply
Power Provided180 Watt
Voltage RequiredAC 120/230 V (50/60 Hz)
