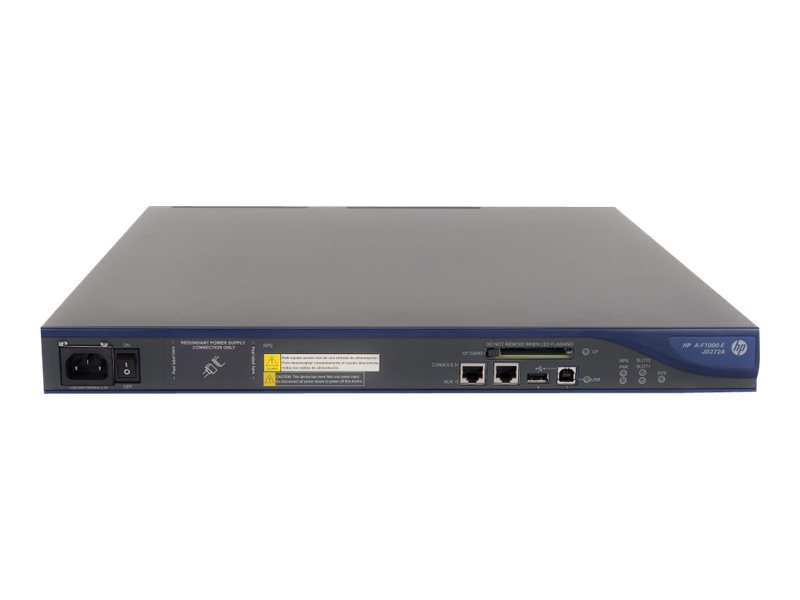

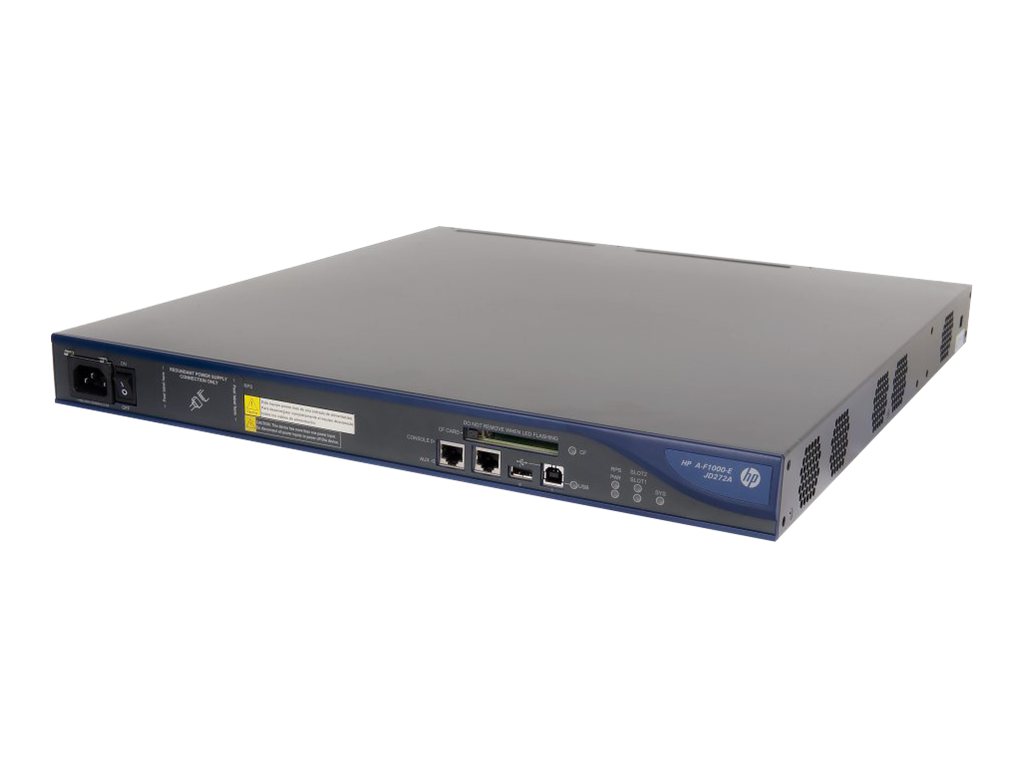

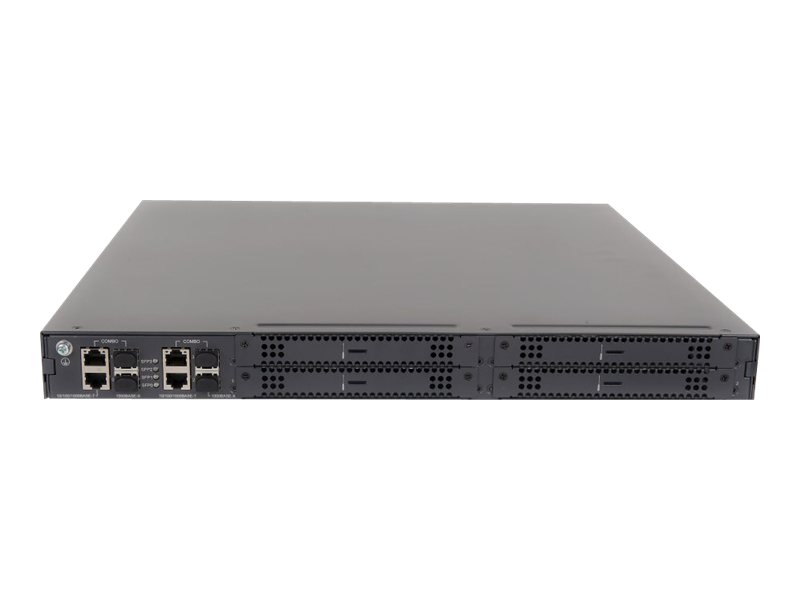

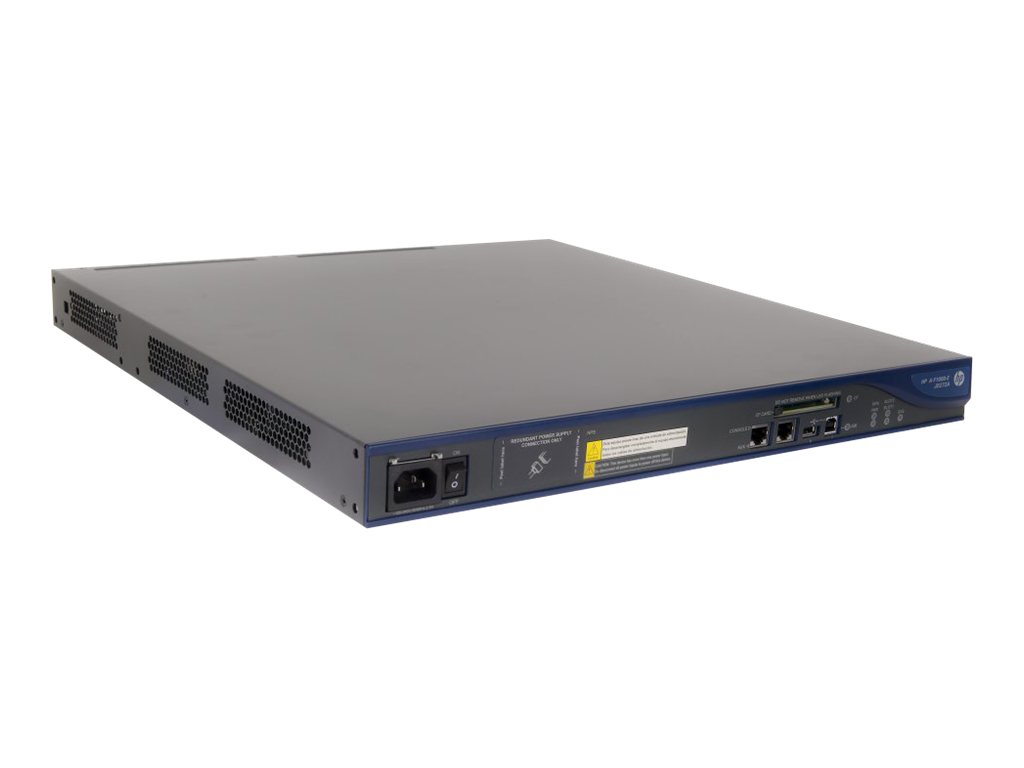

HPE F1000-E VPN Firewall Appliance
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE F1000-E VPN Firewall Appliance
- Security appliance
- 4 ports
- 1GbE
| Additional Details | |
|---|---|
| Mfr Part #: | JD272A#ABA |
| SHI Part #: | 27364728 |
| Category: | Firewall appliances |
| UNSPSC: | 43222501 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Firewall appliances |
| Description | HPE F1000-E VPN Firewall Appliance - Security appliance - 4 ports - 1GbE |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222501 |
| Main Specifications | |
| Dimensions & Weight / Depth | 46.6 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 7.5 kg |
| Dimensions & Weight / Width | 44.2 cm |
| Header / Brand | HPE |
| Header / Country Kits | United States |
| Header / Localization | English |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol |
|
| Networking / Form Factor | External |
| Networking / Ports Qty | 4 |
| Networking / Type | Security appliance |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Communications | |
| Supported Flash Memory Cards | CompactFlash Card |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 95% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| General | |
| Depth | 46.6 cm |
| Device Type | Security appliance |
| Height | 4.4 cm |
| Installed Modules Qty (Max) | 0 (2) |
| Localization | English / United States |
| Weight | 7.5 kg |
| Width | 44.2 cm |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 1 year - shipment - response time: 30 days |
| Miscellaneous | |
| Compliant Standards | EN 61000-3-2, EN55022, ICES-003, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, CISPR 22, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, VCCI V-3, EN 301 489-1, EN 300 386, EN 301 489-17 |
| Networking | |
| Authentication Method | RADIUS, PAP, TACACS, TACACS+, Extensible Authentication Protocol (EAP) |
| Capacity |
|
| Compliant Standards | IEEE 802.1Q, IEEE 802.1x |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Encryption Algorithm | Triple DES, MD5, AES, IKE, TLS, PKI |
| Features | NAT support, VPN support, PAT support, NAPT support, Syslog support, DoS attack prevention, packet filtering, ALG support, DDos attack prevention, IPSec Virtual Private Network (VPN), Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Application Specific Packet Filter (ASPF) |
| Form Factor | External |
| Network / Transport Protocol | UDP/IP, L2TP, NTP, ICMP/IP, IPSec, ARP, FTP |
| Performance |
|
| Ports Qty | 4 |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI |
| Routing Protocol | OSPF, EGP, BGP-4, RIP-1, RIP-2, BGP, IGMPv2, IGMP, PIM-SM, static IP routing, PIM-DM, IGMPv3, GRE, OSPFv3, ECMP, RIPng, BGP-4+ |
| Power | |
| Power Consumption Operational | 150 Watt |
| Power Device | Internal power supply |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
