Perle S-1110-M2ST05-XT
MSRP$740.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with

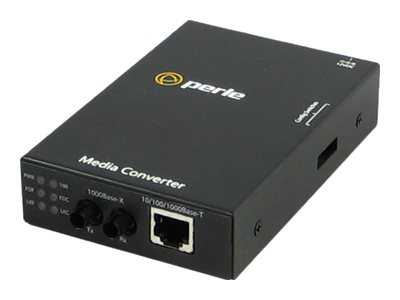

Perle S-1110-M2ST05-XT
- Fiber media converter
- 1GbE
- 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T
- RJ-45 / ST multi-mode
- up to 550 m
- 850 nm
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $740.00 |
| Mfr Part #: | 05090680 |
| SHI Part #: | 26859806 |
| Category: | Transceivers |
| UNSPSC: | 43201553 |
| Manufacturer: | Perle Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Transceivers |
| Description | Perle S-1110-M2ST05-XT - Fiber media converter - 1GbE - 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T - RJ-45 / ST multi-mode - up to 550 m - 850 nm |
| Manufacturer | Perle Systems |
| MSRP | $740.00 |
| UNSPSC | 43201553 |
| Main Specifications | |
| Dimensions & Weight / Depth | 12 cm |
| Dimensions & Weight / Height | 2.6 cm |
| Dimensions & Weight / Weight | 300 g |
| Dimensions & Weight / Width | 8 cm |
| Header / Brand | Perle |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Gigabit Ethernet |
| Networking / Data Transfer Rate | 1 Gbps |
| Networking / Form Factor | External |
| Networking / Type | Fiber media converter |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 12 cm |
| Height | 2.6 cm |
| Weight | 300 g |
| Width | 8 cm |
| Environmental Parameters | |
| Humidity Range Operating | 5 - 90% (non-condensing) |
| Max Operating Temperature | 75 °C |
| Min Operating Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Device Type | Fiber media converter |
| Form Factor | External |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - lifetime |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, EN 60950, EN 61000-3-2, EN55024, EN55022 Class A, RoHS, UL 60950-1, WEEE, FCC Part 15 A, IEC 60825-1 |
| Rack Mounting Kit | Optional |
| Networking | |
| Cabling Type | 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T |
| Compliant Standards | IEEE 802.3ab, IEEE 802.3x |
| Connectivity Technology | Wired |
| Data Link Protocol | 1GbE |
| Data Transfer Rate | 1 Gbps |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), Smart Missing Link (SML), half duplex mode, full duplex mode, Jumbo Frames support |
| Max Transfer Distance | 550 m |
| Optical Wave Length | 850 nm |
| Status Indicators | Power, receive, link/activity |
| Power | |
| Power Consumption Operational | 2.1 Watt |
| Power Device | External power adapter |
