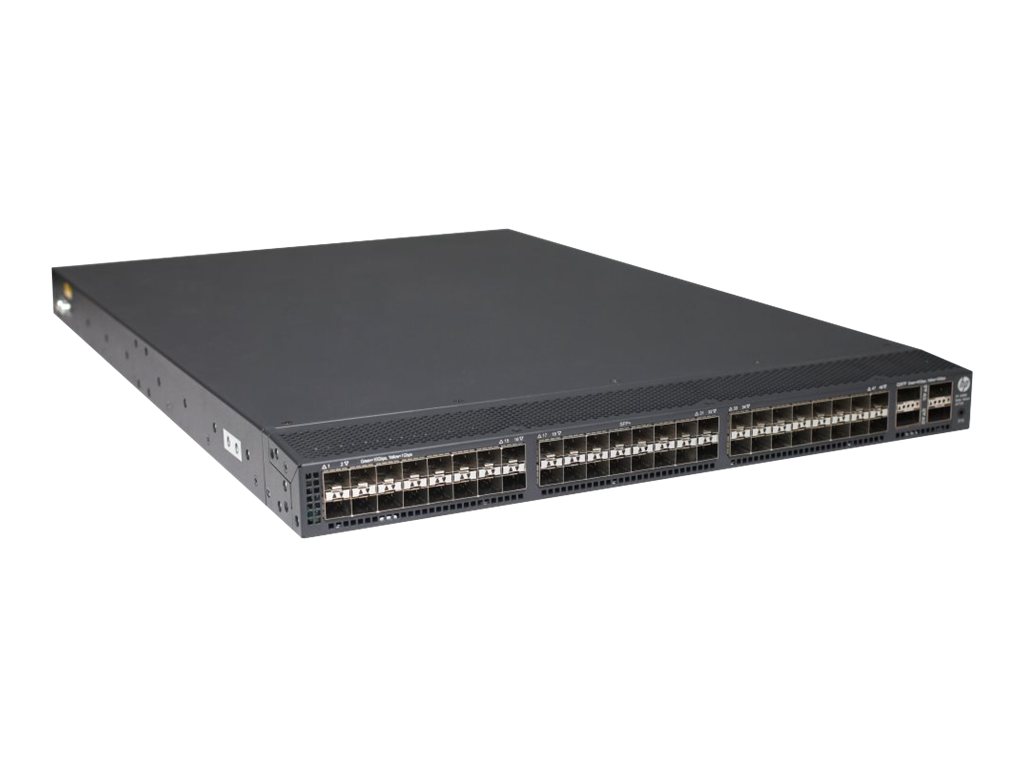

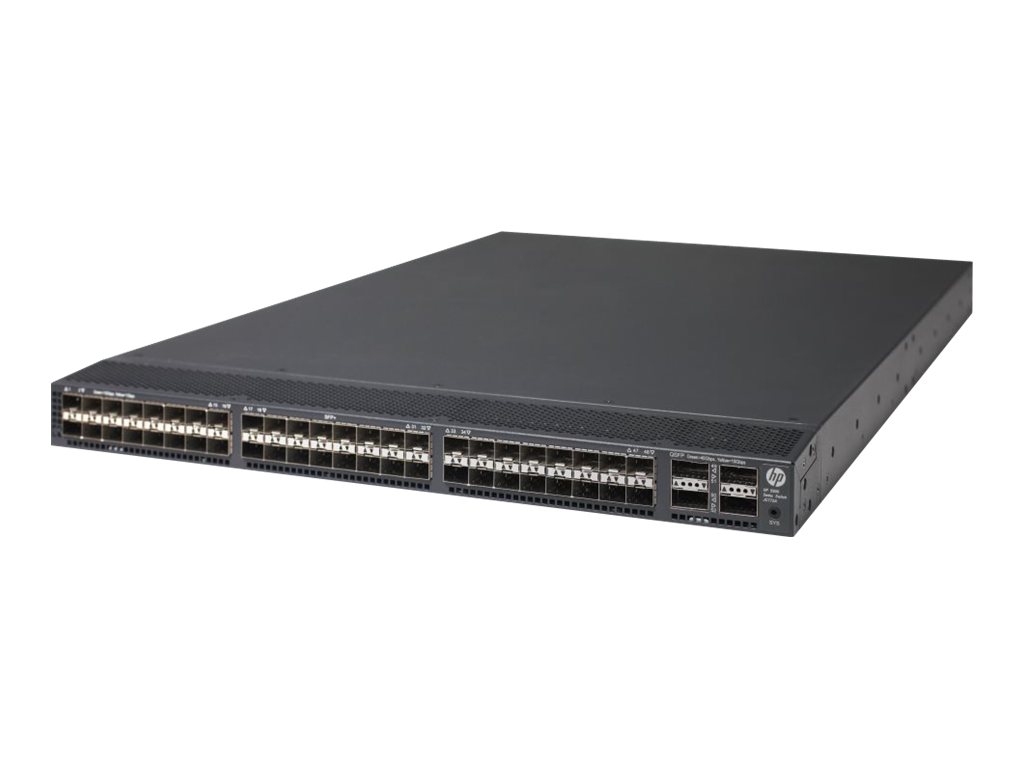

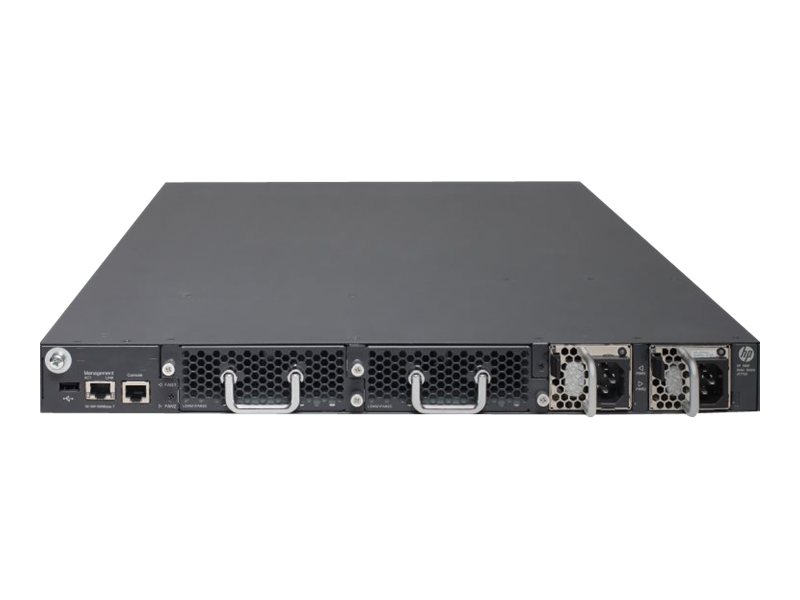

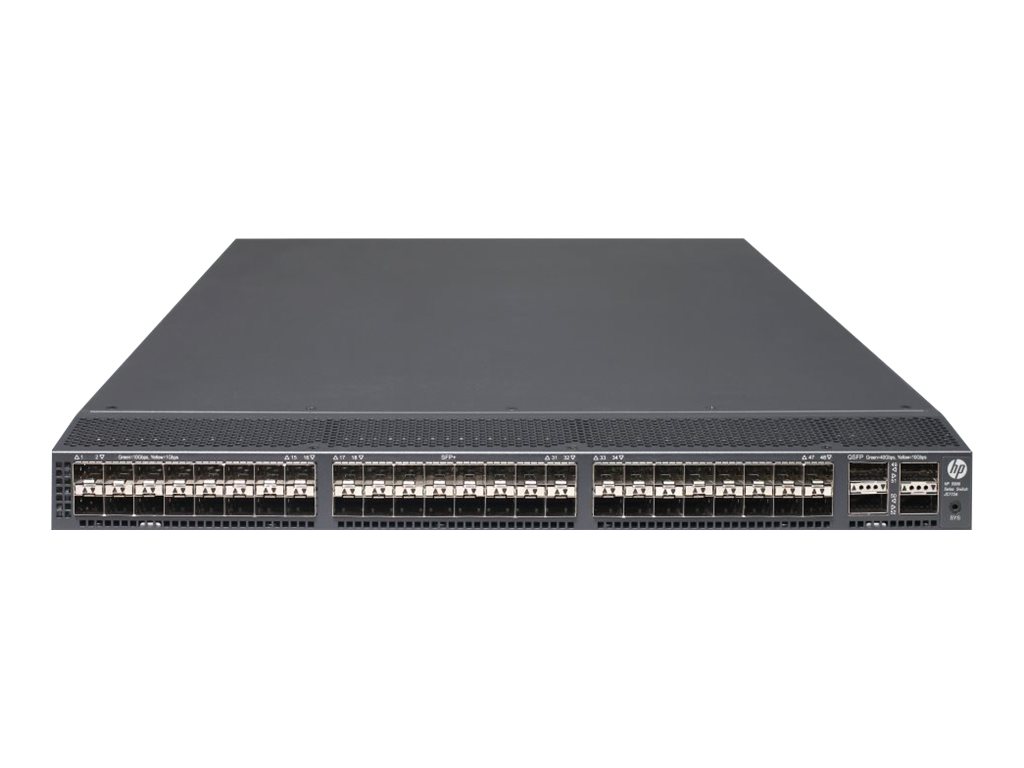

HPE 5900AF-48XG-4QSFP+ Switch
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
HPE 5900AF-48XG-4QSFP+ Switch
- Switch
- managed
- 48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+
- rack-mountable
- TAA Compliant
| Additional Details | |
|---|---|
| Mfr Part #: | JG554A |
| SHI Part #: | 26819031 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Hewlett Packard Enterprise |
| Product Type: | Hardware |
| Product Line: | HPE - Networking |
| General Information | |
|---|---|
| Category | Network switches |
| Description | HPE 5900AF-48XG-4QSFP+ Switch - Switch - managed - 48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ - rack-mountable - TAA Compliant |
| Manufacturer | Hewlett Packard Enterprise |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 65.99 cm |
| Dimensions & Weight / Height | 4.37 cm |
| Dimensions & Weight / Weight | 13 kg |
| Dimensions & Weight / Width | 43.99 cm |
| Header / Brand | HPE |
| Miscellaneous / Product Color | Black |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 48 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 65.99 cm |
| Height | 4.37 cm |
| Weight | 13 kg |
| Width | 43.99 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Max Operating Temperature | 45 °C |
| Min Operating Temperature | 0 °C |
| Expansion / Connectivity | |
| Interfaces |
|
| General | |
| Authentication Method | Secure Shell (SSH), Secure Shell v.2 (SSH2) |
| Capacity |
|
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP) |
| Device Type | Switch - 48 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Features | DHCP support, ARP support, VLAN support, port mirroring, DiffServ support, Broadcast Storm Control, IPv6 support, WRED, RSTP support, VRRP support, MSTP support, ACL support, QoS, STP Root Guard |
| Flash Memory | 512 MB |
| Jumbo Frame Support | Yes |
| MAC Address Table Size | 128K entries |
| Performance |
|
| Ports | 48 x 1 Gigabit / 10 Gigabit SFP+ + 4 x 40 Gigabit QSFP+ |
| RAM | 2 GB SDRAM |
| Remote Management Protocol | SNMP 1, Telnet, SNMP 3, SNMP 2c, CLI |
| Routing Protocol | OSPF, BGP-4, RIP-1, RIP-2, BGP, VRRP, OSPFv2, static IP routing, ECMP |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 1 year |
| Miscellaneous | |
| Compliant Standards | GOST, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, NOM, VCCI Class A ITE, EN 61000-3-3, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, RoHS, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, ANATEL, FDA, CSA C22.2 No. 60950-1, EN 60825-1 |
| TAA Compliant | Yes |
| Power | |
| Max Supported Qty | 2 |
| Power Consumption Operational | 260 Watt |
| Power Device | Internal power supply (not installed) |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Voltage Required | AC 120/230 V (50/60 Hz) |
