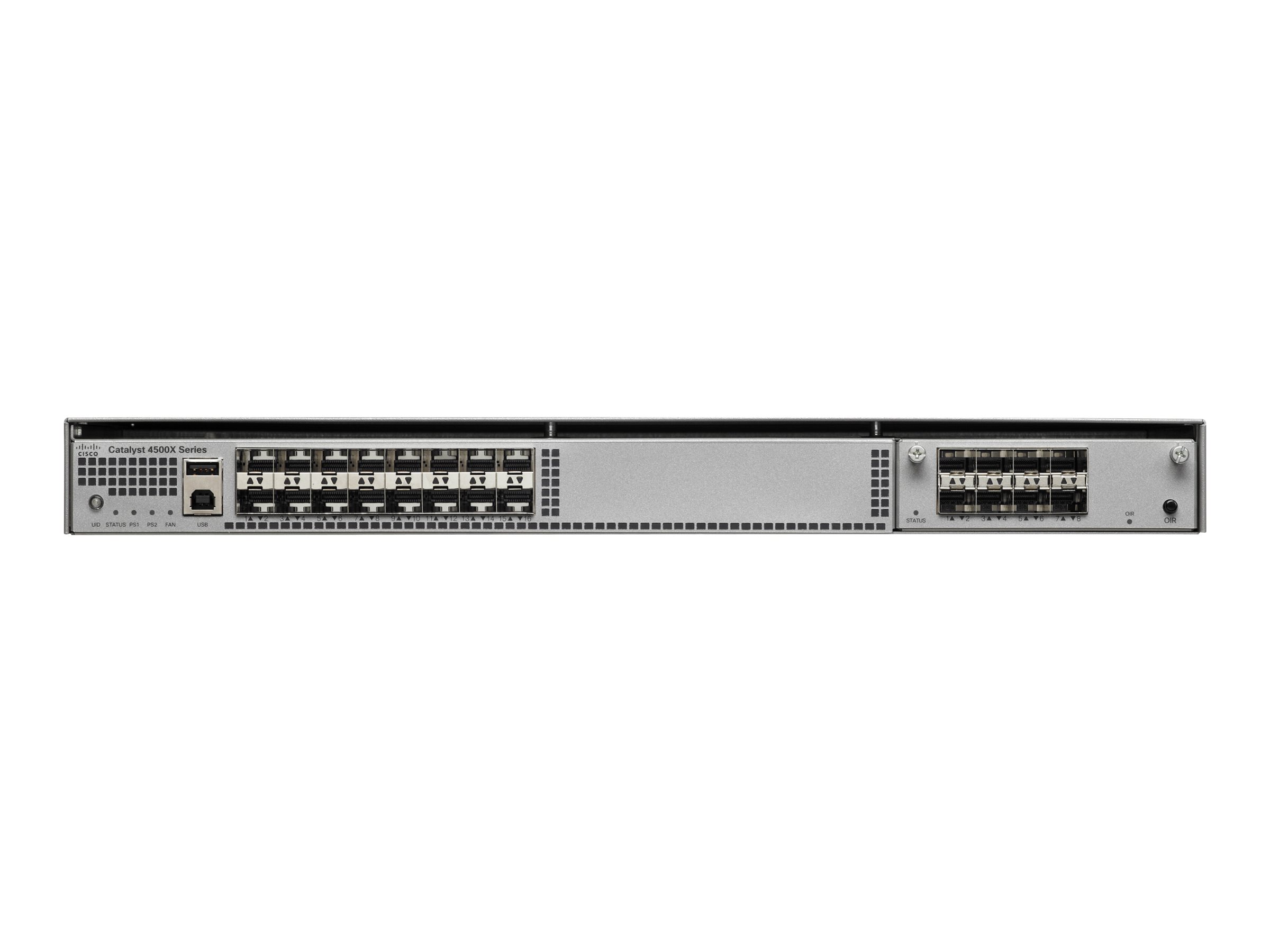

Cisco Catalyst 4500-X
MSRP$34,660.89
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Cisco Catalyst 4500-X
- Switch
- managed
- 24 x 10 Gigabit SFP+
- front to back airflow
- rack-mountable
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $34,660.89 |
| Mfr Part #: | WS-C4500X-24X-IPB |
| SHI Part #: | 26800438 |
| Category: | Network switches |
| UNSPSC: | 43222612 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Network switches |
| Description | Cisco Catalyst 4500-X - Switch - managed - 24 x 10 Gigabit SFP+ - front to back airflow - rack-mountable |
| Manufacturer | Cisco Systems |
| MSRP | $34,660.89 |
| UNSPSC | 43222612 |
| Main Specifications | |
| Dimensions & Weight / Depth | 55.3 cm |
| Dimensions & Weight / Height | 4.4 cm |
| Dimensions & Weight / Weight | 9.07 kg |
| Dimensions & Weight / Width | 43.8 cm |
| Header / Brand | Cisco |
| Miscellaneous / Product Color | Gray |
| Networking / Form Factor | Rack-mountable |
| Networking / Ports Qty | 24 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | Limited lifetime warranty |
| Dimensions & Weight | |
| Depth | 55.3 cm |
| Height | 4.4 cm |
| Weight | 9.07 kg |
| Width | 43.8 cm |
| Environmental Parameters | |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Expansion Slots |
|
| Interfaces |
|
| General | |
| Capacity |
|
| Compliant Standards | IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s |
| Device Type | Switch - 24 ports - managed |
| Enclosure Type | Front to back airflow rack-mountable 1U |
| Features | VLAN support, STP support, RSTP support, MSTP support, ACL support, QoS, redundant hot swappable fans, CoS |
| Flash Memory | 2 GB (max) |
| Jumbo Frame Support | 9216 bytes |
| MAC Address Table Size | 55K entries |
| Performance |
|
| Ports | 24 x 10 Gigabit SFP+ |
| Processor | : 1.5 GHz |
| RAM | 4 GB DDR2 SDRAM |
| Remote Management Protocol | RMON 1, RMON 2 |
| Subtype | 10 Gigabit Ethernet |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - lifetime - response time: 10 days |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, GR-1089-CORE, VCCI Class A, KN24, GR-63-CORE, KN22 Class A, EN 300386 |
| MTBF | 209,330 hours |
| Power | |
| Max Supported Qty | 2 |
| Power Consumption Operational | 330 watt |
| Power Device | Internal power supply (not installed) - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Software / System Requirements | |
| Software Included | Cisco IOS IP Base |
