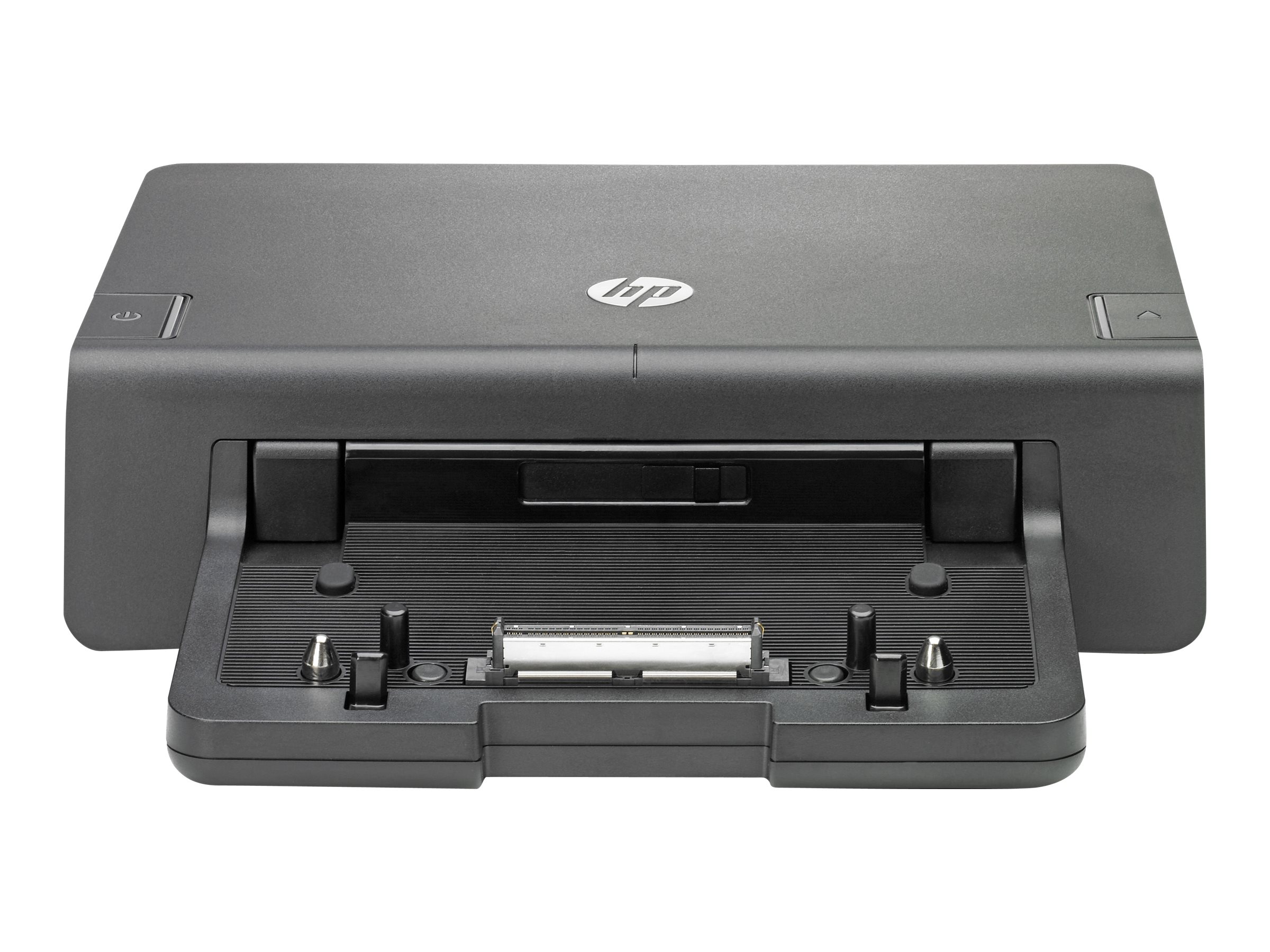

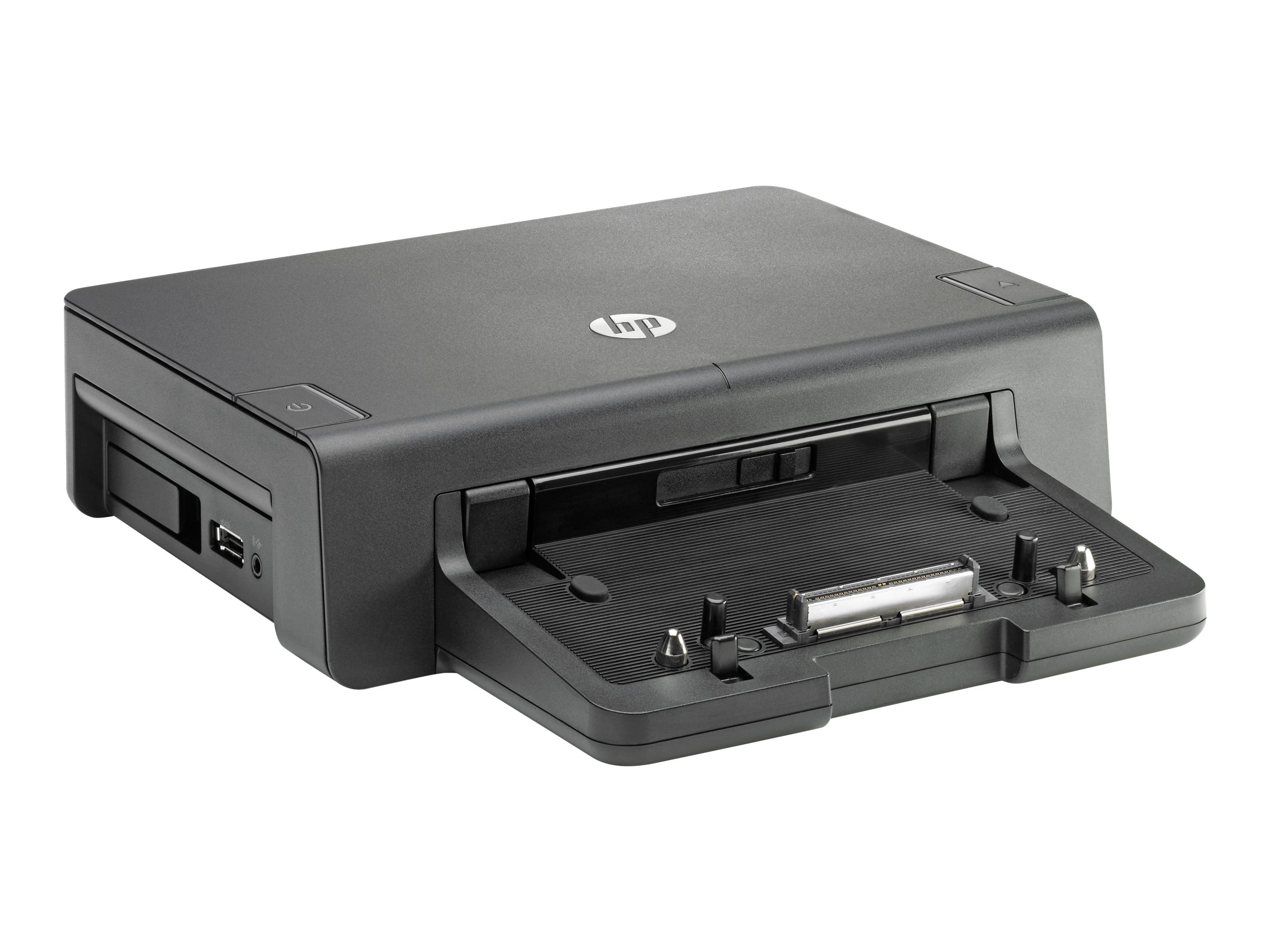

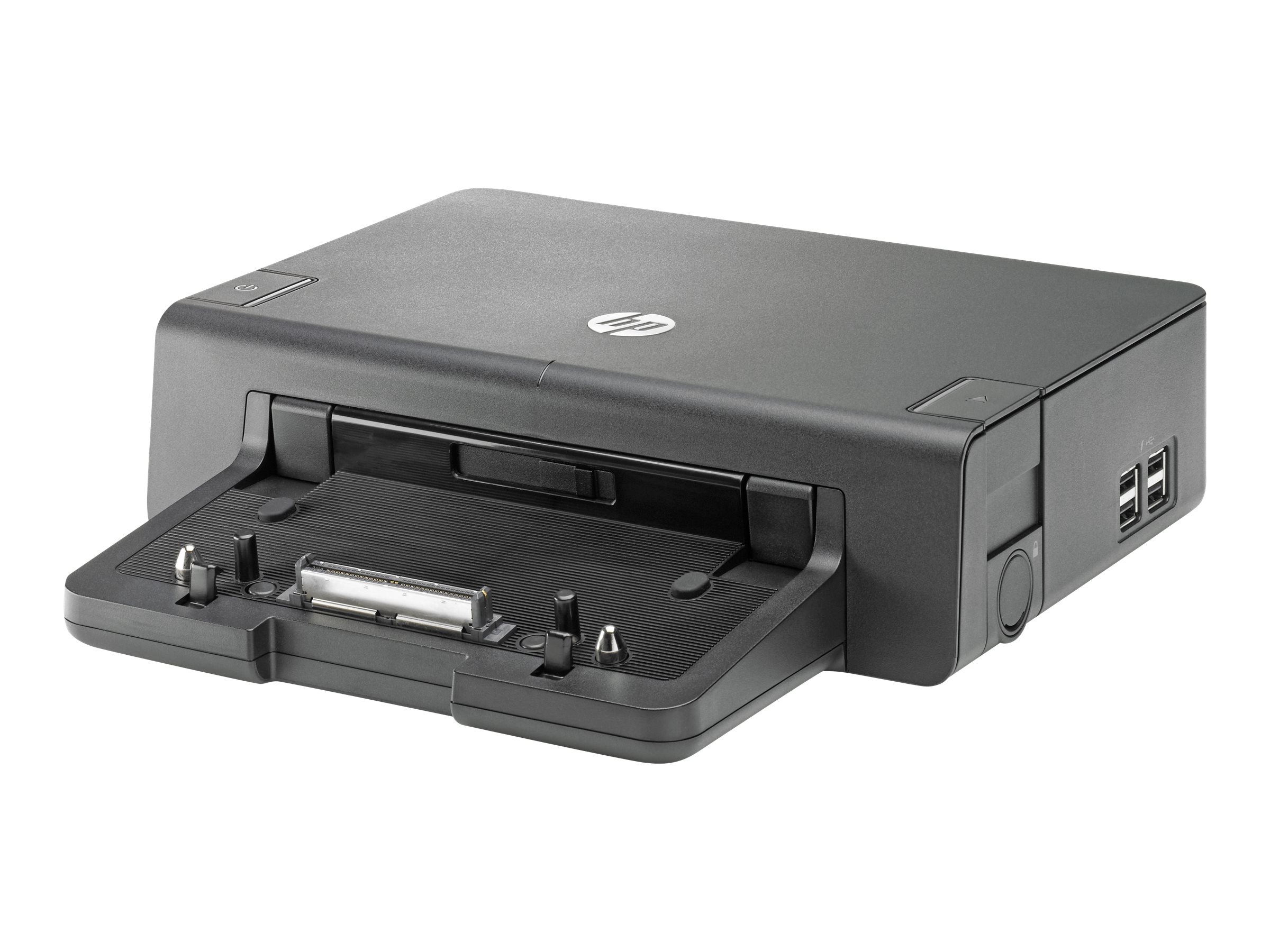

HP 2012 120W Advanced Docking Station


HP 2012 120W Advanced Docking Station

Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Docking station
  • promo
HP 2012 120W Advanced Docking Station
  • Docking station
  • promo
  Additional Details
Mfr Part #: A7E36AA
SHI Part #: 26247699
Category: Docking stations
UNSPSC: 43211602
Manufacturer: HP, Inc.
Product Type: Hardware
General Information
CategoryDocking stations
DescriptionHP 2012 120W Advanced Docking Station - Docking station - promo
ManufacturerHP, Inc.
UNSPSC43211602
Main Specifications
Dimensions & Weight / Depth26 cm
Dimensions & Weight / Height6.6 cm
Dimensions & Weight / Weight1.637 kg
Dimensions & Weight / Width27.05 cm
Header / BrandHP
Optical Storage / TypeNone
Packaged Quantity1
System / Device Type (AI)Docking station
Compatibility Information
Designed For
  • HP EliteBook 2170p, 8440p Notebook, 8460p Notebook, 8470w Mobile Workstation, 8560p Notebook, 8570w Mobile Workstation, 8740w Mobile Workstation
  • HP ProBook 6360b, 640 G1 Notebook, 6440b, 645 G1 Notebook, 6450b, 6460b, 6465b, 6470b, 6475b, 650 G1 Notebook, 6540b, 6545b, 655 G1 Notebook, 6550b, 6555b, 6560b, 6570b
  • HP ZBook 15 G2 Mobile Workstation, 15 Mobile Workstation
Environmental Parameters
Max Operating Temperature35 °C
Min Operating Temperature10 °C
Expansion / Connectivity
Expansion Bays1 (total) / 1 (free) Upgrade Bay

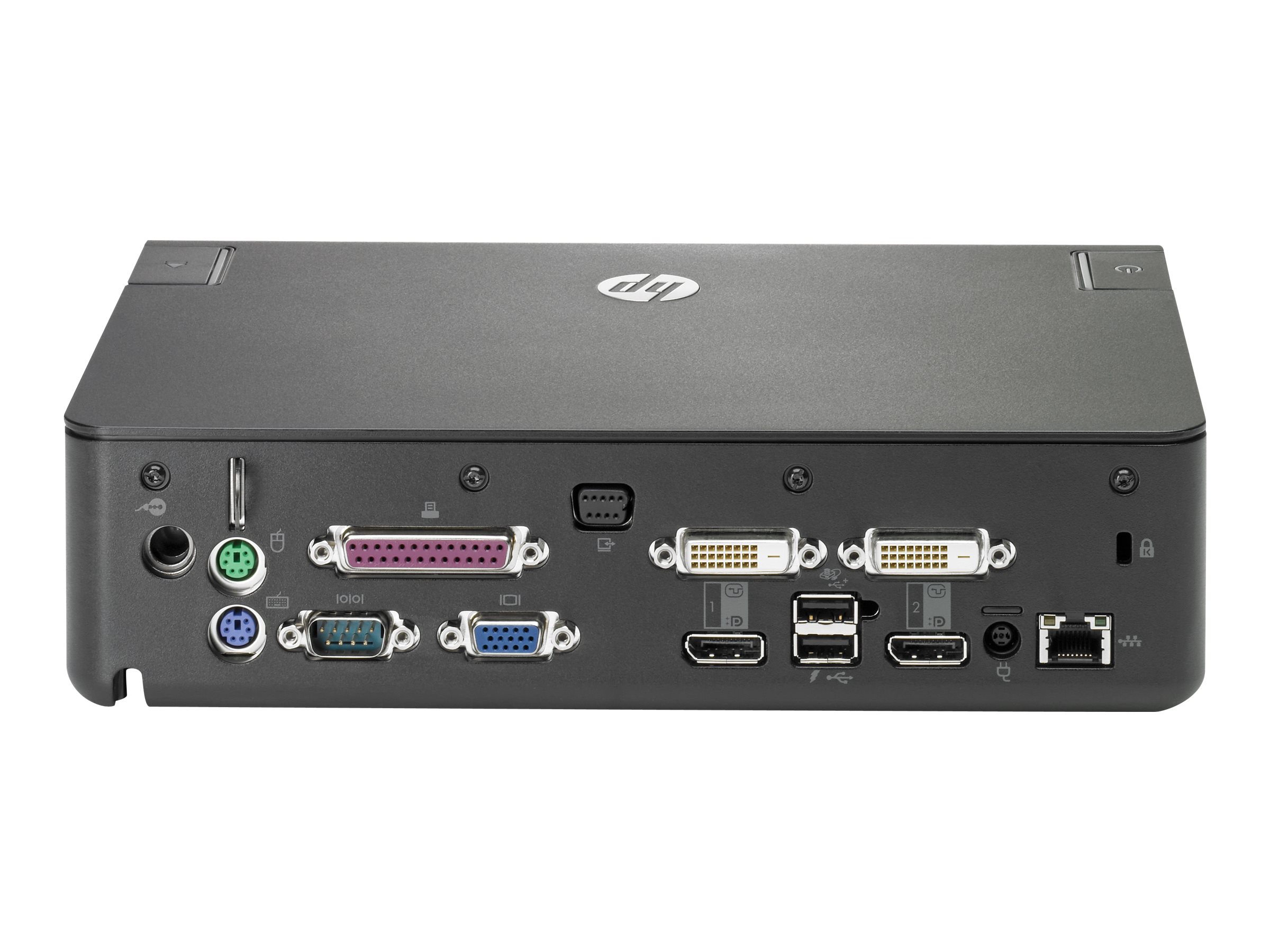

Interfaces
  • 4 x SuperSpeed USB 3.0 - 9 pin USB Type A (power only)
  • 2 x USB 2.0 - 4 pin USB Type A
  • 1 x headphones - line-out - mini-phone 3.5 mm
  • 1 x audio - line-in - mini-phone 3.5 mm
  • 1 x parallel - parallel - 25 pin D-Sub (DB-25)
  • 1 x serial - RS-232 - 9 pin D-Sub (DB-9)
  • 1 x display / video - VGA - 15 pin HD D-Sub (HD-15)
  • 2 x audio / video - DisplayPort - 20 pin DisplayPort
  • 2 x display / video - DVI-Digital - 24+1 pin digital DVI
  • 1 x eSATA - eSATA - 7 pin external Serial ATA
  • 1 x network - RJ-45
  • 1 x docking / port replicator
  • 1 x keyboard - generic - 6 pin mini-DIN (PS/2 style)
  • 1 x mouse - generic - 6 pin mini-DIN (PS/2 style)
  • 1 x monitor stand port
General
Depth26 cm
Height6.6 cm
Product TypeDocking station
Weight1.637 kg
Width27.05 cm
Miscellaneous
FeaturesSecurity lock slot (cable lock sold separately)
Power
Power DevicePower adapter - external
Voltage RequiredAC 120/230 V (50/60 Hz)
