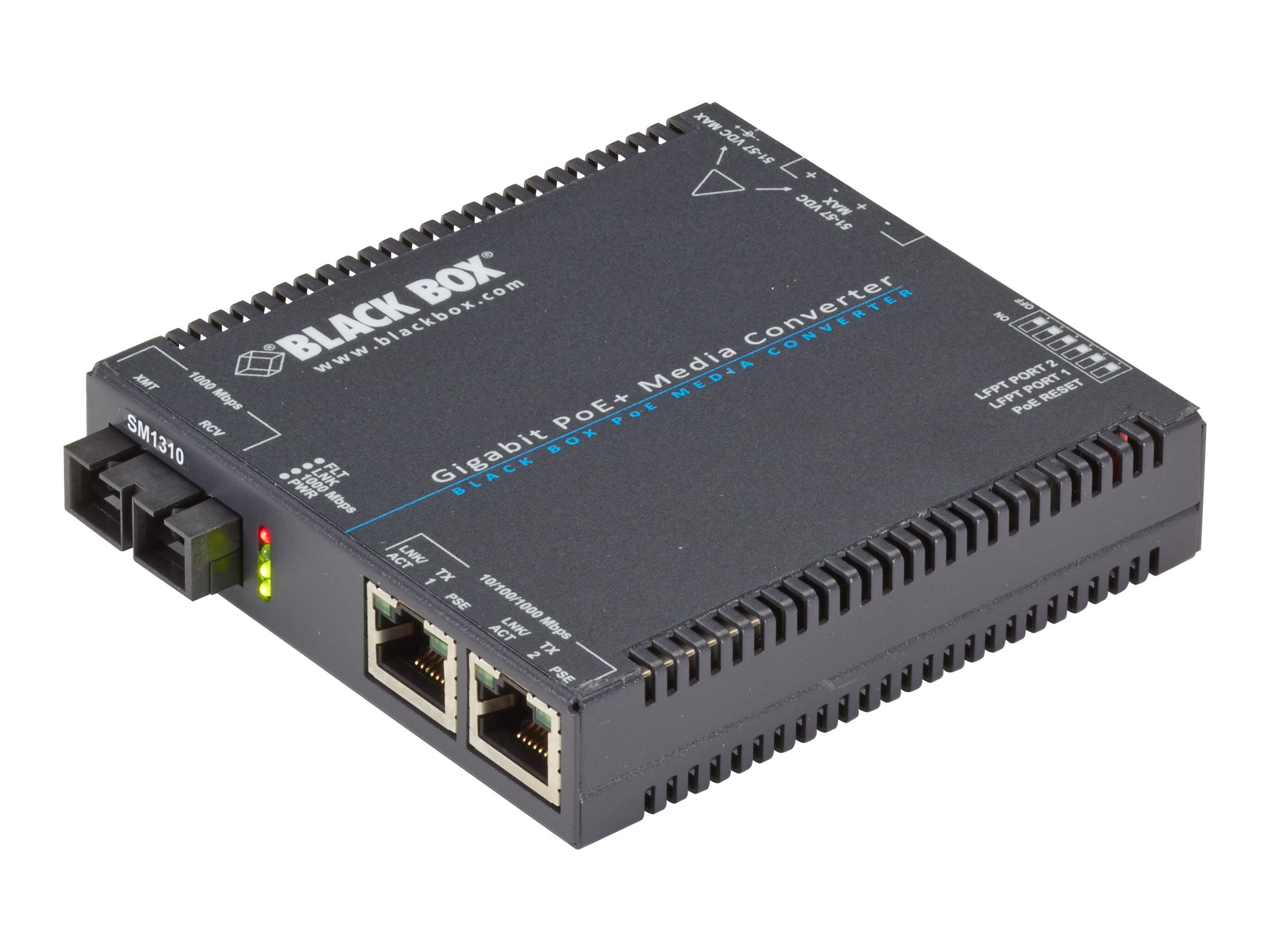

Black Box Media Converter Gigabit Ethernet PoE+ SIngle-Mode, 1310-nm, SC

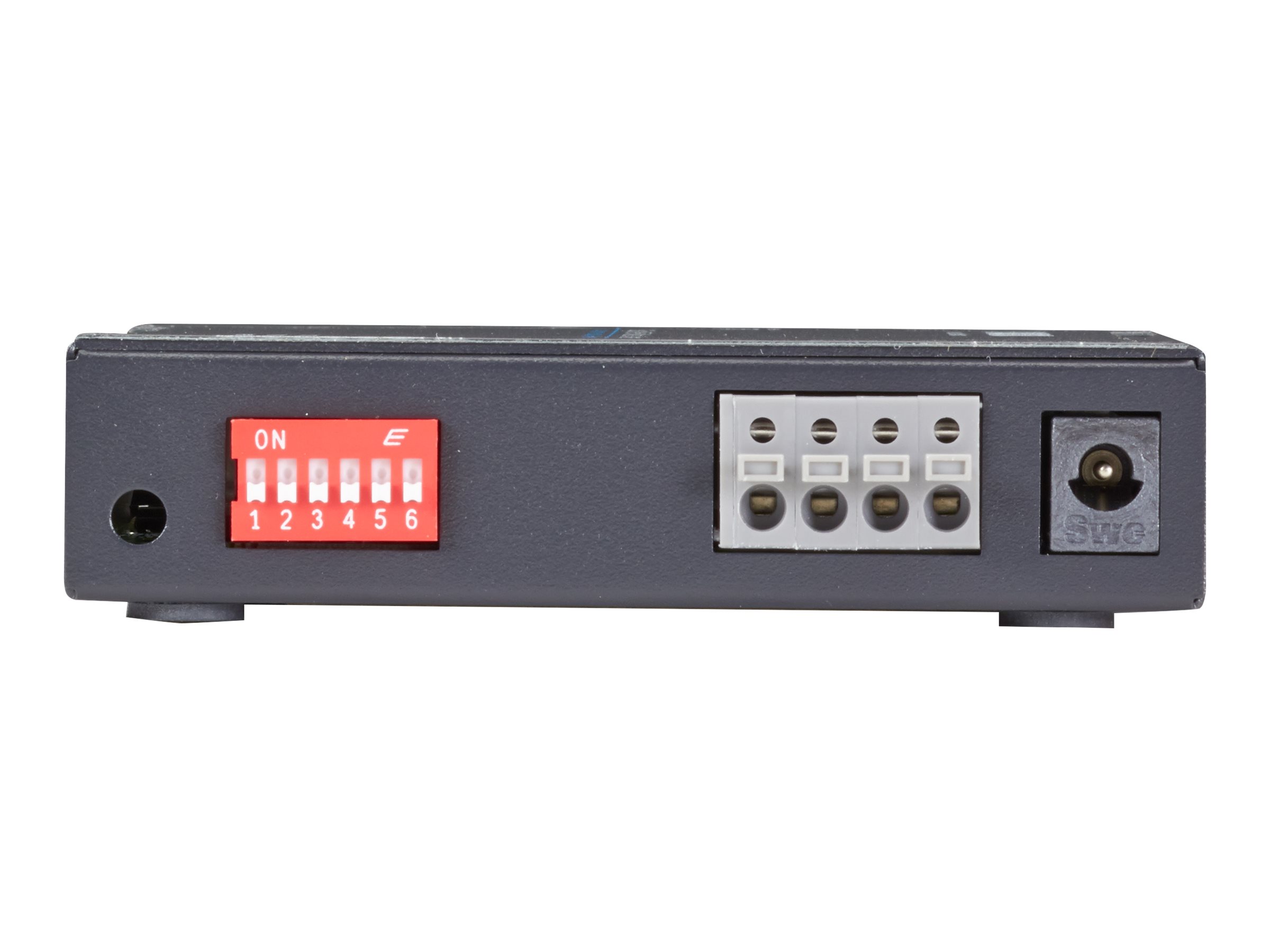

Connect with fiber and provide power to remote PoE devices. This tough media converter is the ideal way to extend your network over fiber and also power a PoE device. Use it to link to faraway PoE devices such as IP security cameras wireless access points and VoIP phones. The media converter features two autosensing 10/100/1000 UTP ports plus one single-mode fiber port that can extend a network connection up to 15 kilometers (9.3 mi.). Both UTP ports support 802.3at Power over Ethernet enabling it to power a PoE+ PD device the other is a straightforward Ethernet port which can be used for network expansion. The Gigabit PoE+ Media Converter can be powered three ways from an AC power supply (LGC5210-PS included) via the DC power jack or via the DC terminal block. When used with DC power to the terminal block the converter supports an extended operating temperature range of +32 to +158degree F (0 to +70degree C). The converter requires only one power source to power both the converter and a PoE+ device you can position the PoE+ device up to 100 meters (328 feet) away from the converter enabling flexible placement of wireless APs and security cameras. A pair of input terminals and output terminals enables you to cascade DC power in a DIN rail installation (optional DIN Rail Clip (LXC-DR) is sold separately). This product works with Media Converter (LGC5212A) Questions? Contact our FREE Tech Support. This product is covered by one or more of the following United States Patent Nos. 7457250 8902760 and/or 9019838.

Key Points

Product Features
