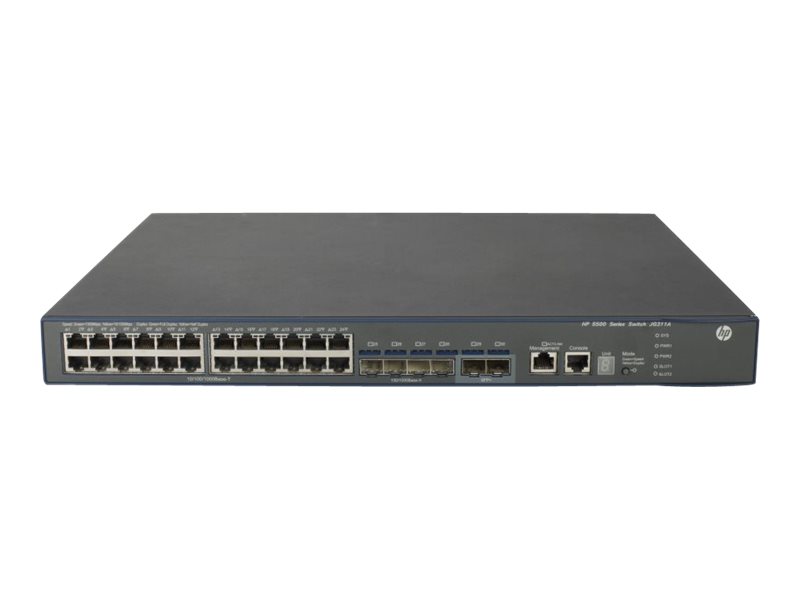

HPE 5500-24G-4SFP HI Switch with 2 interface Slots

Login for Price
HPE 5500-24G-4SFP HI Switch with 2 interface Slots
Mfr Part #:
Copied To Clipboard
 Click To Copy
SHI Part #:
Copied To Clipboard
 Click To Copy
Quick Details
  • Switch
  • Managed
  • 24 x 10/100/1000 + 4 x Gigabit SFP + 2 x SFP+
  • rack-mountable
HPE 5500-24G-4SFP HI Switch with 2 interface Slots
  • Switch
  • Managed
  • 24 x 10/100/1000 + 4 x Gigabit SFP + 2 x SFP+
  • rack-mountable
  Additional Details
Mfr Part #: JG311A
SHI Part #: 25084932
Category: Network switches
UNSPSC: 43222612
Manufacturer: Hewlett Packard Enterprise
Product Type: Hardware

Network Cables

HPE X240 Direct Attach Cable
HPE X240 Direct Attach Cable
  • Network cable
  • SFP+ to SFP+
  • 3 m
  • for HPE 59XX, 75XX; FlexFabric 12902; Modular Smart Array 1040; SimpliVity 380 Gen10, 380 Gen9
MSRP $364.00 $334.00
HPE PremierFlex - Network cable
HPE PremierFlex - Network cable
  • LC multi-mode (M) to LC multi-mode (M)
  • 5 m
  • fiber optic
  • OM4
  • for HPE 3600, 8/24, 8/8, SN6000; StoreFabric SN6500, SN6610, SN6620C 24, SN6650
$184.00
HPE - Network cable - LC multi-mode (M) to LC multi-mode (M)
HPE - Network cable - LC multi-mode (M) to LC multi-mode (M)
  • 1 m
  • fiber optic
  • 50 / 125 micron
  • OM3
  • for HPE 3600, 8/24, 8/8, SN6000; StoreFabric SN6500, SN6610, SN6620C 24, SN6650
$87.00

Networking and Security

HPE X130 - SFP+ transceiver module
HPE X130 - SFP+ transceiver module
  • 10GbE
  • 10GBase-SR
  • LC
  • for FlexFabric 12902; Networking Comware 2150 16, 2150 24, 2150 48, 2150 8p, 5150L 24
MSRP $924.00 $796.43
HPE X120 - SFP (mini-GBIC) transceiver module
HPE X120 - SFP (mini-GBIC) transceiver module
  • 1GbE
  • 1000Base-LX
  • LC
  • for Networking Comware 2050 20, 2050 24, 2050 48, 2150 16, 2150 24, 2150 48, 2150 8p, 5150L 24
MSRP $1,257.00 $793.00
General Information
CategoryNetwork switches
DescriptionHPE 5500-24G-4SFP HI Switch with 2 interface Slots - Switch - Managed - 24 x 10/100/1000 + 4 x Gigabit SFP + 2 x SFP+ - rack-mountable
ManufacturerHewlett Packard Enterprise
UNSPSC43222612
Main Specifications
Dimensions & Weight / Depth36 cm
Dimensions & Weight / Height4.4 cm
Dimensions & Weight / Weight7.5 kg
Dimensions & Weight / Width44 cm
Header / BrandHPE
Networking / Form FactorRack-mountable
Networking / Ports Qty24
Networking / TypeSwitch
Packaged Quantity1
Dimensions & Weight
Depth36 cm
Height4.4 cm
Weight7.5 kg
Width44 cm
Environmental Parameters
Humidity Range Operating5 - 95% (non-condensing)
Max Operating Temperature50 °C
Max Storage Temperature70 °C
Min Operating Temperature0 °C
Min Storage Temperature-40 °C
Expansion / Connectivity
Expansion Slots2 (total) / 2 (free) x expansion slot
Installed Modules Qty (Max)0 (installed) / 2 (max)
Interfaces
  • 24 x 1000Base-T RJ-45
  • 4 x Ethernet 1000 - SFP (mini-GBIC)
  • 2 x SFP+
  • 1 x console RJ-45 management
General
Authentication MethodRADIUS
CapacityRouting table entries: 12000
Compliant StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1ab (LLDP)
Device TypeSwitch - 24 ports - managed - stackable
Enclosure TypeRack-mountable 1U
FeaturesLayer 2 switching, DHCP support, ARP support, MPLS support, auto-uplink (auto MDI/MDI-X), IPv6 support, STP support, RSTP support, VRRP support, MSTP support, QoS, RRPP, ECMP, BFD, STP Root Guard, IPv4 support
Flash Memory512 MB
Jumbo Frame SupportYes
MAC Address Table Size32K entries
Performance
  • Routing/switching capacity: 176 Gbps
  • Throughput: 130.9 Mpps
Ports24 x 10/100/1000 + 4 x Gigabit SFP + 2 x SFP+
RAM1 GB SDRAM
Remote Management ProtocolSNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, CLI
Routing ProtocolOSPF, RIP, IS-IS, BGP, VRRP, PIM-SM, static IP routing, PIM-DM, OSPFv3, PIM-SSM, ECMP, RIPng, IS-ISv6, MPLS, Bidirectional Forwarding Detection (BFD)
SubtypeGigabit Ethernet
Miscellaneous
Compliant StandardsRoHS, UL 60950-1, IEC 60950-1, EN 60950-1, EN 60825-1, EN 60825-2, CAN/CSA-C22.2 No. 60950-1
Rack Mounting KitIncluded
Power
Max Supported Qty2
Power DeviceInternal power supply (not installed)
Power RedundancyOptional
Power Redundancy Scheme1+1 (with optional power supply)
Voltage RequiredAC 120/230 V (50/60 Hz)
