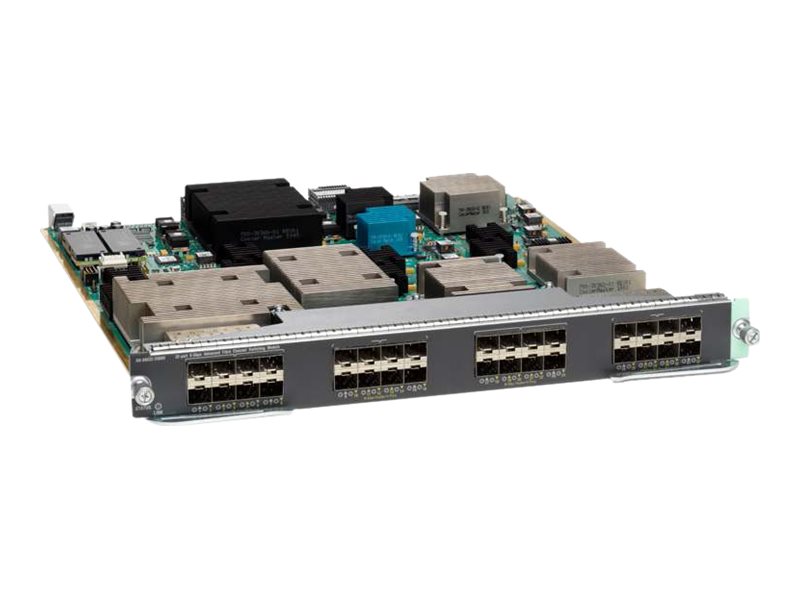

Cisco MDS 9000 Family Advanced Fibre Channel Switching Module
MSRP$66,000.00
Mfr Part #:
Copied To Clipboard
Click To Copy
SHI Part #:
Copied To Clipboard
Click To Copy
|
Quick Details
|
|---|
|
Want your tech today, but need time to pay?
Easy, flexible financing available with
Cisco MDS 9000 Family Advanced Fibre Channel Switching Module
- Switch
- managed
- 32 x 8Gb Fibre Channel SFP+
- plug-in module
| Additional Details | |
|---|---|
| Price: | |
| MSRP: | $66,000.00 |
| Mfr Part #: | DS-X9232-256K9= |
| SHI Part #: | 24785436 |
| Category: | Hubs or concentrators |
| UNSPSC: | 43222610 |
| Manufacturer: | Cisco Systems |
| Product Type: | Hardware |
| General Information | |
|---|---|
| Category | Hubs or concentrators |
| Description | Cisco MDS 9000 Family Advanced Fibre Channel Switching Module - Switch - managed - 32 x 8Gb Fibre Channel SFP+ - plug-in module |
| Manufacturer | Cisco Systems |
| MSRP | $66,000.00 |
| UNSPSC | 43222610 |
| Main Specifications | |
| Dimensions & Weight / Depth | 40.6 cm |
| Dimensions & Weight / Height | 3 cm |
| Dimensions & Weight / Weight | 4.76 kg |
| Dimensions & Weight / Width | 35.6 cm |
| Header / Brand | Cisco |
| Networking / Form Factor | Plug-in module |
| Networking / Ports Qty | 32 |
| Networking / Type | Switch |
| Packaged Quantity | 1 |
| Service & Support / Type | 1-year warranty |
| Dimensions & Weight | |
| Depth | 40.6 cm |
| Height | 3 cm |
| Weight | 4.76 kg |
| Width | 35.6 cm |
| Environmental Parameters | |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Humidity Range Storage | 10 - 95% (non-condensing) |
| Max Operating Temperature | 40 °C |
| Max Storage Temperature | 75 °C |
| Min Operating Temperature | 0 °C |
| Min Storage Temperature | -40 °C |
| Expansion / Connectivity | |
| Interfaces | 32 x 8Gb Fibre Channel SFP+ - SFP+ |
| General | |
| Authentication Method | RADIUS, TACACS+, Secure Shell v.2 (SSH2), DH-CHAP |
| Device Type | Switch - 32 ports - managed |
| Enclosure Type | Plug-in module |
| Encryption Algorithm | AES |
| Features | Full duplex capability, hot swap module replacement, auto-sensing per device, Syslog support, VRRP support, QoS, Port Security |
| Fibre Channel | FC-DA, FC-FLA, FC-FS, FC-GS-3, FC-GS-4, FC-MI, FC-PH, FC-PH-2, FC-PH-3, FC-PI, FC-PLDA, FC-SB-2, FC-SB-3, FC-SW, FC-SW-2, FC-SW-3, FC-Tape, FC-VI, FC-SP, FCP-4, FC-BB-2, FCP, FCP-2, FC-PI-2, FC-BB-5, FC-BB-3, FC-FS-2, FC-GS-5, FC-SW-4, FCP-3, FC-LS, FC-MI-2, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-SW-5, FC-BB-4, FC-IFR, FAIS, FAIS-2 |
| Ports | 32 x 8Gb Fibre Channel SFP+ |
| Remote Management Protocol | SNMP 3, SSH-2, CLI |
| Status Indicators | Port status, power, system |
| Subtype | Fibre Channel |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Miscellaneous | |
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1 Second Edition, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/CE, VCCI Class A, KN24, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN 300386 |
